Push-button, Harmony 9001K, metal, mushroom 41mm, black, 30mm, 3 positions, return to center, 1 NC late + 1 NC

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR8BH25 9001KR8BH25 785901318477
164.17 / EACH
http://schema.org/OutOfStock

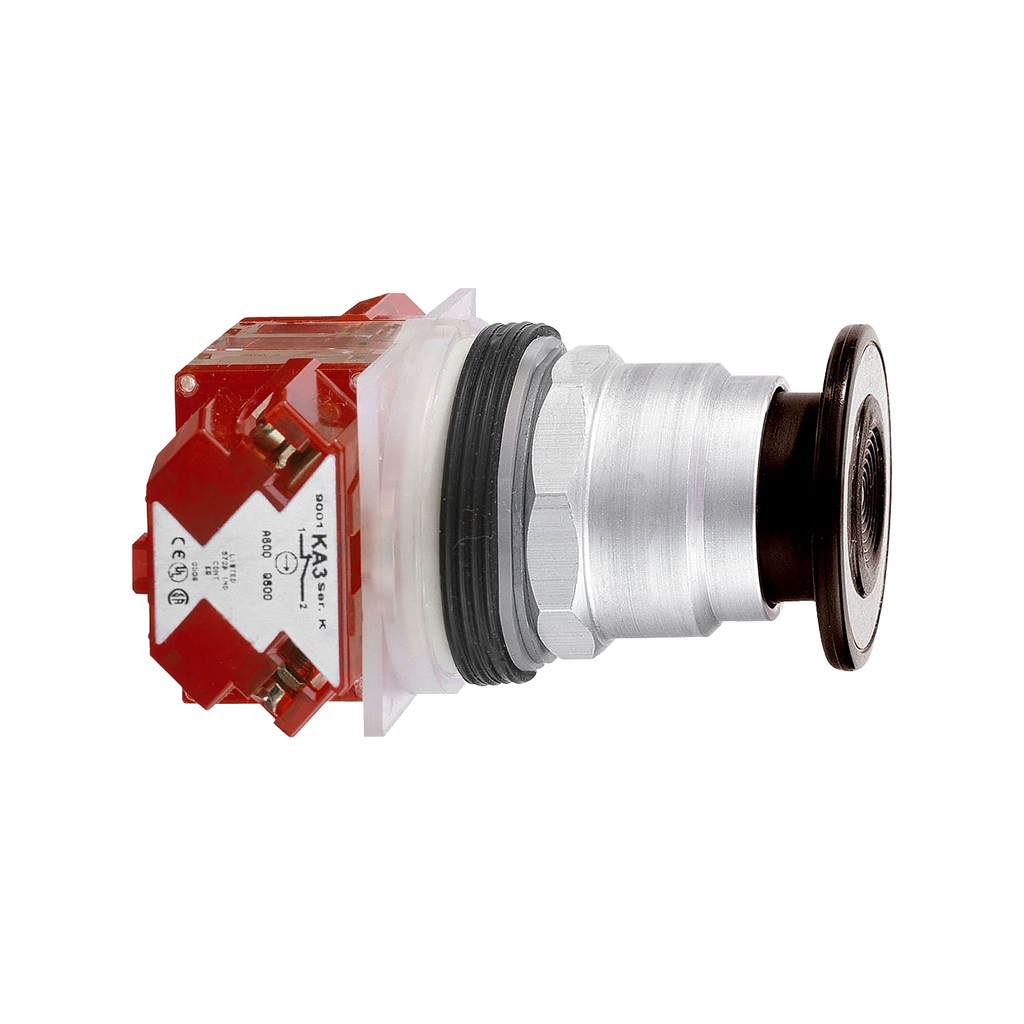

Mayer-DDS-Push-button, Harmony 9001K, metal, mushroom 41mm, black, 30mm, 3 positions, return to center, 1 NC late + 1 NC-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
This Harmony 9001K, modular black push button has 3-postions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and is supplied with contact block, 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular black push button has 3-postions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and is supplied with contact block, 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Connections Terminals
    • screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • Overvoltage Category
    • class II conforming to IEC 61140
  • IE Rated Operational Current
    • 3 A 240 V, AC-15, A600-Q600 NEMA
    • 0.55 A 125 V, DC-13, A600-Q600 NEMA
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • IEC 60947-5-1
    • IEC 60947-1
    • IEC 60947-5-4
    • JIS C 4520
    • JIS C 852
    • UL 508
    • CSA C22.2 No 14
  • ICM Rated Short Circuit Making Capacity
    • 12 kA 600 V AC-15, 7200 VA
    • 15 kA 480 V AC-15, 7200 VA
    • 30 kA 240 V AC-15, 7200 VA
    • 60 kA 120 V AC-15, 7200 VA
    • 0.1 kA 600 V DC-13
    • 0.55 kA 125 V DC-13
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
    • NEMA 6
  • UI Rated Insulation Voltage
    • 250 V 3)IEC 60947-1
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Positive Opening
    • with IEC 60947-5-2
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Tightening Torque
    • 0.8-0.8 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse IEC 60947-5-1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • black mushroom Ø 41 mm, unmarked
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • Rated Breaking Capacity
    • 3 kA 240 V AC-15, 720 VA
    • 6 kA 120 V AC-15, 720 VA
    • 1.2 kA 600 V AC-15, 720 VA
    • 1.5 kA 480 V AC-15, 720 VA
    • 0.1 kA 600 V DC-13
    • 0.27 kA 250 V DC-13
    • 0.55 kA 125 V DC-13
  • UIMP Rated Impulse Withstand Voltage
    • 2.5 kV IEC 60947-1
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-09-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Head Material : plastic
    • Mounting Diameter : 30 mm
    • Operator Position Information : 3 positions
    • Package Weight Lbs : 123.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : pull : spring return, center : stay put, push : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 10 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=473935&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
