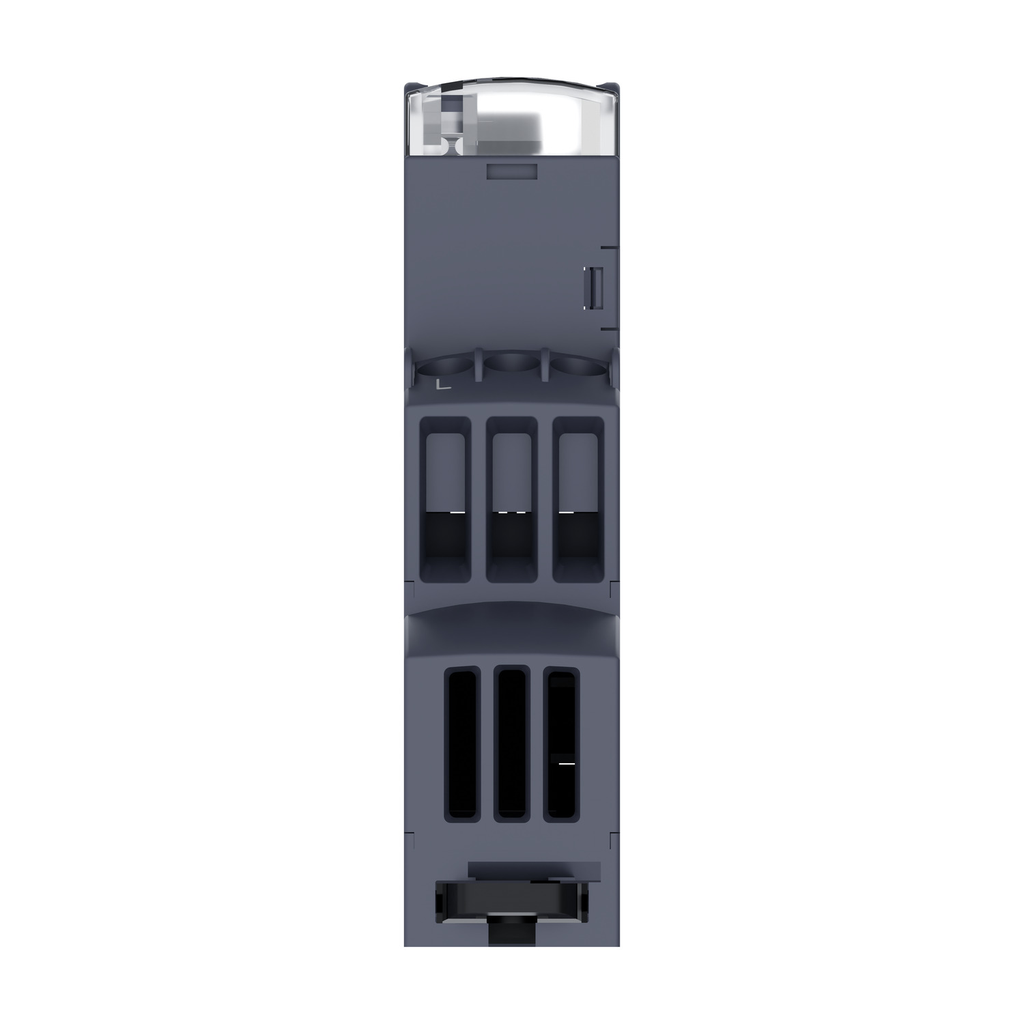

single function relay, Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC

ON-DELAY TIMER 240V 7AMP

SQDRE17LAMW RE17LAMW 3606480552625
66.76 / EA
http://schema.org/OutOfStock
Mayer-DDS-single function relay, Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC-2
  • Country of Origin: Indonesia
  • Depth: 2.83 in
  • Height: 3.54 in
  • Width: 0.69 in
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC/DC. It also has 2 changeover contacts DPDT (double pole double throw). It has one of market
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC/DC. It also has 2 changeover contacts DPDT (double pole double throw). It has one of market
  • Insulation Resistance
    • 100 MOhm 500 V DC IEC 60664-1
  • Control Type
    • selector switch front panel
  • Safety Reliability Data
    • MTTFd = 353.8 years
    • B10d = 320000
  • Connections Terminals
    • screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end
    • screw terminal
  • Mounting Support
    • 35 mm DIN rail conforming to IEC 60715
  • Uimp Rated Impulse Withstand Voltage
    • 5 kV 1.2/50 µs
  • Function Available
    • A- Power on-delay relay-1 solid state output
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0125181928
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1508879518
    • 0.2 kg CO2 eq.
  • Standards
    • 2004/108/EC
    • IEC 61000-6-1
    • 2006/95/EC
    • IEC 61000-6-3
    • IEC 61000-6-2
    • IEC 61812-1
    • IEC 61000-6-4
  • Maximum Switching Voltage
    • 250 V AC/DC
  • Ip Degree Of Protection
    • IP20 IEC 60529 terminal block)
    • IP40 IEC 60529 housing)
    • IP50 IEC 60529 front panel)
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 1.7042891566
  • Time Delay Range
    • 1...10 s
    • 10...100 h
    • 6...60 s
    • 0.1...1 s
    • 1...10 min
    • 6...60 min
    • 1...10 h
  • Mounting Position
    • any position in relation to normal vertical mounting plane
  • Time Delay Type
    • power on-delay - A- Power on-delay relay
  • Impulse Duration
    • 0.05 s typical
  • Reset Time
    • 350 ms on de-energisation typical
  • Vibration Resistance
    • 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 71 kg CO2 eq.
    • 70.8746666667
  • Electromagnetic Compatibility
    • electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2
    • electrostatic discharge
  • Supply Frequency
    • 50...60 Hz +/- 5 %
  • Relative Humidity
    • 93-93 % without condensation IEC 60068-2-30
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Us Rated Supply Voltage
    • 24...240 V AC/DC 50/60 Hz
  • Setting Accuracy Of Time Delay
    • +/- 10 % of full scale 25 °C IEC 61812-1
  • Creepage Distance
    • 4 kV/3 IEC 60664-1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0244443373
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.6-1 N.m IEC 60947-1
  • Repeat Accuracy
    • +/- 0.5 % IEC 61812-1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Shock Resistance
    • 15 gn 11 ms IEC 60068-2-27
  • Maximum Power Consumption In W
    • 1.5 W 240 V DC
  • Power Consumption In Va
    • 0-3 VA 240 V AC
  • Maximum Voltage Drop
    • <4 V 3-wire
    • <8 V 2-wire
  • Product Certifications
    • GL
    • CSA
    • cULus
  • Complementary Attributes
    • Line Rated Current : 0.7 A
    • Maximum Delay Response : 100 ms
    • Maximum Leakage Current : 5 mA
    • Maximum Output Current : 20 A
    • Minimum Switching Current : 10 mA
    • Uc Control Circuit Voltage : 24...240 V
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-07-03
    • Etim 10 : EC001439
    • Html Descr : Zelio On-Delay Timing RelayNominal Output Current: 0.7ARated Supply Voltage: 24-240V AC/DC 50/60HzTime Delay Range: 1s-100hDiscrete output type: Solid stateConnections-Terminals: Screw terminalsDegree of Protection: IP20 (termi
    • Manufacturer : Schneider Electric
    • Baan Price : 146.56
    • Baan Currency : USD
    • Manufacturing Carbon Footprint : 1.7042891566
    • Distribution Carbon Footprint : 0.0244443373
    • Installation Carbon Footprint : 0.0125181928
    • Use Carbon Footprint : 70.8746666667
    • End Of Life Carbon Footprint : 0.1508879518
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI121113EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 1243
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RE17
    • Component Name : RE17L
    • Electrical Durability : 100000000 cycles
    • Functionality : on-delay timing
    • Housing Material : self-extinguishing
    • Immunity To Microbreaks : 20 ms
    • Marking : CE
    • Number Of Functions : 1
    • On Load Factor : 100 %
    • Operating Rate In Hz : 10 Hz
    • Package Weight Lbs : 70.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : modular timing relay
    • Range Of Product : Harmony Timer Relays
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Temperature Drift : +/- 0.05 %/°C
    • Total Lifecycle Carbon Footprint : 73 kg CO2 eq.
    • Voltage Drift : +/- 0.2 %/V
    • Voltage Range : 0.85...1.1 Us
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 72.7668063052
    • Relationshiptype : SE alternative relationship
  • General Attributes
    • Product Or Component Type : modular timing relay
    • Range Of Product : Harmony Timer Relays
  • ETIM
    • ETIM 8 : EC001439
    • ETIM 9 : EC001439
  • Output Attributes
    • Discrete Output Type : solid state
    • Maximum Output Current : 20 A
    • Nominal Output Current : 0.7 A
    • Output Type : solid state
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 72.7668063052
    • Ambient Air Temperature For Operation : -20-60 °C
    • Ambient Air Temperature For Storage : -30-60 °C
    • Circularity Profile : ENVEOLI121113EN
    • Derating Factor : 5 mA/°C
    • Environmental Disclosure : ENVPEP121117EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Specifications
    • Country of Origin : Indonesia
    • Height : 3.54 in
    • Width : 0.69 in
    • Depth : 2.83 in
