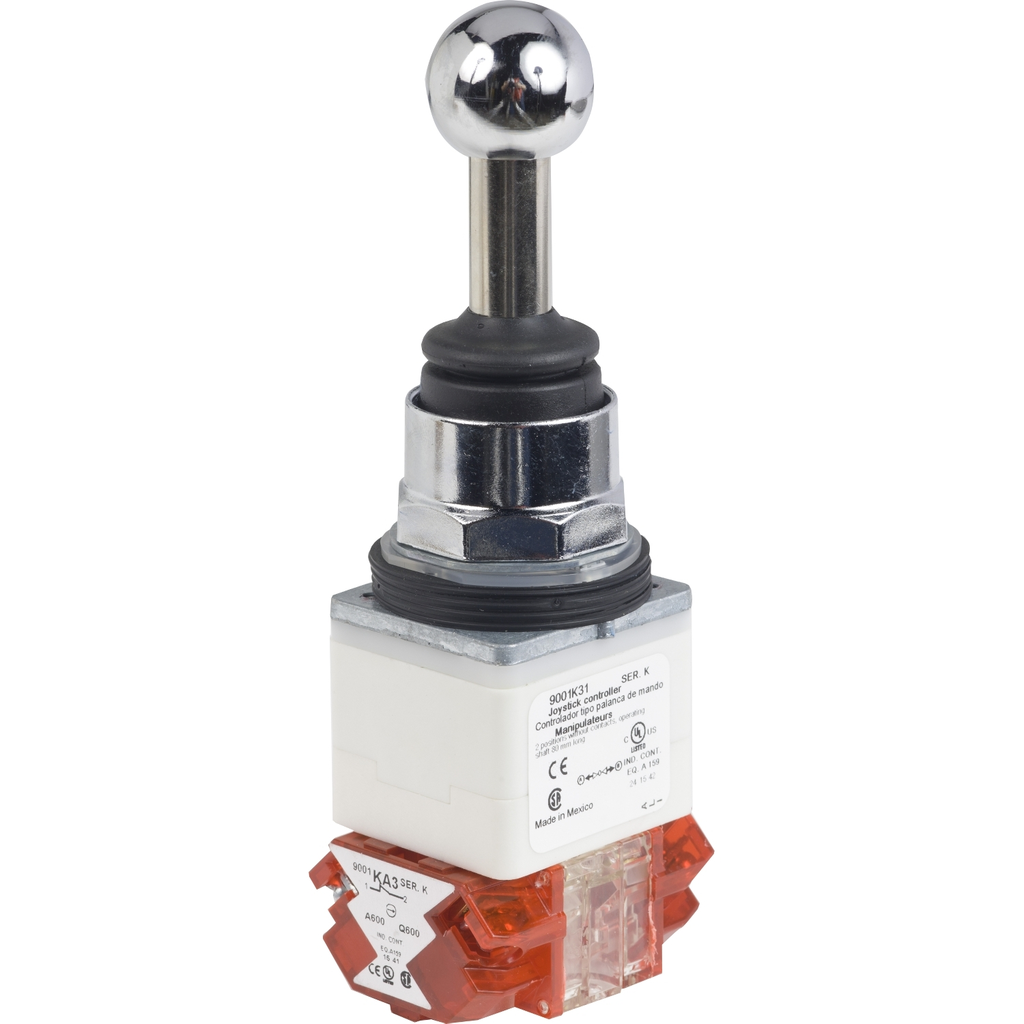

This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

• Type Of Operator
• to centre spring return
• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Overvoltage Category
• II conforming to IEC 61140
• IE Rated Operational Current
• 3 A 240 V, AC-15, A600-Q600 NEMA
• 0.55 A 125 V, DC-13, A600-Q600 NEMA
