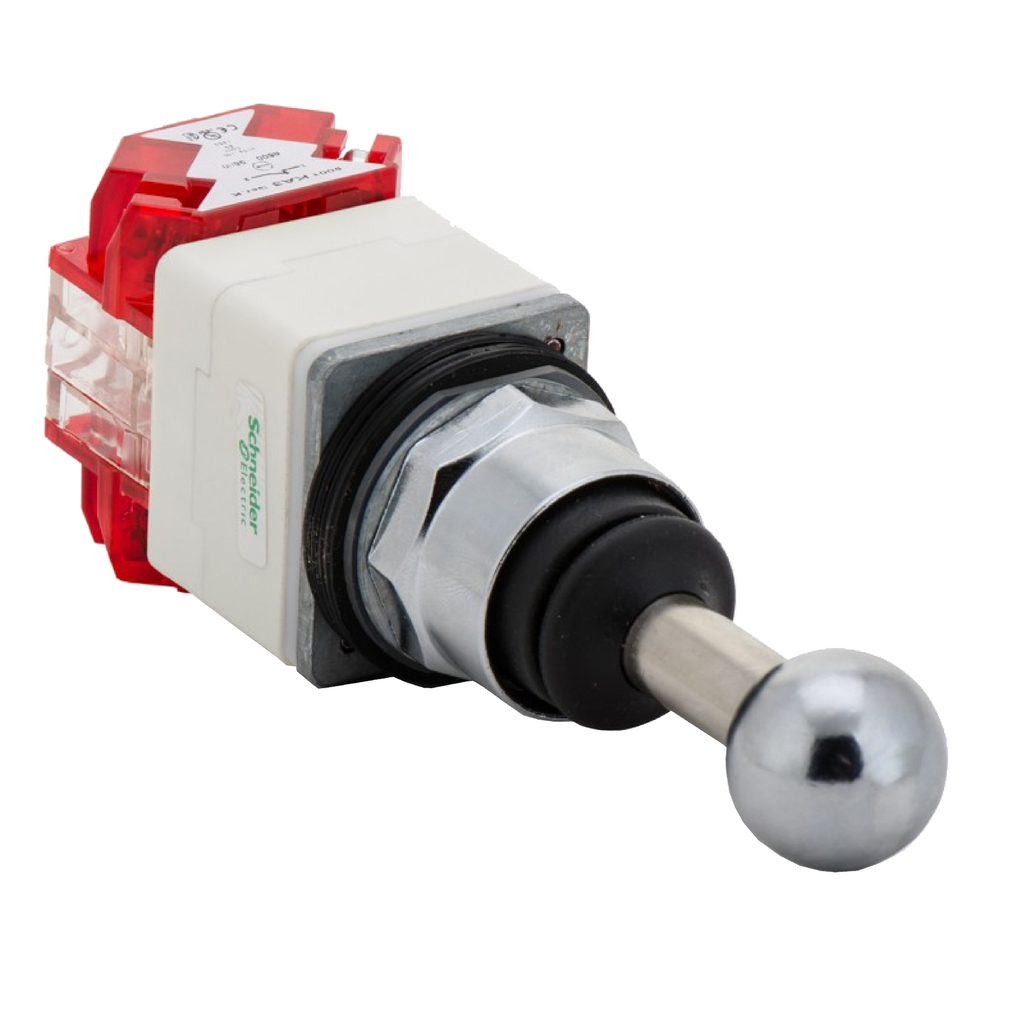

Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, spring return to center, Vertical

30MM JOYSTICK 2 POSITION

SQD9001K71 9001K71 785901236863
302.07 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, spring return to center, Vertical-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Operating Position: Horizontal
  • Warranty Length: 18 mth
This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Size : 30 mm
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Certificate Agency : NEMA, UL 508
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Compatibility Code : 9001K
    • Contacts Type And Composition : without contact block
    • Device Short Name : 9001K
    • Mounting Diameter : 30 mm
    • Operating Position : horizontal
    • Operator Direction Information : 2 directions
    • Operator Profile : 80 mm long operating shaft
    • Overvoltage Category : II conforming to IEC 61140
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for joystick controller
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Return : to centre
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : octagonal
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Sustainable Packaging : No
    • Type Of Operator : spring return
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2503027EN
    • Offer Owner Code : 190786
    • Pn : 1
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529, IP65/IP66
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for joystick controller
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000632
    • ETIM 9 : EC000632
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : basic element
