Illuminated selector switch head, Harmony 9001K, metal, long handle, amber, 30mm, 2 positions, stay put, LED yellow, 24-28V

SELECTOR SWITCH OPERATOR 30MM

SQD9001K11J35LYFA 9001K11J35LYFA 3389118043602
174.74 / EA
http://schema.org/OutOfStock

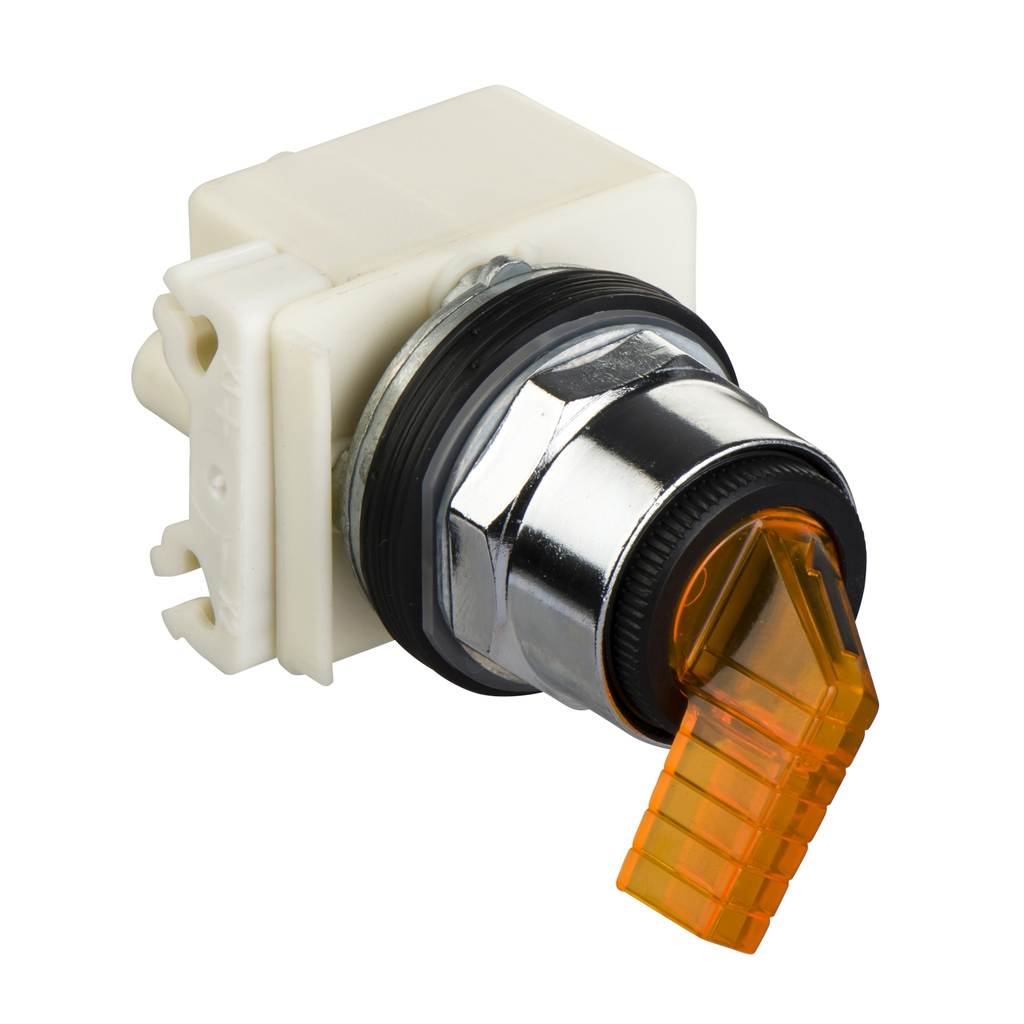

Mayer-DDS-Illuminated selector switch head, Harmony 9001K, metal, long handle, amber, 30mm, 2 positions, stay put, LED yellow, 24-28V-1
  • Bezel Material: Metal
  • Certifications: NEMA, UL 508
  • Net Weight: 0.245 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated amber selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, modular illuminated amber selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • [Us] Rated Supply Voltage : 24 V AC/DC
    • Cam Profile : 5
    • Light Source : LED
    • Light Block Supply : direct
    • Mounting Diameter : 30 mm
    • Operator Profile : long handle
    • Shape Of Signaling Unit Head : octagonal
    • Cap/Operator Or Lens Colour : amber
    • Net Weight : 0.245 kg
    • Size : 30 mm
    • Device Presentation : basic element
    • Contacts Type And Composition : without contact block
    • Bezel Material : metal
    • Product Compatibility : 9001KA2 side 1 or 2
    • Light Source Colour : yellow
    • Operator Position Information : 2 positions
    • Mechanical Durability : 500000 cycles
    • Type Of Operator : stay put
    • Light Block Colour : amber
    • Bulb Base : BA 9s
  • Specifications
    • Range Of Product : Harmony 9001K
    • Type Of Operator : stay put
    • Product Or Component Type : head for illuminated selector switch
    • Operator Profile : amber long handle
    • Device Short Name : 9001K
