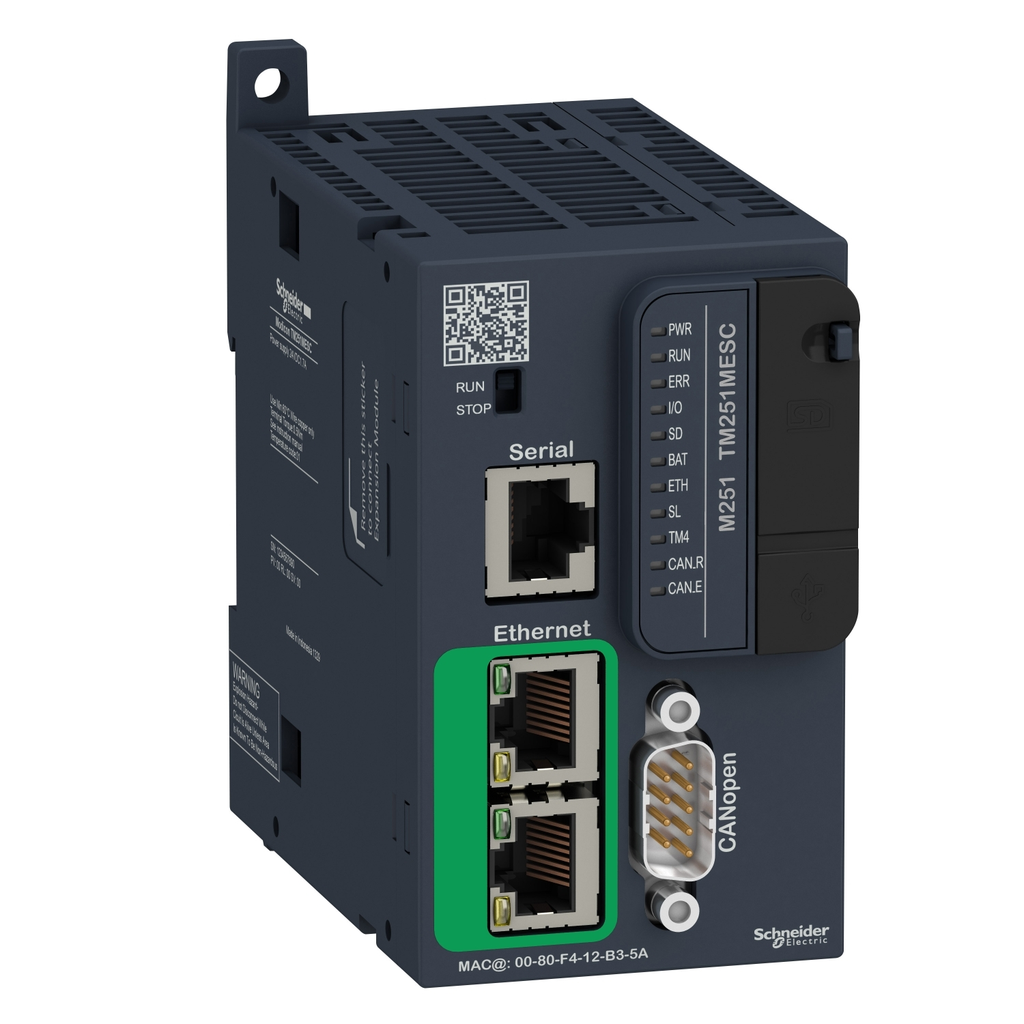

This product is part of the Modicon M251 range, an offer of logic controllers for modular and distributed architectures. This logic controller provides 7 local, 14 remote I/O expansion modules. It is a Modicon logic controller with a rated supply voltage of 24V DC, an inrush current of 50A and a power consumption of 32.6W to 40.4W. Boost the performance of machine with powerful data transfer via SD Card, embedded web and FTP server and more. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial with RJ45 connector and RS232/RS485 interface, dual-port Ethernet with RJ45 connector and CANopen J1939 with 9-way D-Sub (DE-09) connector. It is a Modicon M251 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 32GB. It is an IP20 rated product. Its dimensions are 54mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.22kg. The Modicon M251 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, CSA and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M251 through intuitive machine programming with SoMachine, ready-to-use applications and function blocks. Increase flexibility, while saving space in your cabinet with the Modicon M251 logic controller for modular and distributed architectures.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Inrush Current : 50 A
• Port Ethernet : Ethernet 10BASE-T/100BASE-TX - 2 copper cable
• Clock Drift : <= 60 s/month 25-25 °C
• Battery Type : BR2032 lithium non-rechargeable 4 year(s)
• Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
• Net Weight : 0.22 kg
• Integrated Connection Type : USB port mini B USB 2.0 || non isolated serial link serial RJ45 RS232/RS485 || dual-port Ethernet RJ45 || CANopen J1939 SUB-D 9
• Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
• Local Signalling : 1 LED (green) for PWR || 1 LED (green) for RUN || 1 LED (red) for module error (ERR) || 1 LED (red) for I/O error (I/O) || 1 LED (green) for SD card access (SD) || 1 LED (red) for BAT || 1 LED (green) for Ethernet port activity || 1 LED (green) for SL || 1 LED (red) for bus fault on TM4 (TM4) || 1 LED (green) for CANopen run || 1 LED (green) for CANopen error
• Width : 54 mm
• Maximum Number Of Connections : 8 Modbus server || 8 Modbus client || 16 Ethernet/IP target || 4 FTP server || 10 web server || 8 SoMachine protocol
• Depth : 95 mm
• Data Backed Up : 128 MB built-in flash memory backup of user programs
• Electrical Connection : removable screw terminal block power supply pitch 5.08 mm)
• Height : 90 mm
• Canopen Feature Profile : DR 303-1 || DS 301 V4.02
• Power Consumption In W : 32.6-40.4 W with max number of I/O expansion module)
• Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
• Communication Port Protocol : USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
• Marking : CE
• Backup Time : 2 years 25 °C
• Application Structure : 3 cyclic master tasks + 1 freewheeling task || 8 event tasks || 4 cyclic master tasks || 8 external event tasks
• Memory Capacity : 64 MB system memory RAM
• Supply Voltage Limits : 20.4-28.8 V
• Communication Service : DHCP client || downloading || Ethernet/IP slave device || IEC VAR ACCESS || Modbus TCP client || Modbus TCP server || Modbus TCP slave device || monitoring || NGVL || programming || updating firmware || SMS notifications || FTP client/server || SNMP client/server || SQL client || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client
• Surge Withstand : 1 kV shielded cable common mode IEC 61000-4-5 || 1 kV power lines common mode IEC 61000-4-5 || 0.5 kV power lines differential mode IEC 61000-4-5
• Execution Time For 1 Kinstruction : 0.3 ms event and periodic task || 0.7 ms other instruction
• Realtime Clock : with
• Web Services : web server
• Number Of Server Device(S) : 63 CANopen
• Data Storage Equipment : <= 16 GB SD card optional)
• Insulation : non-insulated between supply and internal logic || between supply and ground 500 V AC
• Supply : serial)serial link supply 5 V, <200 mA
• Environment
• Product Certifications : cULus || CE || UKCA || DNV-GL || ABS || LR
• Storage Altitude : 0-3000 m
• Shock Resistance : 15 gn 11 ms
• Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
• Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
• Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
• Immunity To Microbreaks : 10 ms
• Standards : ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
• Pollution Degree : 2
• Ambient Air Temperature For Operation : -10-35 °C vertical installation) || -10-55 °C horizontal installation)
• Ambient Air Temperature For Storage : -25-70 °C
• Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
• Ip Degree Of Protection : IP20 with protective cover in place
• Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
• Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
• Environmental data
• Mercury Free : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Take-Back : No
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 17.45167876088961
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 697 kg CO2 eq.
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 696.5809191645876
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1401009EN
• Packaging Without Single Use Plastic : Yes
• Scip Number : c0f4b1e4-ee0f-48bb-9bdf-1bcc0df7db56
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase [A5] : 0.02085945239080871
• Circularity Profile : ENVEOLI1401009EN
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 676.3289711229977
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.7 kg CO2 eq.
• Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
• Pvc Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Specifications
• Country of Origin : Indonesia
• Width : 54 mm
• Height : 90 mm
• Weight : 0.22 kg
• Product Or Component Type : logic controller
• Range Of Product : Modicon M251
• [Us] Rated Supply Voltage : 24 V DC
