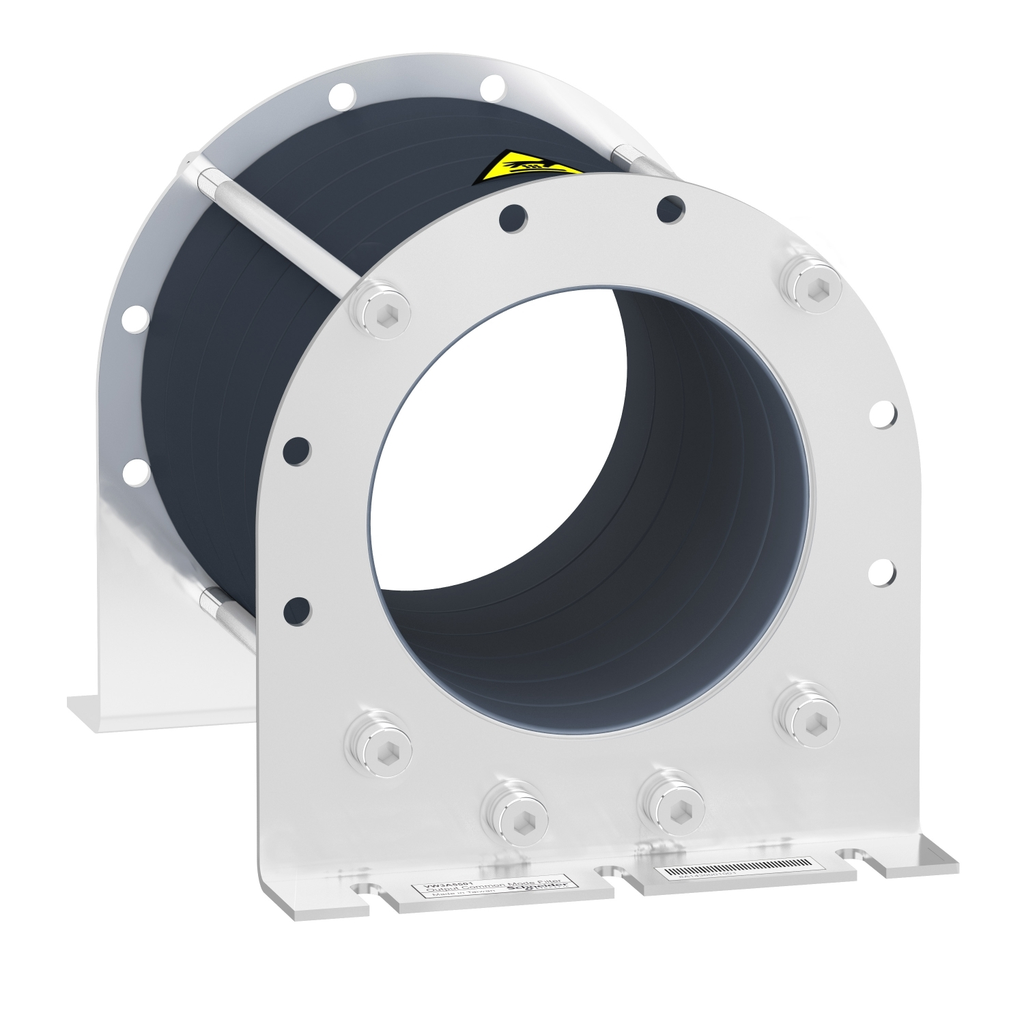

common mode filter for bearing current reduction - 274.8 µH

COMMON MODE FILTER ATVP SIZE 6

SQDVW3A5506 VW3A5506 3606485435817
4404.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-common mode filter for bearing current reduction - 274.8 µH-1
  • Country of Origin: Thailand
  • Depth: 196 mm
  • Diameter: 123.9 mm
  • Height: 256 mm
  • Net Weight: 8.3 kg
  • Weight: 8.3 kg
  • Width: 191 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Mechanical Robustness : shocks class 3M4 IEC 60721-3-3 || vibrations class 3M4 IEC 60721-3-3
    • Maximum Output Frequency : 100 Hz
    • Height : 256 mm
    • Switching Frequency : <= 10 kHz
    • Maximum Motor Cable Length : 150 m(shielded cable)130-160 kW 380...480 V 1 || 500 m(shielded cable)55-55 kW 200...240 V 1 VW3A5505 || 500 m(shielded cable)75-75 kW 200...240 V 2 || 1000 m(unshielded cable)55-75 kW 200...240 V 2 || 300 m(unshielded cable)110-160 kW 380...480 V 1 || 300 m(shielded cable)110-110 kW 380...480 V 1 || 500 m(shielded cable)110-110 kW 380...480 V 1 VW3A5505 || 500 m(shielded cable)130-160 kW 380...480 V 2 || 1000 m(unshielded cable)110-160 kW 380...480 V 2 || 150 m(shielded cable)75-75 kW 200...240 V 1 || 300 m(unshielded cable)55-75 kW 200...240 V 1 || 300 m(shielded cable)55-55 kW 200...240 V 1
    • Net Weight : 8.3 kg
    • Electrical Insulation Class : class I
    • Saturation Current : 3.6 A
    • Width : 191 mm
    • Depth : 196 mm
    • Diameter : 123.9 mm 3-phase cable inside || 123.9 mm PE cable outside
  • Specifications
    • Country of Origin : Thailand
    • Width : 191 mm
    • Height : 256 mm
    • Weight : 8.3 kg
    • Product Or Component Type : common mode output filter
    • Value Of Inductance : 274.8 µH
    • Product Compatibility : variable speed drive ATV630 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV650 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV930 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV950 wall mount, 110-160 kW, 380...480 V || variable speed drive ATV630 wall mount, 55-75 kW, 380...480 V || variable speed drive ATV930 wall mount, 55-75 kW, 380...480 V
    • Range Compatibility : Altivar Process ATV600 || Altivar Process ATV900
  • Environment
    • Ambient Air Temperature For Operation : -15-60 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 5-95 % without condensation
