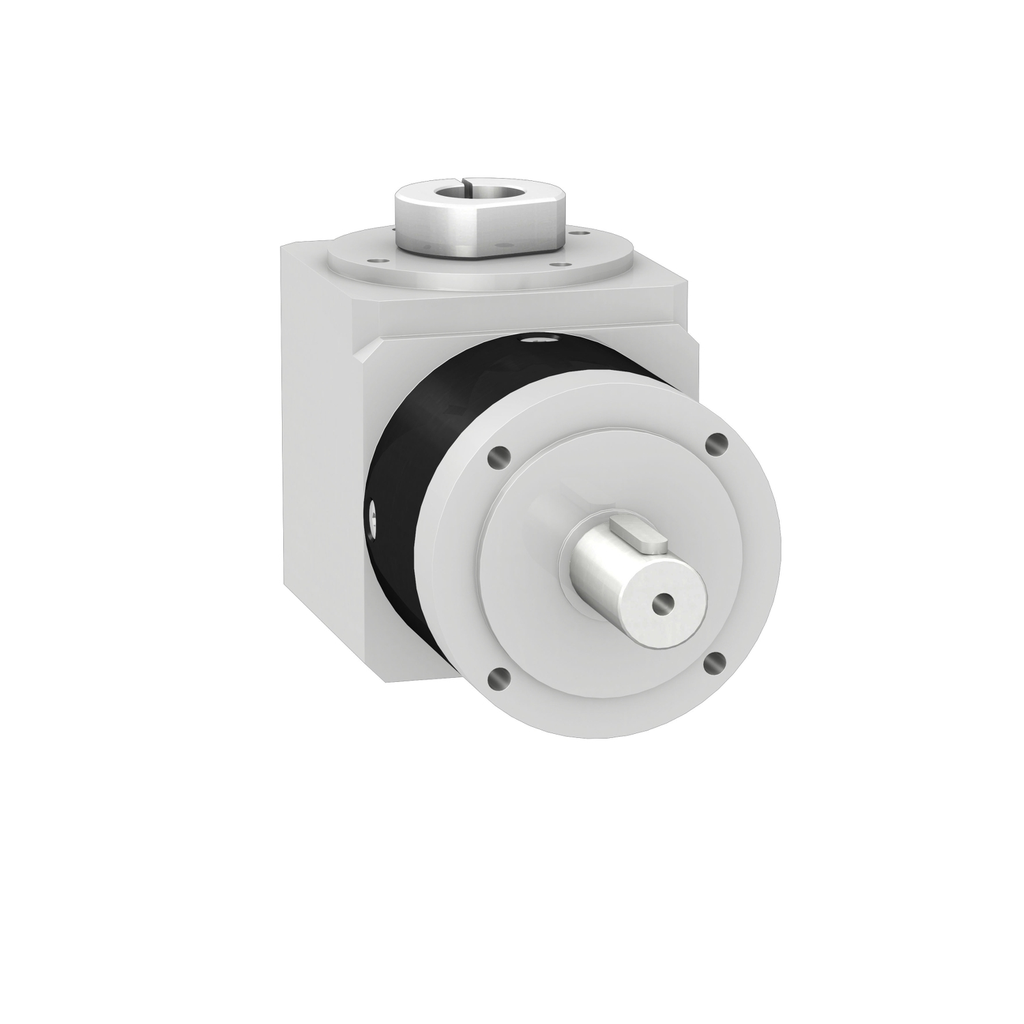

angular gearbox straight teeth GBY, Lexium, 80mm, reduction 25:1, 15arc.min, 110N.m

ANGULAR PLANETARY GEARBOX 80MM

SQDGBY080025K GBY080025K 3606485312347
1792.83 / EA
http://schema.org/OutOfStock
angular gearbox straight teeth GBY, Lexium, 80mm, reduction 25:1, 15arc.min, 110N.m
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Housing Color : black
  • Complementary Attributes
    • Minimum Operational Altitude : -25.0 m, -25.0 m
    • Maximum Axial Force Fa : 900 N 100 rpm, during 30000 hour at 30°C
    • Maximum Operational Altitude : 90.0 m
    • Maximum Output Torque : 176 N.m 100 rpm 30 °C
    • Maximum Permitted Torque : 107.0 N.m
    • Maximum Radial Force Fr : 650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
    • Maximum Revolution Speed : 7000.0 rpm
    • Maximum Torsional Backlash : 15 arc.min
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Minimum Operational Altitude : -25.0 m, -25.0 m
    • Reduction Ratio : 25, 25:1
    • Reduction Ratio Per Size : 3:1, 4:1, 5:1, 8:1, 12:1, 20:1, 25:1, 40:1
    • Carbon Footprint Of The Distribution Phase A4 : 0.6451149425, 0.6 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.4467852011
    • Carbon Footprint Of The Installation Phase A5 : 0.0126560704, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 20 kg CO2 eq., 20.158045977
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 159 kg CO2 eq., 1158.8
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Serviceability : No
    • Traceability : No
    • Use Carbon Footprint : 1158.8
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1901
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Compatibility Code : GBY
    • Continuous Stall Torque : 67.0 N.m
    • Device Short Name : GBY
    • Efficiency : 94.0 %
    • Gear Box Type : straight teeth
    • Gearbox External Diameter : 80 mm
    • Housing Material : black anodized aluminium
    • Internal Diameter : 19.0 mm
    • Maximum Operational Altitude : 90.0 m
    • Maximum Permitted Torque : 107.0 N.m
    • Maximum Revolution Speed : 7000.0 rpm
    • Mounting Position : any position
    • No Load Running Torque : 0.1 N.m
    • Noise Level : 73 dB 1 m, no-load
    • Nominal Speed : 3800 rpm
    • Peak Stall Torque : 107.0 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : angular planetary gearbox
    • Returnability : No
    • Service Life In Hours : 30000 h 100 rpm 30 °C
    • Shaft Material : C 45
    • Shaft Moment Of Inertia : 0.973 kg.cm²
    • Software Version : EIME v5.8.1
    • Static Torque : 0.35 N.m
    • Sustainable Packaging : No
    • Torsional Rigidity : 6.5 N.m/arcmin
    • Total Lifecycle Carbon Footprint : 1 180 kg CO2 eq.
    • Housing Color : black
    • Warranty In Months : 18
    • Pep Code : ENVPEP111245EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-07-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 5000
    • Reference Lifetime In Y2 : 10
    • Energy Consumption On Product Lifetime In Kwh : 2365.2
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Germany
    • Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Offer Owner Code : 190786
    • Length Total : 161.5 mm
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 13153.5
    • Net Use Of Fresh Water M3 Operational Energy Use B6 2 : 4201.7
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 : 4320.55
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 2 : 2.8855
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 20201
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 23144
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 2943
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 20201
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 2943
    • Air Pollution M3 Operational Energy Use B6 2 : 49875.5
    • Water Pollution M3 Operational Energy Use B6 2 : 47817.5
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 2 : 1158.8
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Product Compatibility : BSH 70 mm, 2, BSH 70 mm, 3, BMH 70 mm, 1, BMH 70 mm, 2, BMH 70 mm, 3, BSH 70 mm, 1, SH3, MH3, ILM
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 1180.0626021911
    • Ambient Air Temperature For Operation : -25-90 °C
    • Environmental Disclosure : ENVPEP111245EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : shaft output IP54
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111245EN
    • Pep Verification Date : 2020-07-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : angular planetary gearbox
  • ETIM
    • ETIM 8 : EC002584
    • ETIM 9 : EC002584
  • Output Attributes
    • Continuous Output Torque : 110 N.m 100 rpm 30 °C
    • Maximum Output Torque : 176 N.m 100 rpm 30 °C
  • Input Attributes
    • Efficiency : 94.0 %
  • Batteries & Runtime Attributes
    • Additional Information : lubricated for life
