Push-button, Harmony 9001SK, plastic, projecting, 7 colours choice, 30mm, spring return, 1 NO

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR3UH5 9001SKR3UH5 785901843702
78.47 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001SK, plastic, projecting, 7 colours choice, 30mm, spring return, 1 NO-1
  • Bezel Material: Plastic
  • Operating Position: Any Position
  • Warranty Length: 18 mth

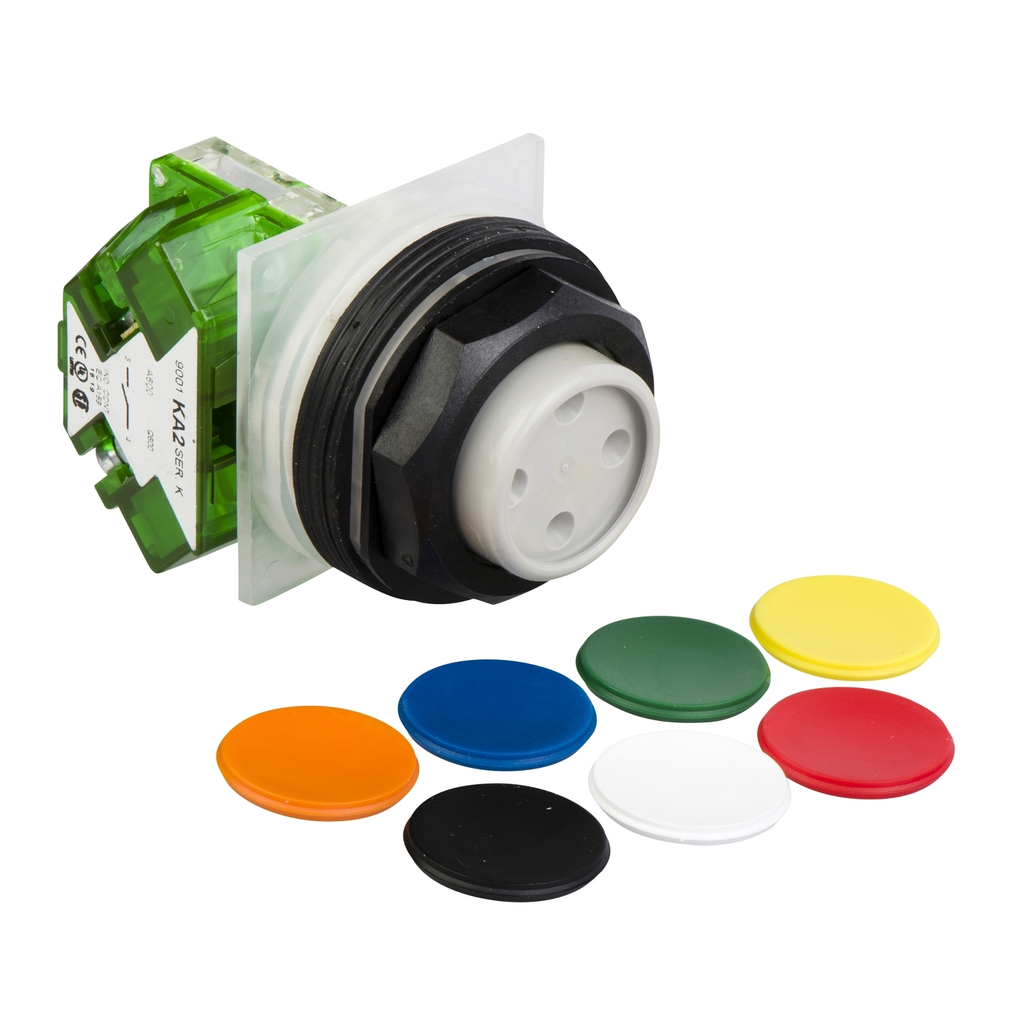

This Harmony 9001SK, modular recessed push button with extended guard and set of 7 color caps operates with spring return mechanism. It has a double insulated plastic bezel and 1 x NO contact. This recessed push button with extended guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular recessed push button with extended guard and set of 7 color caps operates with spring return mechanism. It has a double insulated plastic bezel and 1 x NO contact. This recessed push button with extended guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : 7 colours choice
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : NEMA, UL 508
    • Standards : IEC 60947-1, IEC 60947-5-4, JIS C 852, IEC 60947-5-1, CSA C22.2 No 14, JIS C 4520
  • Complementary Attributes
    • Rated Breaking Capacity : 3 kA 120 V AC-15, 720 VA, 1.2 kA 480 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 240 V AC-15, 720 VA, 0.55 kA 125 V DC-13, 0.27 kA 600 V DC-13, 0.55 kA 250 V DC-13
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Operator Profile : projecting, 7 colours choice projecting, unmarked
    • Icm Rated Short Circuit Making Capacity2 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
    • Ie Rated Operational Current2 : 3 A 240 V, AC-15, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600
    • Icm Rated Short Circuit Making Capacity5 : 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
    • Ie Rated Operational Current5 : 3 A 240 V, AC-15, A600-Q600, 0.55 A 125 V, DC-13, A600-Q600
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Cap Operator Or Lens Color : 7 colours choice
    • Compatibility Code : 9001SK
    • Contact Operation : standard
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 NO
    • Device Short Name : 9001SK
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : without guard
    • Package Weight Lbs : 226.796 g
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : octagonal
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Type Of Operator : spring return
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 10 A
    • Ui Rated Insulation Voltage2 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 2.5 kV IEC 60947-1
    • Connections Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Medium Desc : Push-button, Harmony 9001SK, plastic, projecting, 7 colours choice, 30mm, spring return, 1 NO
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Ith Conventional Free Air Thermal Current5 : 10 A
    • Ui Rated Insulation Voltage5 : 250 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 2.5 kV IEC 60947-1
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP65/IP66
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001SK
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
