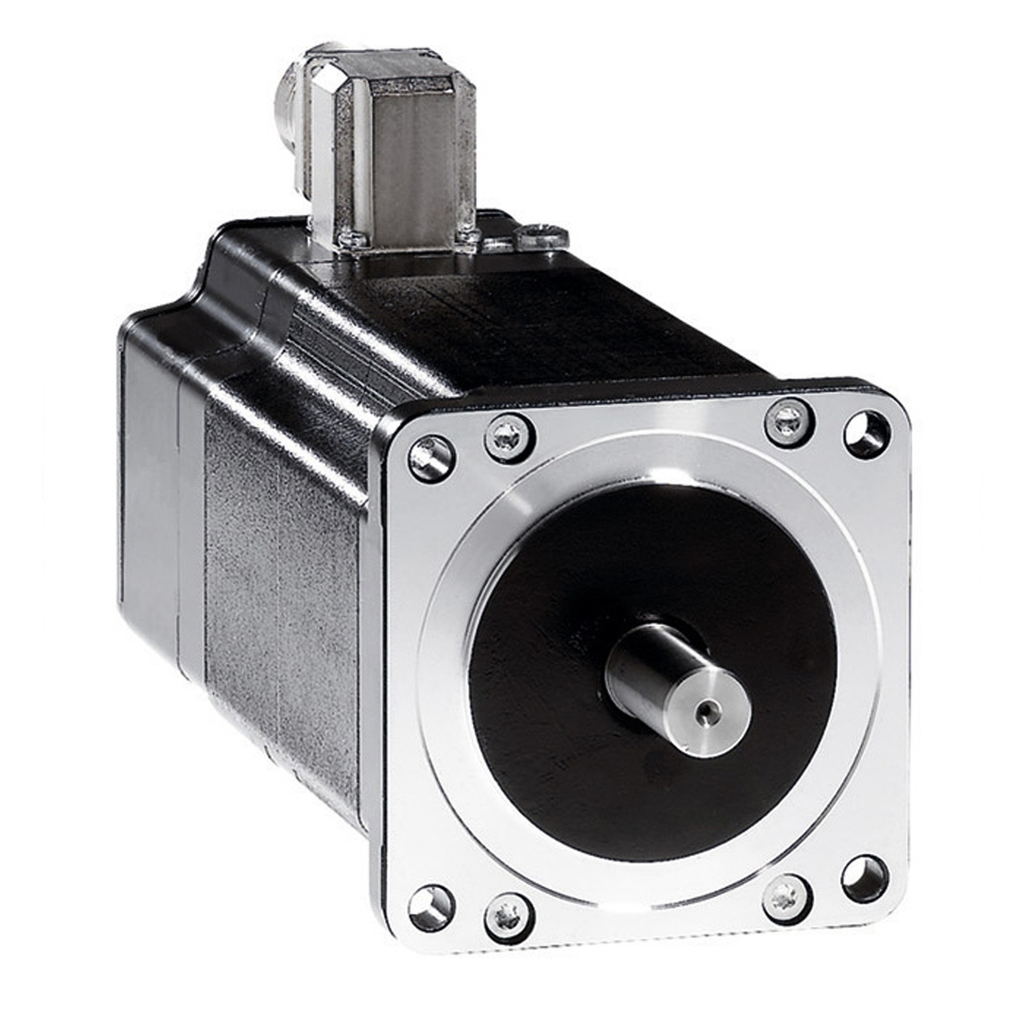

3-phase stepper motor - 4.52Nm - shaft Ã˜ 9.5mm - L=98 mm - w/o brake - term box

Name: 3-phase stepper motor - 4.52Nm - shaft Ã˜ 9.5mm - L=98 mm - w/o brake - term box
Brand: Mayer Electric Supply
SKU: SQDBRS39AW270ABA
Price: 749.44 USD
Availability: OutOfStock

SQDBRS39AW270ABA BRS39AW270ABA 3389119223829

749.44 / EA

http://schema.org/OutOfStock

Mayer-DDS-3-phase stepper motor - 4.52Nm - shaft Ã˜ 9.5mm - L=98 mm - w/o brake - term box-1

Country of Origin: Germany
Length: 5.55 in
Motor Type: 3-phase Stepper Motor
Shaft Diameter: 9.5 mm
Shaft End: Untapped
Shaft Length: 30 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Supply Voltage Description

single phase 115 V AC
single phase 230 V AC

Resolution

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle
200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
200, 400, 500, 1000

Supply Voltage Limits

230-230 V AC
325-325 V DC

IP Degree Of Protection

IP41 shaft bushing: conforming to IEC 60034-5
IP56 total except shaft bushing: conforming to IEC 60034-5
IP56 total except shaft bushing: conforming to IEC 60034-

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.4 kg CO2 eq.
0.39505278

Carbon Footprint Of The Manufacturing Phase A1 To A3

15 kg CO2 eq.
15.1376316089

Vibration Resistance

20 m/s² maximum
A IEC 60034-14

Maximum Radial Force FR

100 N first shaft end)
50 N second shaft end)

Maximum Axial Force FA

175 N tensile force)
30 N force pressure)

Carbon Footprint Of The Use Phase B2 B3 B4 B6

1 272 kg CO2 eq.
1271.8216767123

Relative Humidity

15-85 % without condensation

Service Life In Hours

20000 h bearing)

Carbon Footprint Of The Distribution Phase A4

0.5333776578
0.5 kg CO2 eq.

Operating Altitude

<= 3280.84 ft (1000 m) without power derating

Temperature Class

F winding IEC 60034-1

Resistance

5.8 Ohm winding)

Physical Attributes

Motor Flange Size : 85 mm
Shaft Length : 30 mm

Complementary Attributes

Maximum Mechanical Speed : 3000 rpm
Maximum Starting Frequency : 5.3 kHz

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-04-06
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 15.1376316089
Distribution Carbon Footprint : 0.5333776578
Installation Carbon Footprint : 0
Use Carbon Footprint : 1271.8216767123
End Of Life Carbon Footprint : 0.39505278
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Return Indicator : N
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Centring Collar Diameter : 73 mm
Circle Diameter Of The Mounting Holes : 98.99 mm
Coefficient 1 0 : -218.6513 N.m
Coefficient 1 1 : 225.1427 N.m/rpm
Coefficient 1 2 : -74.6639 N.m/rpm²
Coefficient 1 3 : 8.0714 N.m/rpm3
Coefficient 2 0 : -218.6513 N.m
Coefficient 2 1 : 225.1427 N.m/rpm
Coefficient 2 2 : -74.6639 N.m/rpm²
Coefficient 2 3 : 8.0714 N.m/rpm3
Coefficient M0 : 0.00038 N.m/rpm
Coefficient M0 Max : 0.00038 N.m/rpm
Curve Type : semilog
Device Short Name : BRS3
Holding Brake : without
Mounting Holes Diameter : 6.5 mm
Number Of Motor Poles : 6
Package Weight Lbs : 4.134 kg
Peak Stall Torque : 3.82 N.m
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : motion control motor
Returnability : No
Rotor Inertia : 2.2 kg.cm²
Second Shaft : without second shaft end
Shaft Diameter : 9.5 mm
Shaft End : untapped
Sizing Reference : BRS39A
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 1 288 kg CO2 eq.
Voltage 1 : 115 V
Voltage 1 Speed 1 : 623.268857857552 rpm
Voltage 1 Speed 1 Max : 623.268857857552 rpm
Voltage 2 : 230 V
Voltage 2 Speed 2 : 623.268857857552 rpm
Voltage 2 Speed 2 Max : 623.268857857552 rpm
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Carbon Footprint Kg Co2 Eq Total Life Cycle : 1287.8877387589
Relationship Type : Compatible relationship
Pep Code : ENVPEP111101EN
Pep Verification Date : 2020-07-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 4134
Functional Unit Description : Coordinate and synchronize motion control up to 80W during 10 years and a 70% use rate.
Functional Unit Quantity : 1
Functional Unit Unit : unit
