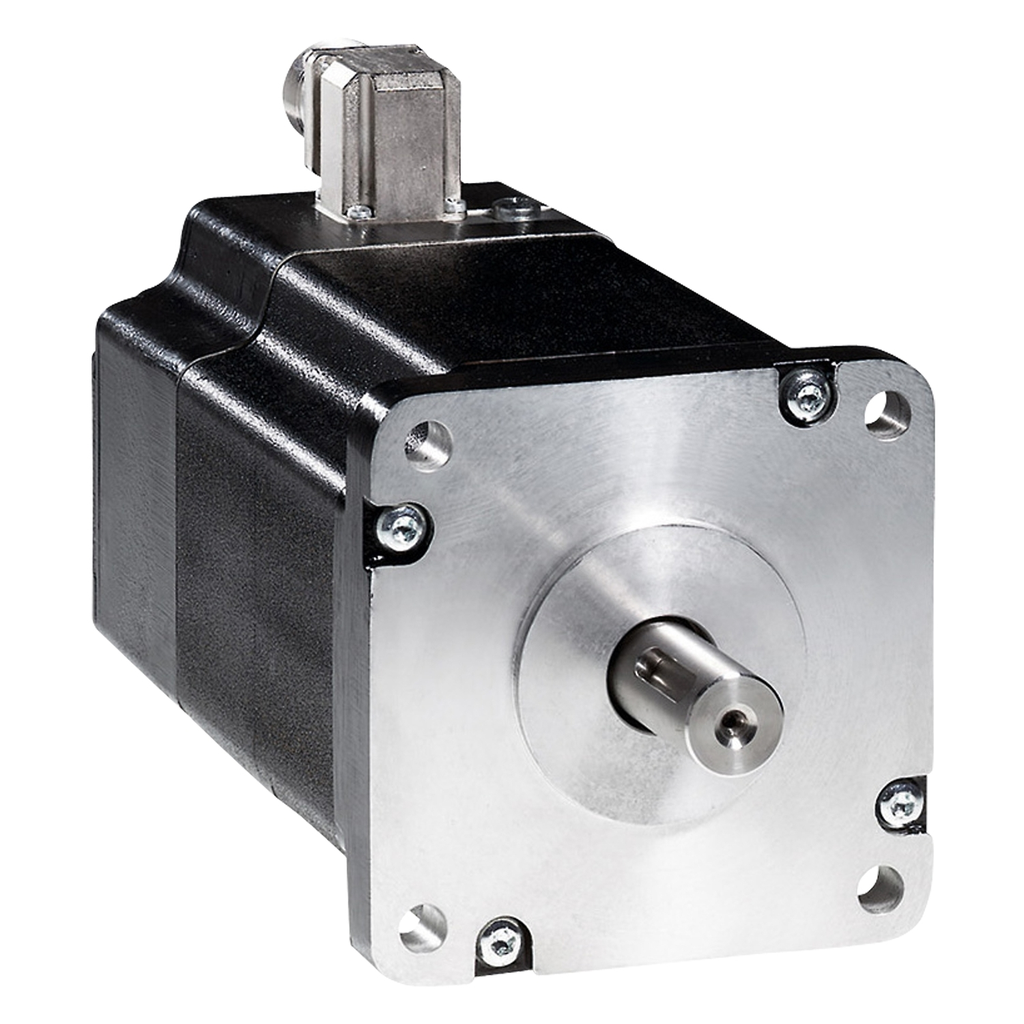

3-phase stepper motor - 19.7 Nm - shaft Ø19mm - L=230mm - w/o brake - term box

motor 110mm 19.7Nm, terminal

SQDBRS3ADW850ABA BRS3ADW850ABA 785901928508
971.77 / EA
  • Length: 228 mm
  • Line Rated Current: 4.75 A
  • Mounting Hole Size: 125.86 mm, 9 mm
  • Net Weight: 11.2 kg
  • Number of Holes: 4
  • Number of Poles: 6
  • Resistance: 1.9 ohm
  • Shaft Length: 40 mm
  • Standard: EN 50347, IEC 60072-1
  • Storage Temperature: -25-70 °C
  • Warranty Length: 18 mth
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 6-pole stepper motor with 19mm parallel key shaft, centering collar of 56mm, without holding brake and second shaft end. It is a 3-phase stepper motor with a rated current of 4.75A, a mechanical speed of 3000RPM and a supply voltage of 230V AC, 325V DC. It is furnished with terminal box for electrical connection. The shaft dimensions are 19mm (diameter) x 40mm (length). It offers service life of about 20,000 hours (bearing). It is an IP41 and IP56 rated product. Its dimensions are 228mm (length) and the centering collar dimensions are 3mm (depth) x 56mm (diameter) with 125.86mm mounting hole. It weighs 11.2kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. It meets EN 50347 and IEC 60072-1 standards. This stepper motor is compatible with Lexium SD3 motor drives. It supports 110mm flange mount with a natural convection cooling system. It has 4 mounting holes with 9mm diameter. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
  • Product Description
  • Specifications
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 6-pole stepper motor with 19mm parallel key shaft, centering collar of 56mm, without holding brake and second shaft end. It is a 3-phase stepper motor with a rated current of 4.75A, a mechanical speed of 3000RPM and a supply voltage of 230V AC, 325V DC. It is furnished with terminal box for electrical connection. The shaft dimensions are 19mm (diameter) x 40mm (length). It offers service life of about 20,000 hours (bearing). It is an IP41 and IP56 rated product. Its dimensions are 228mm (length) and the centering collar dimensions are 3mm (depth) x 56mm (diameter) with 125.86mm mounting hole. It weighs 11.2kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. It meets EN 50347 and IEC 60072-1 standards. This stepper motor is compatible with Lexium SD3 motor drives. It supports 110mm flange mount with a natural convection cooling system. It has 4 mounting holes with 9mm diameter. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
  • Specifications
    • Maximum Mechanical Speed : 3000 rpm
    • Mounting Support : flange
    • Number Of Motor Poles : 6
    • Product Or Component Type : motion control motor
    • Length : 228 mm
    • Centring Collar Diameter : 56 mm
    • Motor Flange Size : 110 mm
    • Motor Type : 3-phase stepper motor
    • Supply Voltage Limits : 230-230 V AC || 325-325 V DC
    • Range Compatibility : Lexium SD3
    • Device Short Name : BRS3
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Circle Diameter Of The Mounting Holes : 125.86 mm
    • Maximum Radial Force Fr : 150 N second shaft end) || 300 N first shaft end)
    • Nominal Torque : 16.5 N.m
    • Rotor Inertia : 16 kg.cm²
    • Continuous Stall Torque : 16.45 N.m
    • Centring Collar Depth : 3 mm
    • Holding Brake : without
    • Second Shaft : without second shaft end
    • Shaft Length : 40 mm
    • Net Weight : 11.2 kg
    • Resolution : 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
    • Angular Acceleration : 200000 rad/s²
    • Maximum Starting Frequency : 4.7 kHz
    • Time Constant : 22 ms
    • Peak Stall Torque : 16.45 N.m
    • Number Of Mounting Holes : 4
    • Holding Torque : 19.7 N.m
    • Shaft Diameter : 19 mm
    • Mounting Holes Diameter : 9 mm
    • Service Life In Hours : 20000 h bearing)
    • Resistance : 1.9 Ohm winding)
    • Shaft End : parallel key
    • Electrical Connection : terminal box
    • Line Rated Current : 4.75 A
    • Accuracy Error : +/- 6 arc min
    • Maximum Axial Force Fa : 330 N tensile force) || 60 N force pressure)
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111101EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Ambient Air Temperature For Operation : -25-40 °C
    • Standards : IEC 60072-1 || EN 50347
    • Temperature Class : F winding IEC/EN 60034-1
    • Vibration Resistance : 20 m/s² maximum || A EN/IEC 60034-14
    • Ambient Air Temperature For Storage : -25-70 °C
    • Type Of Cooling : natural convection
    • Relative Humidity : 15-85 % without condensation
    • Ip Degree Of Protection : shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP56 EN/IEC 60034-5
    • Operating Altitude : <= 3280.84 ft (1000 m) without power derating
