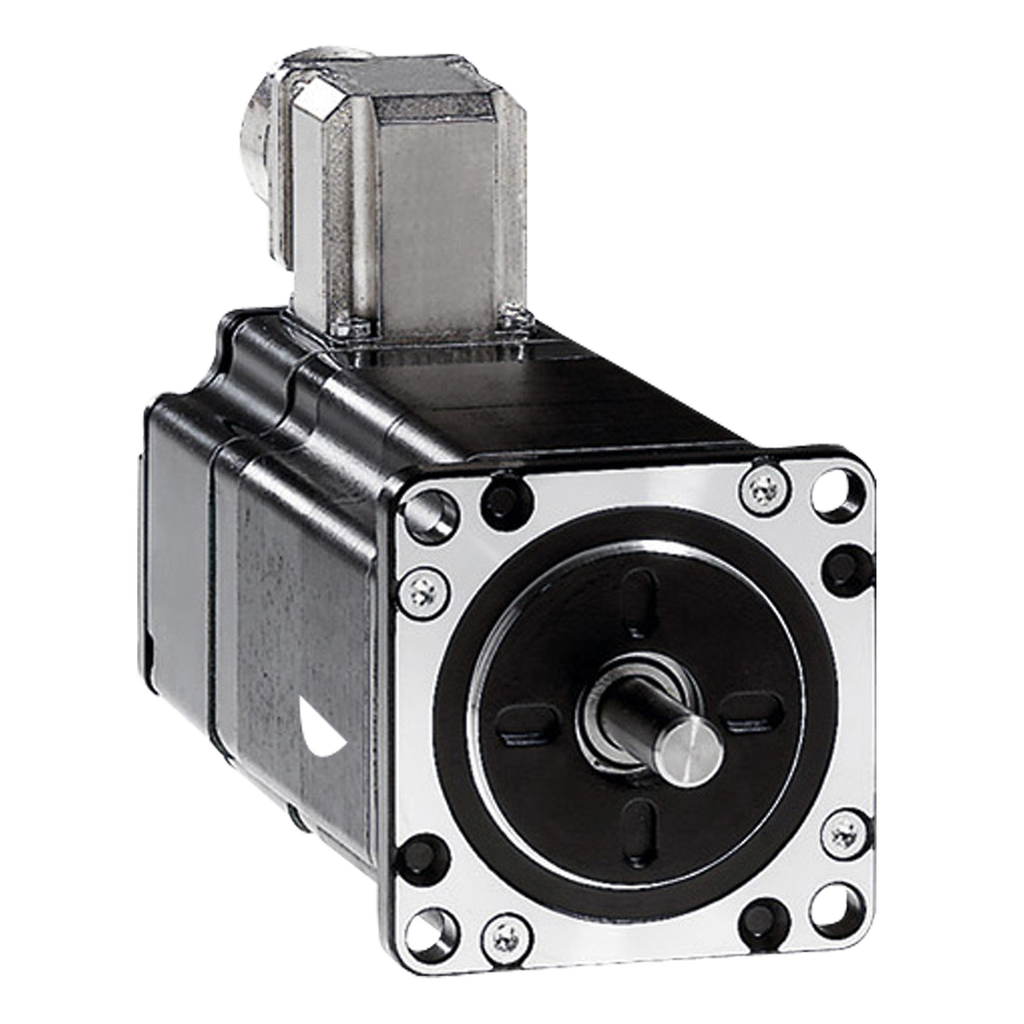

3-phase stepper motor - 1.70 Nm - shaft Ã˜8mm - L=79 mm - without brake -term box

Name: 3-phase stepper motor - 1.70 Nm - shaft Ã˜8mm - L=79 mm - without brake -term box
Brand: SCHNEIDER ELECTRIC
SKU: SQDBRS368H130ABA
Price: 401.74 USD
Availability: OutOfStock

SQDBRS368H130ABA BRS368H130ABA 785901669326

401.74 / EA

http://schema.org/OutOfStock

Mayer-DDS-3-phase stepper motor - 1.70 Nm - shaft Ã˜8mm - L=79 mm - without brake -term box-1

Country of Origin: Germany
Shaft Diameter: 8 mm
Shaft End: Smooth Shaft
Shaft Length: 21 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Resolution

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle
200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
200, 400, 500, 1000

Supply Voltage Limits

34-34 V DC
48-48 V DC

IP Degree Of Protection

IP56 total except shaft bushing: conforming to IEC 60034-5
IP41 shaft bushing without shaft seal ring: conforming to IEC 60034-5
IP41 sh

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.2 kg CO2 eq.
0.1911237446

Carbon Footprint Of The Manufacturing Phase A1 To A3

7 kg CO2 eq.
7.3234792496

Vibration Resistance

20 m/s² maximum
A IEC 60034-14

Maximum Radial Force FR

25 N second shaft end)
50 N first shaft end)

Persona Type Names

End User
Original Equipment Manufacturer
OEM - Control Panelbuilder

Maximum Axial Force FA

100 N tensile force)
8.4 N force pressure)

Carbon Footprint Of The Use Phase B2 B3 B4 B6

598 kg CO2 eq.
597.625709589

Relative Humidity

15-85 % without condensation

Persona Type Ids

Service Life In Hours

20000 h bearing)

Carbon Footprint Of The Distribution Phase A4

0.2580443434
0.3 kg CO2 eq.

Operating Altitude

<= 3280.84 ft (1000 m) without power derating

Temperature Class

F winding IEC 60034-1

Resistance

0.7 Ohm winding)

Physical Attributes

Motor Flange Size : 57.2 mm
Shaft Length : 21 mm

Complementary Attributes

Maximum Mechanical Speed : 3000 rpm
Maximum Starting Frequency : 6 kHz

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2024-01-27
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 7.3234792496
Distribution Carbon Footprint : 0.2580443434
Installation Carbon Footprint : 0
Use Carbon Footprint : 597.625709589
End Of Life Carbon Footprint : 0.1911237446
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Return Indicator : N
WD Status : 1 - GSC certified
Tier Id : 2
Tier : 2
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Centring Collar Diameter : 38 mm
Circle Diameter Of The Mounting Holes : 66.6 mm
Device Short Name : BRS3
Holding Brake : without
Mounting Holes Diameter : 5.2 mm
Number Of Motor Poles : 6
Package Weight Lbs : 1.523 kg
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : motion control motor
Returnability : No
Rotor Inertia : 0.38 kg.cm²
Second Shaft : without second shaft end
Shaft Diameter : 8 mm
Shaft End : smooth shaft
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 605 kg CO2 eq.
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Carbon Footprint Kg Co2 Eq Total Life Cycle : 605.3983569265
Relationship Type : Compatible relationship
Pep Code : ENVPEP111101EN
