HUBBELL WIRING DEVICES

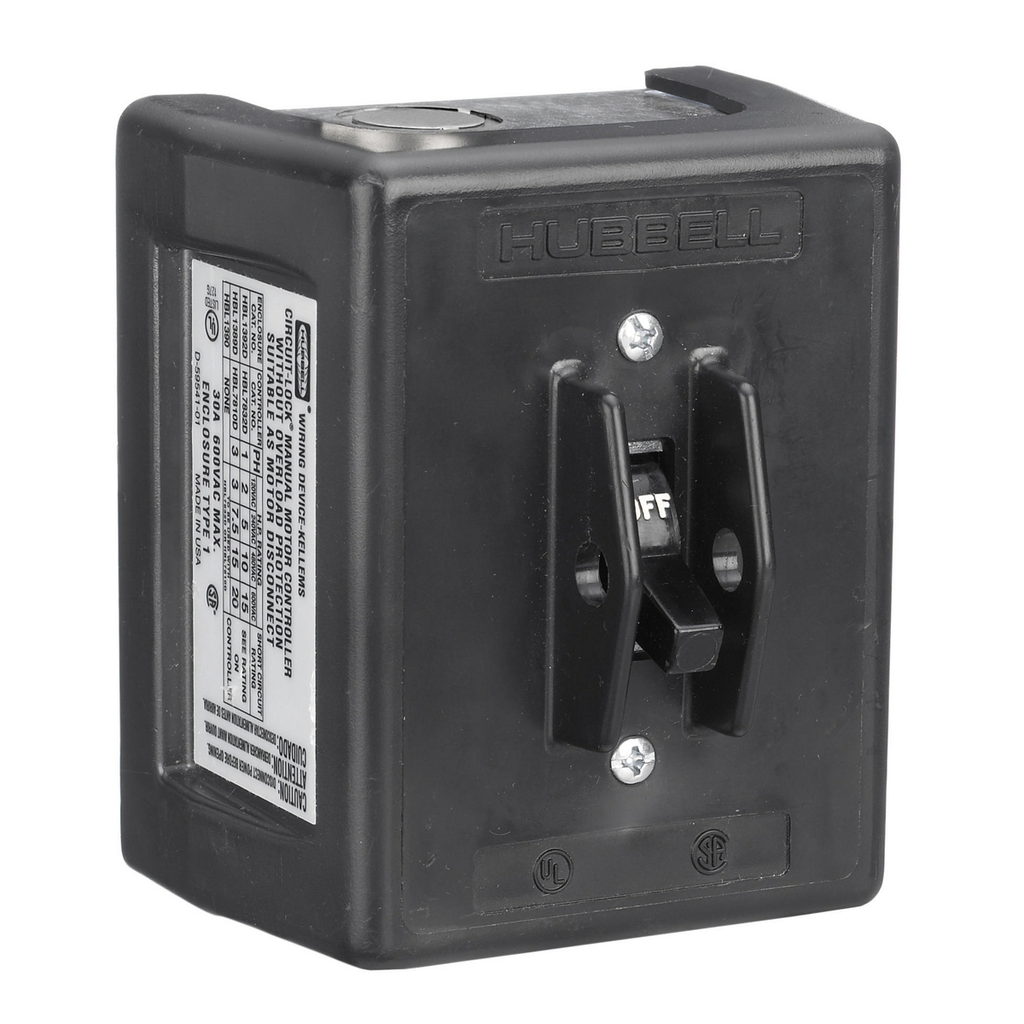

Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A

3-POLE 30A 600V AC

HUBHBL1389 HBL1389 783585680910
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A-1
  • Amperage: 30 A
  • Country of Origin: China
  • Height: 3.4 in
  • Horsepower: 20 hp
  • Length: 4.52 in
  • Wattage: 18000 W
  • Weight: 1.6 lb
  • Width: 3.97 in, 4.000 in
  • Wire Size: 10 AWG
Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Thermoplastic
QTY
  • Product Description
  • Features
  • Specifications
Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Thermoplastic
  • Features
    • Thermoplastic cover on a plated steel base
    • Durable, non-conductive cover
    • Wiring conduit knockouts
    • ½" and ¾" NPT
    • Top, bottom or back wire entry points
    • Surface mount control
    • Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
    • Standard Product
  • Specifications
    • Color : Black
    • Country of Origin : CN
    • Dimensions : 4.52 in x 3.97 in x 3.4 in
    • Each - Width : 4.000 in
    • Height : 3.4 in
    • Horsepower - Maximum : 20
    • Industry Standard(s) : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Length : 4.52 in
    • Application : Standard Toggle
    • Enclosure Type : NEMA 1
    • Size : 4.52 in x 3.97 in x 3.4 in
    • Special Features : Standard Product
    • Standard : CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
    • Type : Disconnect Switches;Accessories For LINKOSITY®
    • Weight : 1.6 lb.
    • Width : 3.97 in
    • Amperage Rating : 30 A
    • Connectivity : Back and Side Wired
    • Dielectric Strength : 2,200V AC minimum for 1 minute
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • Load Capacity : Inductive
    • Operating Cycles : 10,000 Cycles Minimum
    • Phase : Three Phase
    • Style : Replacement Switches;Standard Duty
    • Wattage : 18000 W
    • Wire Size : #10 AWG
    • Class Code : A16
    • Description - Invoice : 30A 600V 3P DISC SW W/NEMA 1 PLAS
    • Freight Class Code : 06168002
    • Harmonization Code : 8536509040
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : 1389;HBL1389;HBL1389BW
    • Sub Class Code : A16A240
    • Material - Mounting Hardware : Screw Mounting
    • Base Unit of Measure : EA
    • BOX SIZE : 7.370x12.700x7.800 (in)
    • Carton - Gross Weight per Pack : 16.4 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585680910
    • Carton - Total Units : 10 EA
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : No
