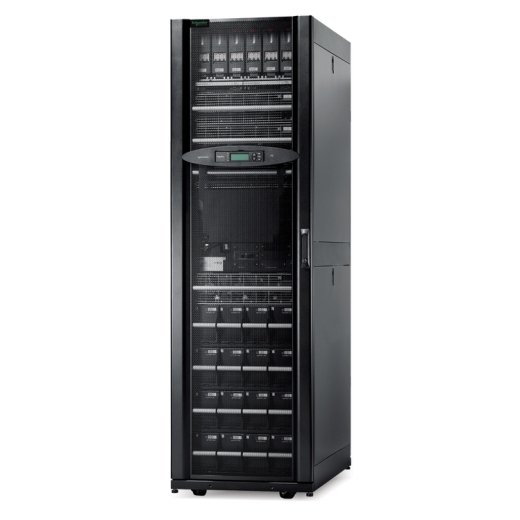

APC Symmetra PX 48kW All-In-One Frame, 400V

SYMMETRA PX 48KW ALL-IN-ONE FR

APCSYCF48KH SYCF48KH 731304262022

42529.96 / EA

http://schema.org/OutOfStock

Mayer-DDS-APC Symmetra PX 48kW All-In-One Frame, 400V-1

Depth: 107.0 cm, 42.13 in
Height: 199.1 cm, 78.39 in
Input Voltage: [seVoltCodes:400 3PH] V
Number of Connections: 1
Output Voltage: 400 V
Warranty Length: 1 yr
Width: 23.62 in, 60.0 cm

QTY

Features
Specifications

Features

Multiple cable-entry points — Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks.
Scalable power capacity — Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later.

What's in the box?

Installation guide

Conformance

Approvals : EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC part 15 class A, VFI-SS-111

Sustainability

RoHS : Compliant

Physical

Interface Port(s) : SmartSlot
Rack Height : 0

Input

Input Connection Type : Hard wire 5-wire (3P + N + E)
Input Voltage : [seVoltCodes:400 3PH]

Output

Output Power Capacity, VA : 48000
Output Connections : 1
Nominal Output Voltage : 400V 3PH
Topology : Double conversion online
Waveform type : Sine wave

Height, Width, Depth

Height : 78.39 in
Height (metric) : 199.1 cm
Width : 23.62 in
Width (metric) : 60.0 cm
Depth : 42.13 in
Depth (metric) : 107.0 cm

Warranty

Warranty : 1 year repair or replace
