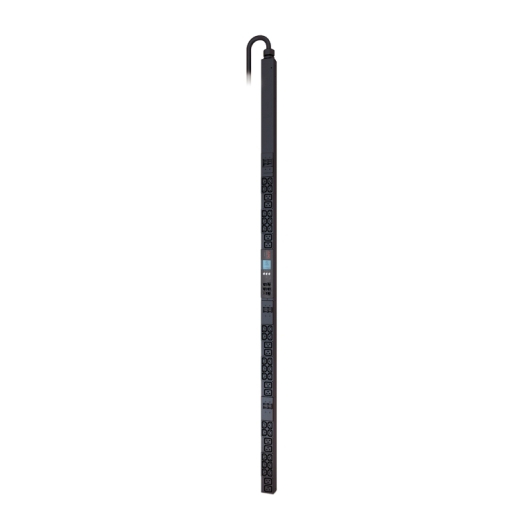

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

RACK PDU 2G METERED ZEROU 22.0

APCAP8886 AP8886 731304289937

2994.96 / EA

http://schema.org/OutOfStock

Mayer-DDS-APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord-1

Cord Length: 6 in
Depth: 2.01 in, 5.1 cm
Height: 182.9 cm, 72.01 in
Input Voltage: [seVoltCodes:400 3PH] V
Mounting Type: Side
Number of Connections: 42
Orientation: Rack
Output Voltage: 230 V
Warranty Length: 2 yr
Width: 2.2 in, 5.6 cm

QTY

Features
Specifications

What's in the box?

Installation guide
Rack mounting brackets
Safety guide
Serial configuration cable

Conformance

Approvals : EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003, VCCI class A, VDE

Sustainability

RoHS : Compliant

Physical

Product Orientation : Rack
Rack Height : 0
Color : Black
Mount Position : Side

Input

Cord Length : 6
Cord Length (metric) : 1.8 cm
Input Connection Type : IEC 60309 32 A 3P + N + E
Input Voltage : [seVoltCodes:400 3PH]

Output

Output Connections : 42
Nominal Output Voltage : 230V

Height, Width, Depth

Height : 72.01 in
Height (metric) : 182.9 cm
Width : 2.2 in
Width (metric) : 5.6 cm
Depth : 2.01 in
Depth (metric) : 5.1 cm

Warranty

Warranty : 2 years repair or replace
