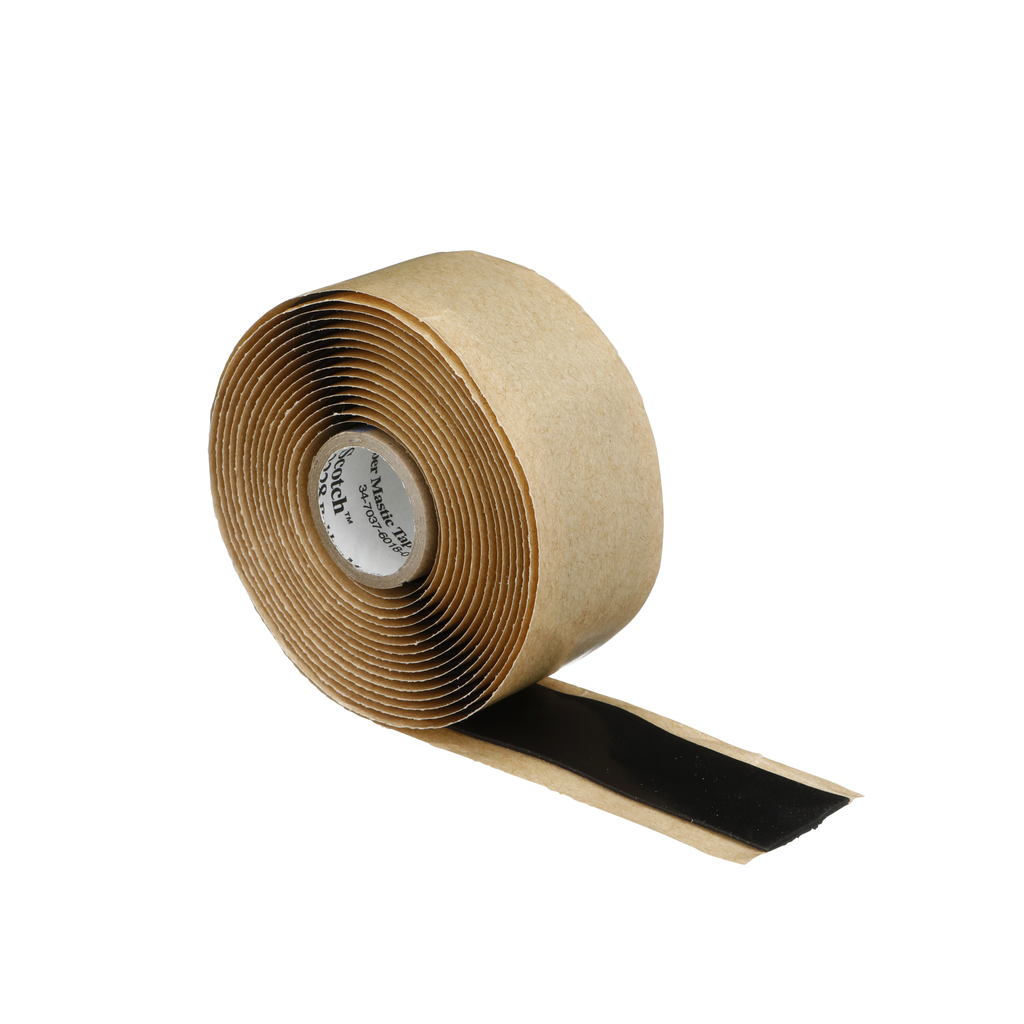

Scotch® Rubber Mastic Tape 2228 is a conformable self–fusing rubber electrical insulating and sealing tape that consists of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature–stable mastic adhesive. This tape is made 65 mils (1,65 mm) thick for quick application build–up. It is designed for electrical insulating and moisture sealing applications. It is a UL recognized component for applications up to 130C. It offers excellent resistance to moisture and ultraviolet exposure and is intended for both indoor and weather exposed outdoor applications. Scotch® Rubber Mastic Tape 2228 should be applied in half–lapped layers until desired insulation build up is reached. Stretch the tape to 3/4 of its original width during application for good conformability and to obtain a moisture tight seal. Scotch® Rubber Mastic Tape 2228 should be overwrapped for mechanical protection with two half–lapped layers of Scotch® Super 33+TM Vinyl Electrical Tape.

• Features
• CONFORMABLE OVER IRREGULAR SHAPED CONNECTIONS: Thick construction allows quick application build–up and padding over irregular connections
• PRIMARY ELECTRICAL INSULATION FOR: Cable and wire connections and vibration padding for motor leads rated up to 1000 volts
• WEATHER AND MOISTURE RESISTANCE: Moisture seal for cable and wire connections
• OPERATING TEMPERATURE: Electrical properties are stable up to 266 °F (130 °C)
• COMPLIANCE: UL recognized component listing not to exceed 266 °F (130 °C), Product Category OANZ2, and 3M File No. E17385; RoHS compliant
• STABILITY: 5-year shelf life (from date of manufacture)

• Specifications
• Country of Origin : United States
• RDS URL (Regulatory Data Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00x4x_So8tZlv70k17zHvu9lxtD7xt1evSSSSSS-
• Adhesive Type : Rubber
• AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00x4x_So8tZlv70k17zHvu9lxtD7xtBevSSSSSS-
• Overall Width (Imperial) : 1.0 in
• Overall Width (Metric) : 25.4 mm
• ETIM Class 7.0 : EC000128
• ETIM Class 8.0 : EC000128
• Total Tape Thickness without Liner (Imperial) : 65.0 mil
• Total Tape Thickness without Liner (Metric) : 1.65 mm
• Application : Insulation
• Backing (Carrier) Material : Ethylene Propylene Rubber
• Dielectric Strength : 500.0 V/mil
• Elongation at Break : 1000.0 %
• Features : Self-sticking; UV-resistant
• Maximum Operating Temperature (Celsius) : 90.0 Degree
• Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
• Minimum Operating Temperature (Celsius) : 0.0 Degree
• Overall Length (Imperial) : 10.0 ft
• Overall Length (Metric) : 3.0 m
• Product Color : Black
• Product Markets : Electrical Equipment Manufacturing
• Shelf Life : 1825 Year
• Specifications Met : ASTM D-4388 Type 1, 2 & 3
• Voltage Rating : 35 kV
