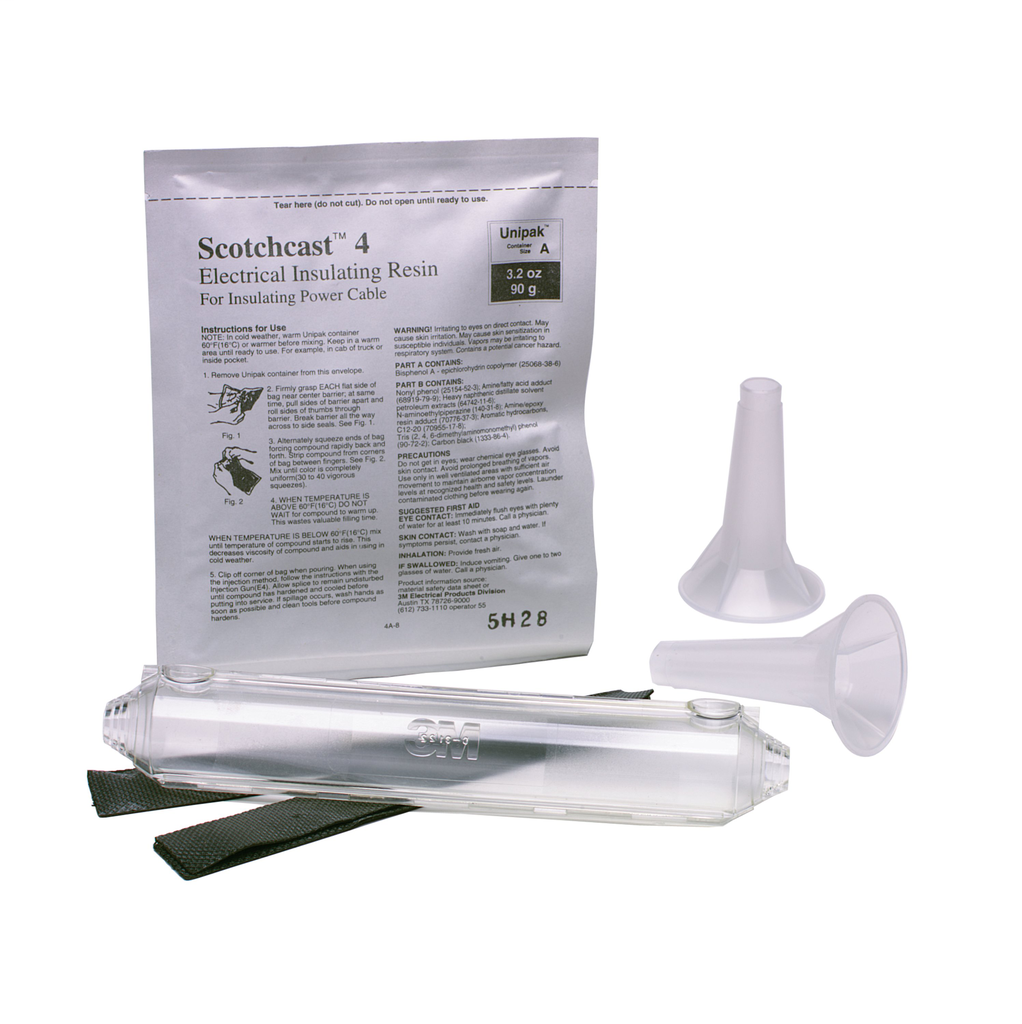

3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG,1 per box, 10/Case

SPLICED KIT

MMM82A1N 82A1N 051128613412
78.68 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG,1 per box, 10/Case-2
  • Country of Origin: USA
  • Dielectric Strength: 500 mV
  • Material: Epoxy
  • Package Height: 2.000 in
  • Package Length: 8.000 in
  • Package Weight: 0.625 lb
  • Shielding Type: Single Conductor Portable Cable
  • Splice Type: Inline
  • Voltage: 5 kV
3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.
QTY
  • Product Description
  • Features
  • Specifications
3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.
  • Features
    • Insulates and seals unshielded, single conductor cables and multiple conductor cables
    • Splices non-shielded wet or dry cables
    • Designed for weather-exposed or direct burial locations
    • Rated for 5 kV and 1 kV cables
    • UL Listed and RoHS 2011/65/EU Compliant
  • Specifications
    • Manufacturer Catalog Number : 7100123073
    • Cable Shielding : Single Conductor Portable Cable
    • Color Family (incorporate Product Color) : Black
    • Conductor Size Range : 8-2 AWG
    • Dielectric Strength : 500 Millivolt
    • Insulation O.D. Range : 0.406 - 0.625 Inch
    • Insulation Outside Diameter Range : 0.406 - 0.625 Inch
    • Insulation Outside Diameter Range (Metric) : 10 - 16 mm
    • Manufacturing Origin : USA
    • Material : Epoxy
    • Maximum Cable Outside Diameter : 0.60 in
    • Maximum Cable Outside Diameter (Metric) : 15.2 mm
    • Maximum Conductor Size : 2 AWG
    • Resin Type : Liquid
    • Splice Type : Inline
    • Voltage : 5 kV
  • Packaging
    • Package Length : 8.00000 in
    • Package Height : 2.00000 in
    • Package Weight : 0.6250 LBS
