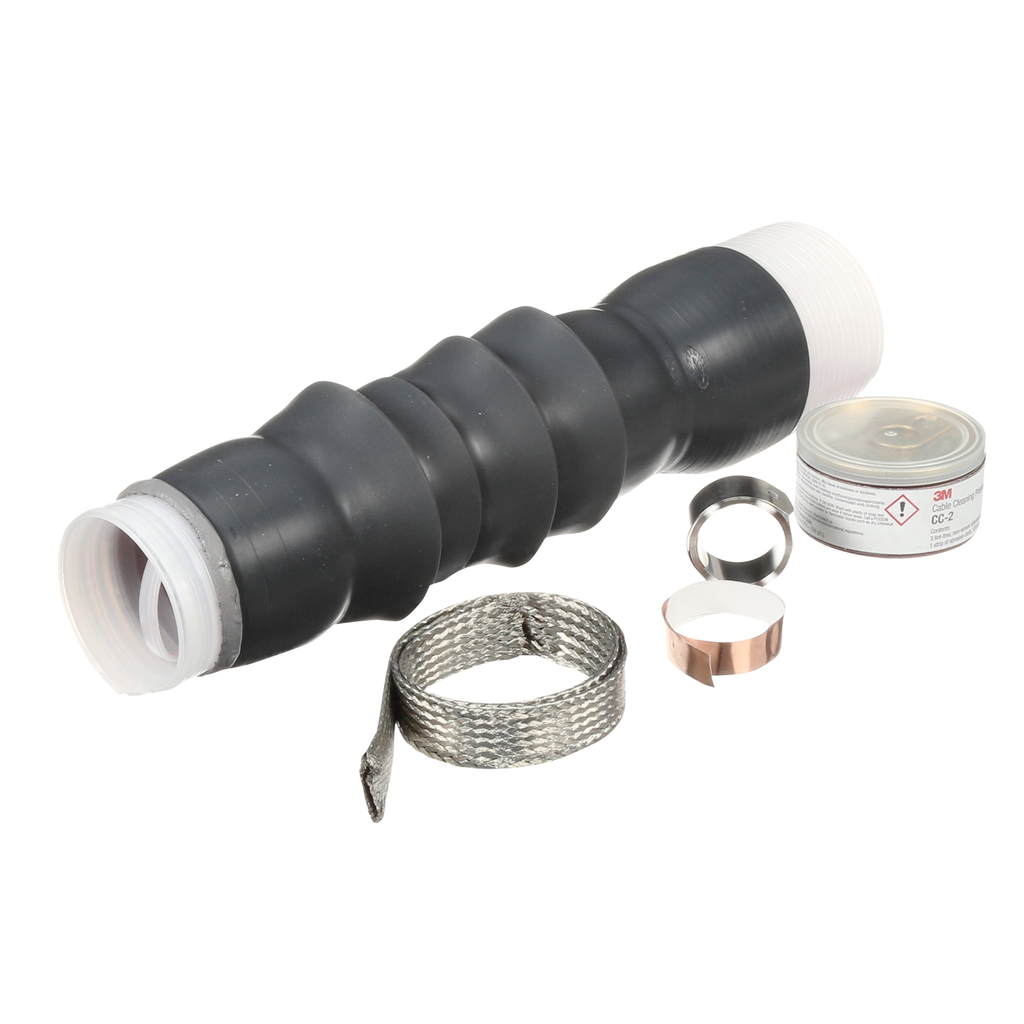

3M™ Cold Shrink QT-III Termination Kit 7695-S-4, Tape, Wire, UniShield®, 5-25/28 kV, 4 Skirt, 3/kit, Indoor/Outdoor

3M 7695-S-4 COLD SHRINK 4 SKIR

MMM7695S4 7695-S-4 54007422143
1741.50 / Kit
http://schema.org/OutOfStock
Mayer-DDS-3M™ Cold Shrink QT-III Termination Kit 7695-S-4, Tape, Wire, UniShield®, 5-25/28 kV, 4 Skirt, 3/kit, Indoor/Outdoor-2
  • Country of Origin: USA
  • Indoor/Outdoor: Outdoor Skirted
  • Product Series: 7690-S
  • Voltage: 15 kV
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
  • Features
    • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
    • High dielectric-constant material regulates the distribution of electric field stress
    • Suitable for outdoor applications
    • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Specifications
    • Country of Origin : United States
    • ETIM Class 8.0 : EC003520
    • Breakout Boot : No
    • Cable Shielding : Tape Shield
    • Conductor Sizes (Imperial) : 1000 kcmil
    • Insulation Outer Diameter (Imperial) : 1.05 in
    • Insulation Outer Diameter (Metric) : 26.67 mm
    • Insulation Rejacketing : No
    • Number of Conductors : 1.0
    • Voltage : 15 kV
    • BIL : 150 kV
    • Compatible Lug : QL2-A-350-750
    • Family : QT-III
    • Indoor/Outdoor : Outdoor Skirted
    • Insulation Level : 100%
    • Lug/Stem Connector Included in Kit : No
    • Manufacturing Origin : USA
    • Maximum Installed Length : 12.25 in
    • Product Series : 7690-S
    • Product Technology : Cold Shrink
    • RoHS EU Comments : Contact 3M for information
    • Units per Case : 3.0
    • Voltage Application : Medium Voltage
