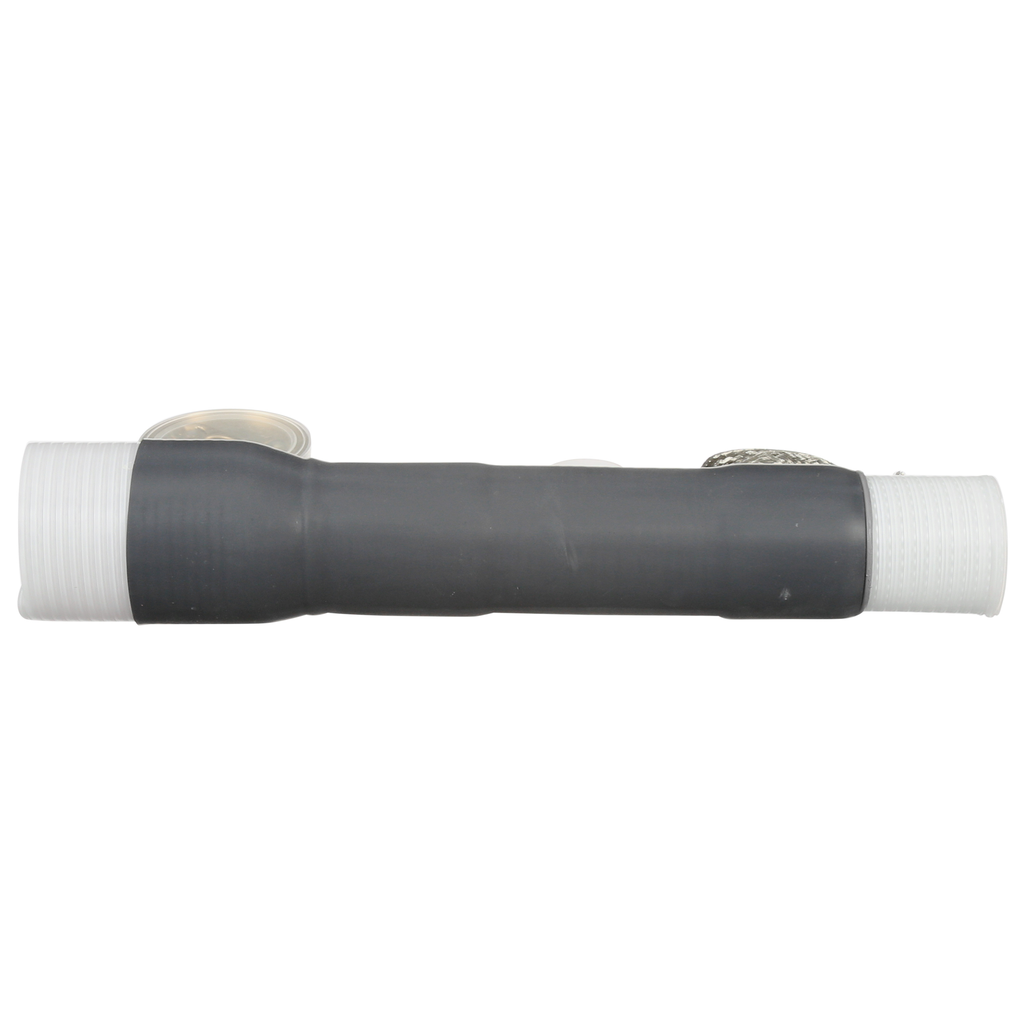

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.

• Features
• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• Suitable for indoor applications
• Non-tracking, molded, silicone rubber insulation offers durability
• Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

• Specifications
• Country of Origin : United States
• ETIM Class 7.0 : EC003520
• ETIM Class 8.0 : EC003520
• Breakout Boot : No
• Cable Shielding : Tape Shield
• Conductor Sizes (Imperial) : 250 kcmil
• Insulation Outer Diameter (Imperial) : 0.83 in
• Insulation Outer Diameter (Metric) : 21.082 mm
• Insulation Rejacketing : No
• Number of Conductors : 1.0
• Voltage : 15 kV
• BIL : 110 kV
• Compatible Lug : QL2-A-1/0-350
• Family : QT-III
• Indoor/Outdoor : Indoor Non-skirted
• Insulation Level : 100%
• Lug/Stem Connector Included in Kit : No
• Manufacturing Origin : USA
• Maximum Installed Length : 12.00 in
• Product Series : 7620-T
• Product Technology : Cold Shrink
• RoHS EU Comments : Contact 3M for information
• Units per Case : 3.0
• Voltage Application : Medium Voltage
