3M™ Scotchcast™ Inline Resin Power Cable Splice Kits 82-AN Series is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

• Features
• Excellent multi-purpose moisture sealing resin
• Tough and oil resistant

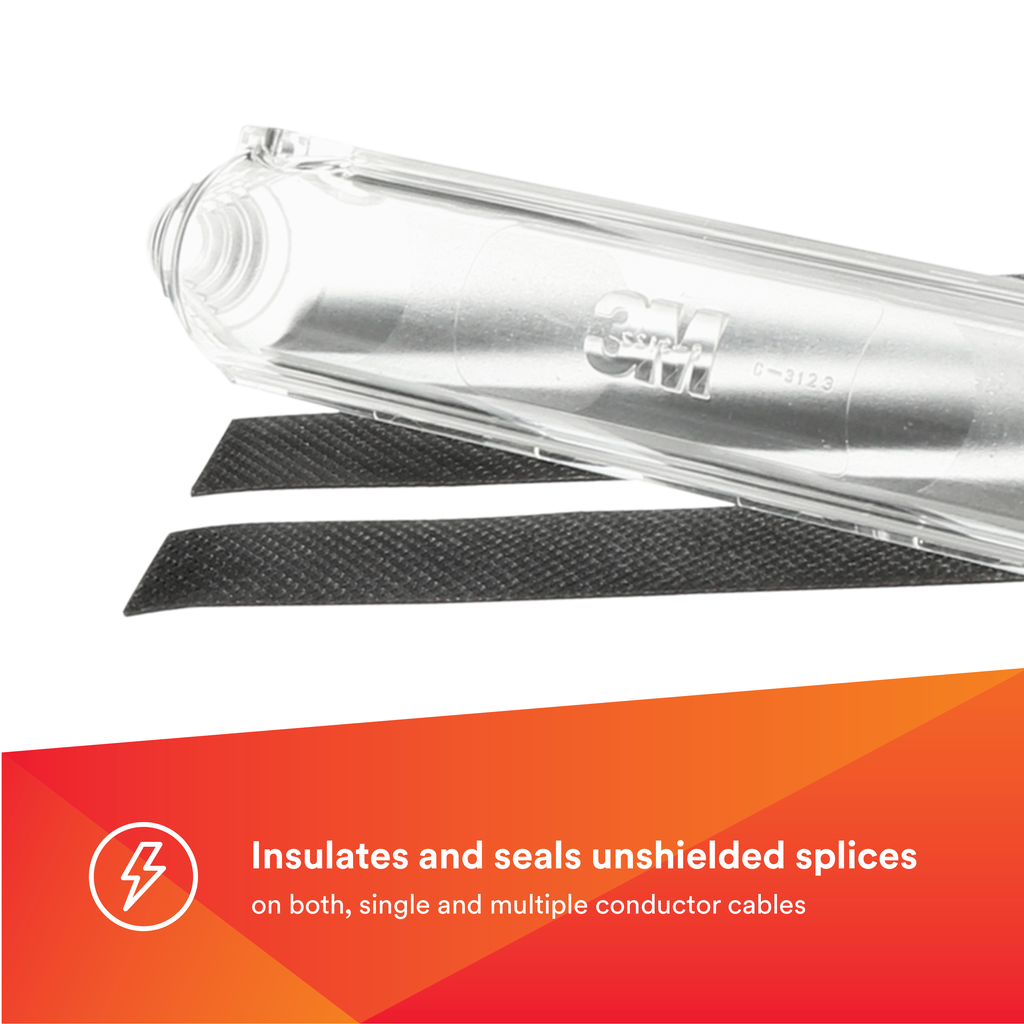

• Insulates and seals unshielded, single conductor cables and multiple conductor cables
• Splices non-shielded submersible cables
• Designed for weather-exposed or direct burial locations
• Rated for 5 kV and 1 kV cables

• Specifications
• Country of Origin : United States
• ETIM Class 8.0 : EC001169
• Conductor Amount : Multiple
• Maximum Conductor Size (Imperial) : 2 AWG
• Maximum Conductor Size (Metric) : 35 mm²
• Maximum Insulation Outer Diameter (Imperial) : 0.625 in
• Maximum Insulation Outer Diameter (Metric) : 15.875 mm
• Minimum Conductor Size (Imperial) : 8 AWG
• Minimum Conductor Size (Metric) : 10 mm²
• Minimum Insulation Outer Diameter (Imperial) : 0.406 in
• Minimum Insulation Outer Diameter (Metric) : 10.312 mm
• Voltage : 5 kV
• Application : Sealing, electrical insulation and mechanical protection
• Cable Shielding : Single Conductor Portable Cable
• Dielectric Strength : 500.0 mV
• Insulation O.D. Range : 0.406 - 0.625 Inch
• Insulation Outside Diameter Range : 0.406 - 0.625 Inch
• Insulation Outside Diameter Range (Metric) : 10 - 16 mm
• Manufacturing Origin : USA
• Material : Epoxy
• Maximum Cable Outside Diameter : 0.60 in
• Maximum Cable Outside Diameter (Metric) : 15.2 mm
• Product Color : Black
• Product Series : 82-A Series
• Product Technology : Resin
• Product Type : Splice
• RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
• Splice Type : Inline
• Voltage Application : Medium Voltage
