3M™ Cold Shrink Quick Insulator QI 5/16-220, 1 kV, 10/Case

QUICK INSUL 8-1/0AL / 8-2/0CU

MMMQI516220 QI-5/16-220 51128577509
54.51 / Each
http://schema.org/OutOfStock
Mayer-DDS-3M™ Cold Shrink Quick Insulator QI 5/16-220, 1 kV, 10/Case-1
  • Country of Origin: USA
  • Indoor/Outdoor: Indoor, Outdoor
  • Material: EPDM Rubber
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: -40.0 °C, -40.0 °F
  • Product Type: Splice
  • Splice Type: Cold Shrink
  • Voltage: 1 kV

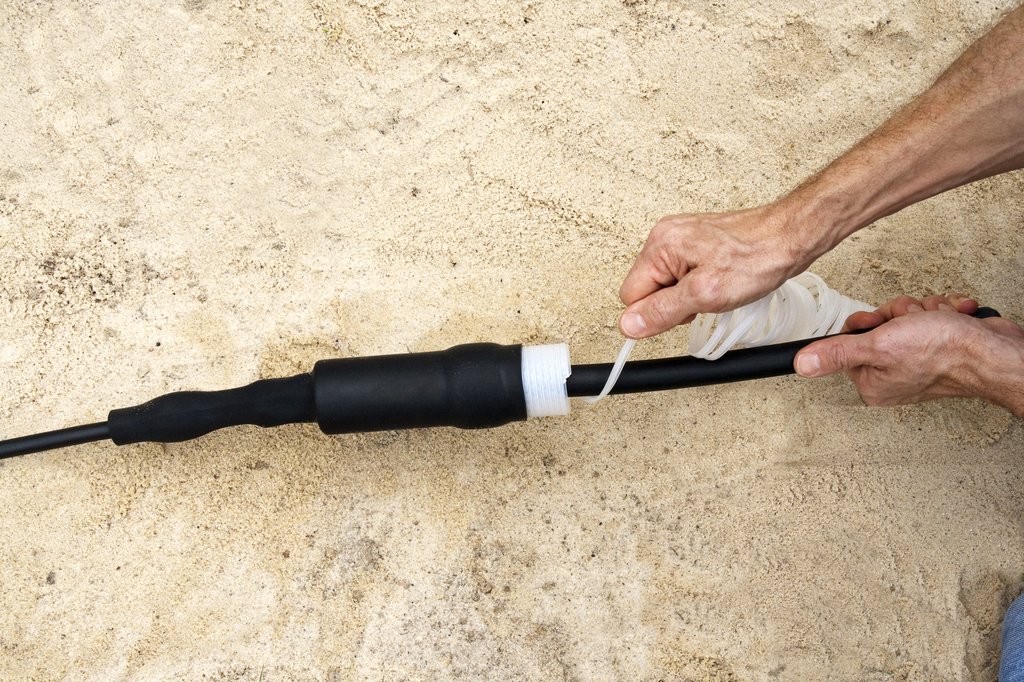

3M™ Cold Shrink EPDM rubber insulating sleeve is a factory-expanded tube loaded on a removable plastic core. Simply prepare the connection, position the tube and unwind the core.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Cold Shrink EPDM rubber insulating sleeve is a factory-expanded tube loaded on a removable plastic core. Simply prepare the connection, position the tube and unwind the core.
  • Features
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Simple installation which requires no tools
    • Offers excellent wet electrical properties and resists water, acids and alkalis
    • Made of EPDM rubber which contains no chlorides or sulfur
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
    • Environmental sealing for communication and other non-electrical applications
  • Specifications
    • Country of Origin : United States
    • Inner Diameter After Shrink (Imperial) : 0.2 in
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xM82Umx_vmv70k17zHvu9lxtD7xtBevSSSSSS-
    • ETIM Class 7.0 : EC000217
    • Inner Diameter After Shrink (Metric) : 5.1 mm
    • Inner Diameter Before Shrink (Imperial) : 0.65 in
    • ETIM Class 8.0 : EC000217
    • Inner Diameter Before Shrink (Metric) : 16.5 mm
    • Material : EPDM Rubber
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : -40.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : -40.0 Degree
    • Cable End Expanded : 2.35 in
    • Cable End Recovered : 1.0 in
    • Cable Shielding : Non-shielded
    • Cable Type : Power Cable
    • Conductor Legs Expanded : 1.0 in
    • Conductor Legs Recovered : 0.35 in
    • Conductor Material : Aluminum
    • Connector Included : No
    • Dielectric Strength (V/mil) : 365 V/mil
    • Elongation UOM : %
    • Flame Retardant : Yes
    • Halogen Free : No
    • Indoor/Outdoor : Both
    • Insulation O.D. Range : 0.20-0.65 in
    • Insulation O.D. Range (Metric) : 5.1-16.5 mm
    • Manufacturing Origin : USA
    • Maximum Conductor Size (Imperial) : 1/0 AWG (Aluminum)
    • Maximum Conductor Size (Metric) : 50 mm² (Aluminum); 70 mm² (Copper)
    • Maximum Connector Length : 2.75 in
    • Maximum Connector Length (Metric) : 69.9 mm
    • Maximum Connector O.D. : 0.65 in
    • Maximum Connector O.D. (Metric) : 16.5 mm
    • Minimum Conductor Size (Imperial) : 8 AWG (Aluminum)
    • Minimum Conductor Size (Metric) : 10 mm² (Aluminum); 10 mm² (Copper)
    • Model : Cold-shrink
    • Number of Outlets : 4
    • Product Color : Black
    • Product Type : Splice
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Shelf Life : 1800
    • Splice Type : Cold Shrink
    • Voltage : 1 kV
    • With Inner Glue : No
