3M Cold Shrink QT-III Termination Kit 7625-T-110, Tape, Wire and Unishield, Non-Skirted, 15 kV, 1.05-1.80 in (26,7-45,7 mm) Cable Insul. O.D., 3 termination/kit

COLD SHRINK TERMINATION KIT NO

MMM7625T110 7625-T-110 054007417620
894.30 / Kit
http://schema.org/OutOfStock

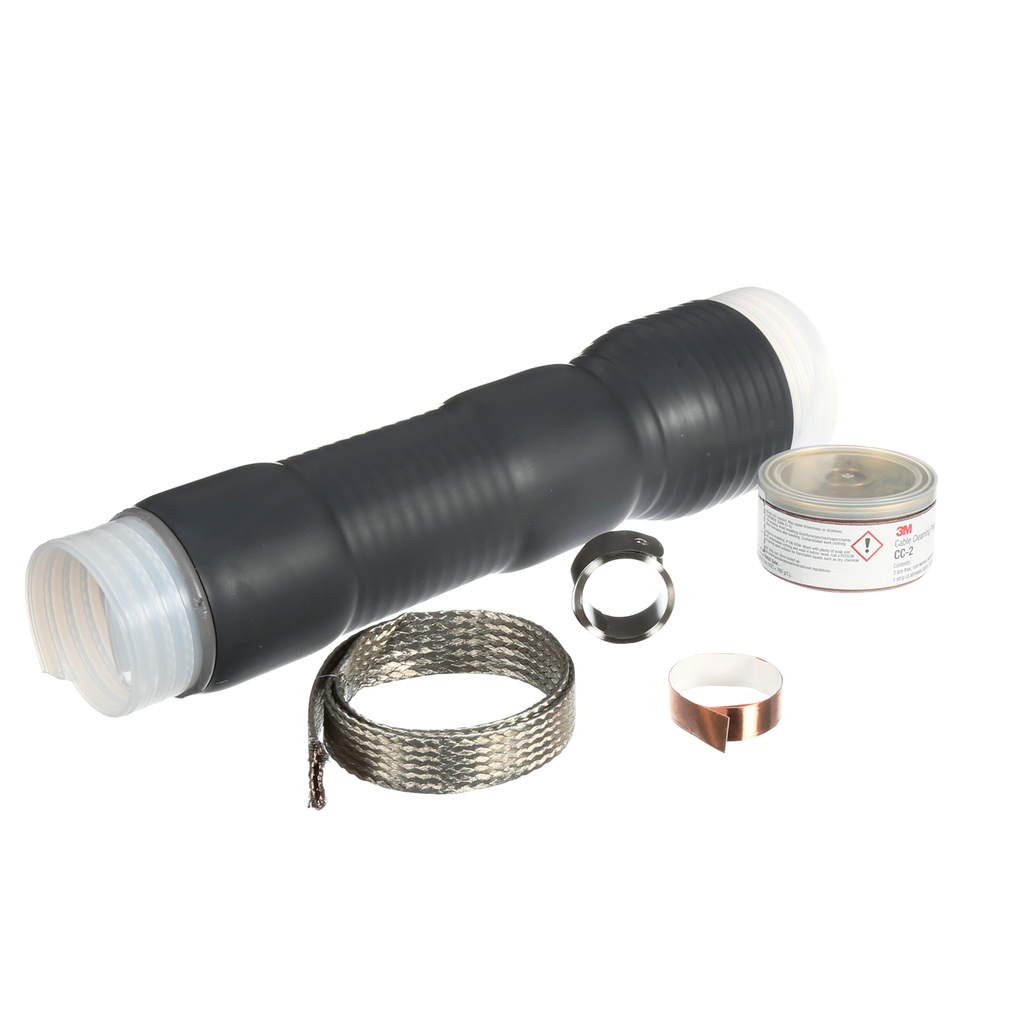

Mayer-DDS-3M Cold Shrink QT-III Termination Kit 7625-T-110, Tape, Wire and Unishield, Non-Skirted, 15 kV, 1.05-1.80 in (26,7-45,7 mm) Cable Insul. O.D., 3 termination/kit-1
  • Conductor Size: 1000 MCM, 1250 MCM, 1500 MCM, 500 MCM, 600 MCM, 700 MCM, 750 MCM, 800 MCM, 900 MCM
  • Indoor/Outdoor: Indoor Non-skirted
  • Voltage: 5 kV, 8 kV
3M Cold Shrink QT-III Termination Kit 7625-T-110, Non-Skirted, 1.05-1.80 in (26,7-45,7 mm) Cable Insulation O.D.
QTY
  • Product Description
  • Features
  • Specifications
3M Cold Shrink QT-III Termination Kit 7625-T-110, Non-Skirted, 1.05-1.80 in (26,7-45,7 mm) Cable Insulation O.D.
  • Overview
    • 3M Cold Shrink QT-III terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M Cold Shrink QT-III terminations deliver maximum performance.
    • Conductor Size Range for
    • · 5 kV: 700-1500 kcmil
    • · 8 kV: 600-1250 kcmil
    • · 15 kV: 500-1000 kcmil
  • Specifications
    • Cable Insulation Outside Diameter Range (metric) : 26.7-45.7 mm
    • Agency Approvals : IEEE
    • Breakout Boot : No
    • Insulation Level : 100%, 133%
    • Product Family : QT-III
    • Number of Conductors : 1
    • RoHS 2011/65/EU Compliant : Undetermined
    • BIL : 110 kV
    • Number of Skirts : 0
    • Shielding Type : UniShield, Wire Shield, Tape Shield
    • Voltage : 8 kV, 5 kV, 15 kV
    • Maximum Installed Length : 12.00 in
    • Trademark : 3M
    • Insulation Rejacketing : No
    • RoHS EU Comments : Contact 3M for information
    • Cable Insulation Outside Diameter Range : 1.05-1.80 in
    • Conductor Sizes : 1500 kcmil, 750 kcmil, 500 kcmil, 1000 kcmil, 800 kcmil, 700 kcmil, 600 kcmil, 1250 kcmil, 900 kcmil
    • Family : QT-III
    • Product Series : 7620-T
    • Indoor/Outdoor : Indoor Non-skirted
    • Lug/Stem Connector Included in Kit : No
