3M™ Cold Shrink Insulator 8428-12, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case

600V COLD SPLICE 500-800

MMM842812 8428-12 54007090564
99.09 / Each
http://schema.org/OutOfStock

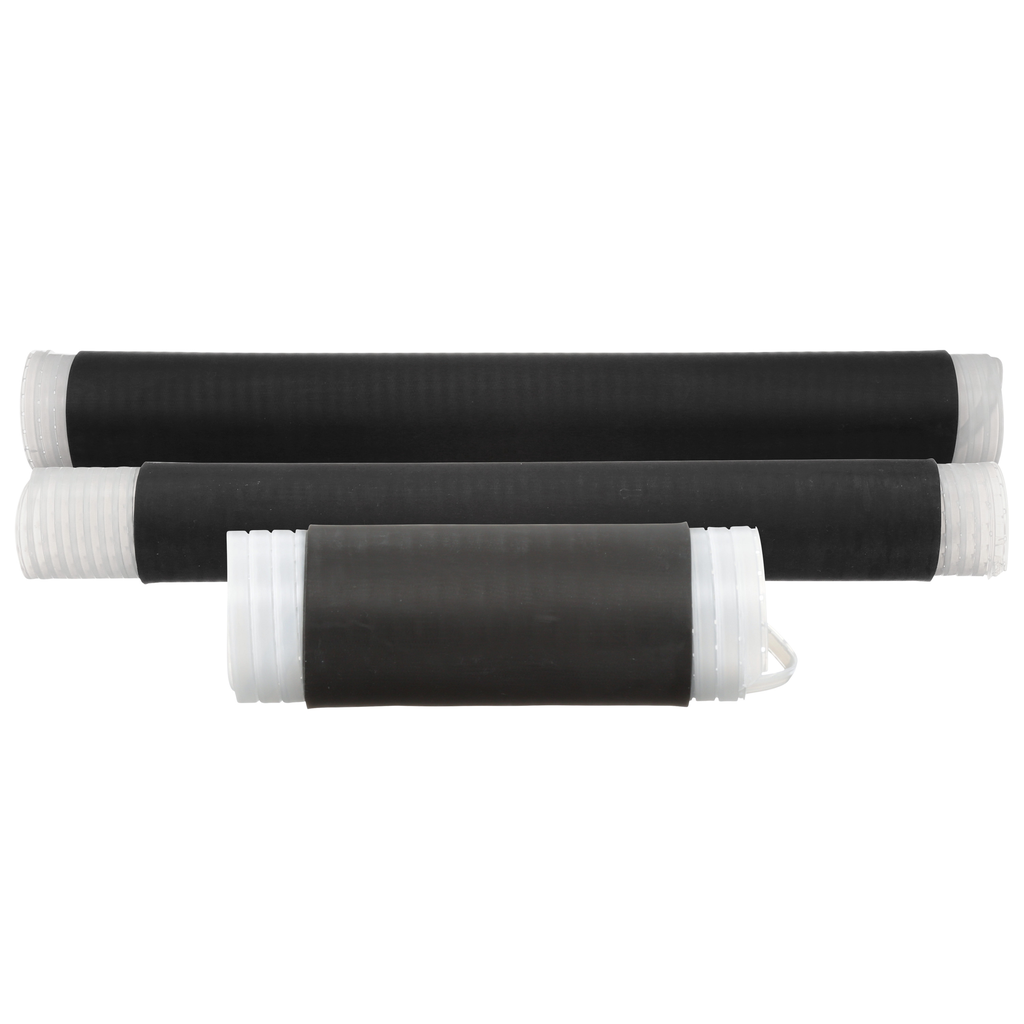

Mayer-DDS-3M™ Cold Shrink Insulator 8428-12, Tape/Wire/UniShield® Shielding, 1 kV, Standard, 10/Case-1
  • Applications: Insulation, Mechanical Protection, Repair
  • Country of Origin: USA
  • Material: EPDM Rubber
  • Max. Operating Temperature: 194.0 °F, 90.0 °C
  • Min. Operating Temperature: -40.0 °C, -40.0 °F
  • Overall Length: 12.0 in, 304.8 mm
  • Product Type: Splice
  • Splice Type: Cold Shrink
  • Voltage: 1 kV
3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
  • Features
    • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
    • Simple installation which requires no tools
    • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
    • Made of EPDM rubber which contains no chlorides or sulfur
    • Covers a wide range of cable cross sections
    • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/oNmlOJecv64
    • Inner Diameter After Shrink (Imperial) : 0.949 in
    • ETIM Class 7.0 : EC000217
    • Inner Diameter After Shrink (Metric) : 24.1 mm
    • Inner Diameter Before Shrink (Imperial) : 1.937 in
    • ETIM Class 8.0 : EC000217
    • Inner Diameter Before Shrink (Metric) : 49.2 mm
    • Material : EPDM Rubber
    • Maximum Operating Temperature (Celsius) : 90.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 194.0 Degree
    • Minimum Operating Temperature (Celsius) : -40.0 Degree
    • Minimum Operating Temperature (Fahrenheit) : -40.0 Degree
    • Overall Length (Imperial) : 12.0 in
    • Overall Length (Metric) : 304.8 mm
    • Application : Insulation, mechanical protection, repair
    • Cable Shielding : Non-shielded
    • Cable Type : Power Cable
    • Conductor Material : Aluminum
    • Halogen Free : No
    • Manufacturing Origin : USA
    • Maximum Conductor Size (Imperial) : 800 kcmil
    • Maximum Conductor Size (Metric) : 400 mm²
    • Maximum Connector Length : 8.0 in
    • Maximum Connector Length (Metric) : 203.2 mm
    • Minimum Conductor Size (Imperial) : 600 kcmil
    • Minimum Conductor Size (Metric) : 300 mm²
    • Model : Cold-shrink
    • Number of Conductors : 1.0
    • Product Color : Black
    • Product Type : Splice
    • Relaxed Tube Length : 12.0 in
    • Relaxed Tube Length (Metric) : 304.8 mm
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Splice Type : Cold Shrink
    • Units per Case : 10.0
    • Voltage : 1 kV
    • Voltage Application : Low Voltage
