P1™ Heat Shrink Label

HS TUBING 3/16 X 11/32 X 1 WHT

PANH100X034H1C H100X034H1C 074983010141
103.74 / EA
http://schema.org/OutOfStock
Mayer-DDS-P1™ Heat Shrink Label-1
  • Material: Polyolefin
  • Max. Operating Temperature: 135 °C, 275 °F
  • Min. Operating Temperature: -55 °C, -67 °F
  • Type: Heat Shrink Label
  • Width: 0.34 in, 8.6 mm

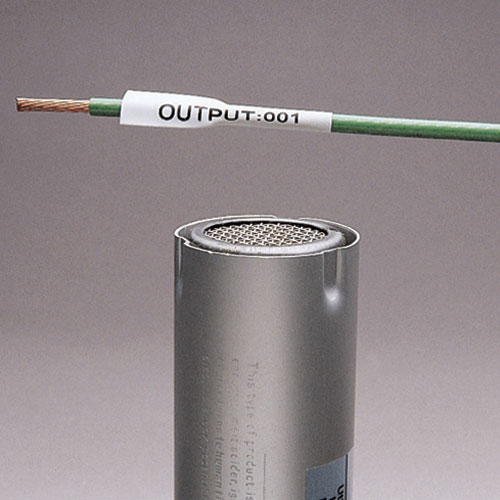

The H100X034H1C Military-Grade Polyolefin Die-Cut Heat-Shrink Label Cassette contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 1" x 0.34" (25.4 mm x 8.6 mm) Cable diameter 0.06" - 0.19" (1.5 mm - 4.8 mm) Color White. 1 cassette
QTY
  • Product Description
  • Features
  • Specifications
The H100X034H1C Military-Grade Polyolefin Die-Cut Heat-Shrink Label Cassette contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 1" x 0.34" (25.4 mm x 8.6 mm) Cable diameter 0.06" - 0.19" (1.5 mm - 4.8 mm) Color White. 1 cassette
  • Standards and Certifications
    • Standards Met: MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
  • Specifications
    • Country of Origin : Costa Rica
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Number of Labels : 100
    • Label Application : Cable & Wire Marking
    • Sub Brand : P1™
    • Color : White
    • Maximum Cable Diameter (mm) : 4.8
    • Minimum Operating Temperature (°C) : -55
    • Label Width (In.) : 1
    • Product Type : Heat Shrink Label
    • Overall Width (mm) : 8.6
    • Minimum Operating Temperature (°F) : -67
    • Resistance Properties : Military Grade
    • Label Height (In.) : 0.34
    • Note : For use with LS8E and LS8EQ printers
    • Overall Width (In.) : 0.34
    • Minimum Cable Diameter (mm) : 1.5
    • Maximum Operating Temperature (°F) : 275
    • Material : Polyolefin
    • Minimum Cable Diameter (In.) : 0.06
    • Label Width (mm) : 25.4
    • Maximum Cable Diameter (In.) : 0.19
    • Maximum Operating Temperature (°C) : 135
    • Label Height (mm) : 8.6
    • Compatible Wire Gauge : 18-12 AWG
  • Packaging Details
    • UPC : 07498301014
    • GTIN Package : 00074983010141
    • Standard Package Volume Ft3 : 0.0190
    • Standard Package Weight Pounds : 0.2950
    • Std Package Height In : 1.95
    • Std Package Height MM : 49.53
    • Std Package Length In : 4.3
    • Std Package Length MM : 109.22
    • Std Package Width In : 2.85
    • Std Package Width MM : 72.39
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983010146
    • Standard Carton Volume Ft3 : 0.1899
    • Standard Carton Weight Pounds : 2.9500
    • Std Carton Height In : 5.65
    • Std Carton Height MM : 143.51
    • Std Carton Length In : 10.35
    • Std Carton Length MM : 262.89
    • Std Carton Width In : 6.2
    • Std Carton Width MM : 157.48
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • EAN : 00074983010141
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 1,400
    • Pallet Volume : 26.584201
    • Pallet Weight : 413.0000
    • RoHS Compliant : Compliant
