P1™ Heat Shrink Label

HS TUBING 1/8IN X 8FT WHT

PANH000X025H1C H000X025H1C 074983663675
76.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-P1™ Heat Shrink Label-1
  • Material: Polyolefin
  • Max. Operating Temperature: 135 °C, 275 °F
  • Min. Operating Temperature: -55 °C, -67 °F
  • Type: Heat Shrink Label
  • Width: 0.25 in, 6.4 mm

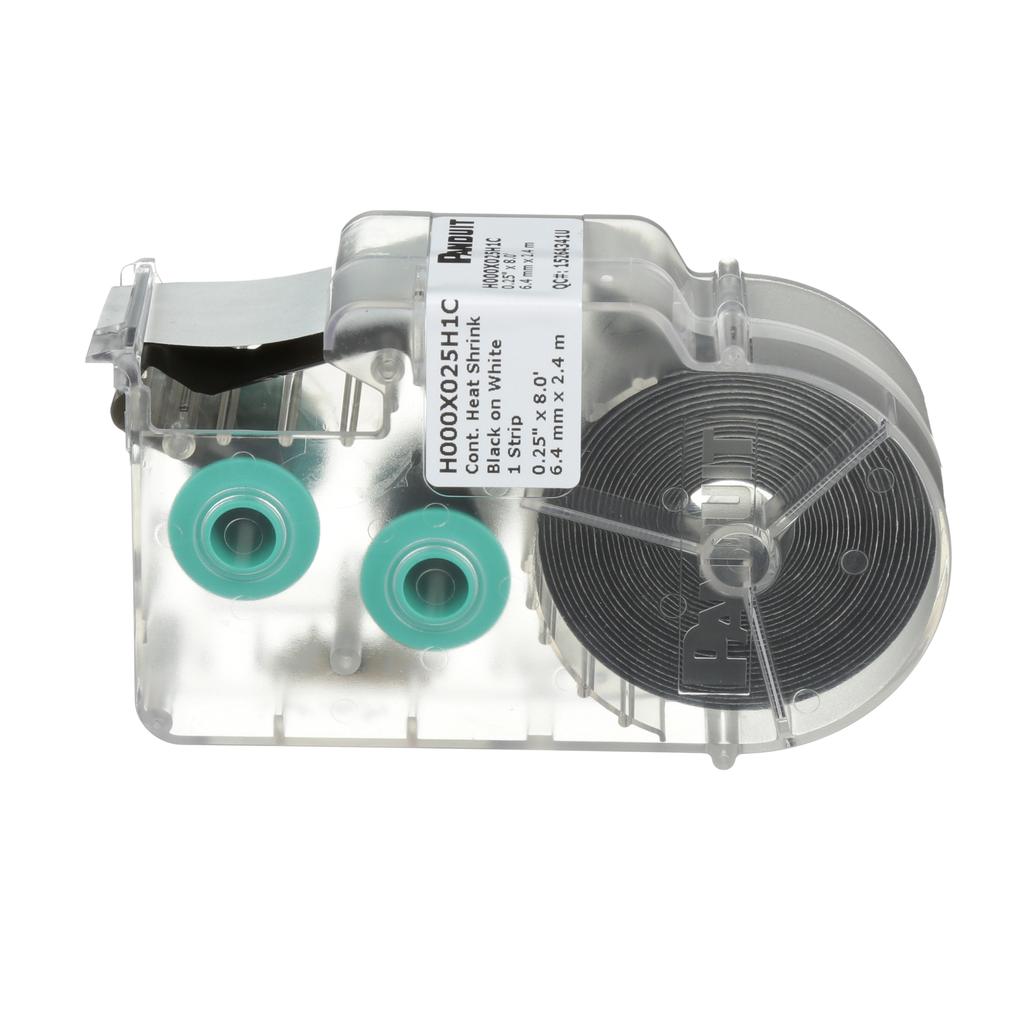

The H000X025H1C Military-Grade Polyolefin Continuous Heat-Shrink Label Cassette can be cut-to-length and contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 0.25" x 8' (6.4 mm x 2.4 m) Cable diameter 0.04" - 0.13" (1 mm - 3.3 mm) Color White. 1 cassette
QTY
  • Product Description
  • Features
  • Specifications
The H000X025H1C Military-Grade Polyolefin Continuous Heat-Shrink Label Cassette can be cut-to-length and contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining in the cassette. Compatible with Easy-Mark Plus™ Labeling Software. For use with LS8E and LS8EQ printers. Shrink ratio 3:1. 0.25" x 8' (6.4 mm x 2.4 m) Cable diameter 0.04" - 0.13" (1 mm - 3.3 mm) Color White. 1 cassette
  • Standards and Certifications
    • Standards Met: MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
  • Packaging Details
    • UPC : 07498366367
    • GTIN Package : 00074983663675
    • Standard Package Volume Ft3 : 0.0878
    • Standard Package Weight Pounds : 0.3150
    • Std Package Height In : 2
    • Std Package Height MM : 50.8
    • Std Package Length In : 4.3
    • Std Package Length MM : 109.22
    • Std Package Width In : 2.95
    • Std Package Width MM : 74.93
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • GTIN Carton : 50074983663670
    • Standard Carton Volume Ft3 : 0.8778
    • Standard Carton Weight Pounds : 3.1500
    • Std Carton Height In : 5.9
    • Std Carton Height MM : 149.86
    • Std Carton Length In : 10.35
    • Std Carton Length MM : 262.89
    • Std Carton Width In : 6.1
    • Std Carton Width MM : 154.94
    • Std Ctn Qty : 10
    • Min. Order UOM : Piece
    • EAN : 00074983663675
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 10.0000
    • Pallet Quantity : 1,400
    • Pallet Volume : 122.890914
    • Pallet Weight : 441.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Costa Rica
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Label Application : Cable & Wire Marking
    • Product Type : Heat Shrink Label
    • Maximum Cable Diameter (In.) : 0.13
    • Material : Polyolefin
    • Overall Width (mm) : 6.4
    • Minimum Operating Temperature (°C) : -55
    • Minimum Cable Diameter (In.) : 0.04
    • Maximum Operating Temperature (°C) : 135
    • Label Height (In.) : 0.25
    • Sub Brand : P1™
    • Maximum Cable Diameter (mm) : 3.3
    • Minimum Cable Diameter (mm) : 1
    • Overall Width (In.) : 0.25
    • Roll Length (m) : 2.44
    • Color : White
    • Label Height (mm) : 6.4
    • Maximum Operating Temperature (°F) : 275
    • Minimum Operating Temperature (°F) : -67
    • Resistance Properties : Military Grade
    • Roll Length (ft.) : 8
    • Note : For use with LS8E and LS8EQ printers
    • Compatible Wire Gauge : 22-18 AWG
