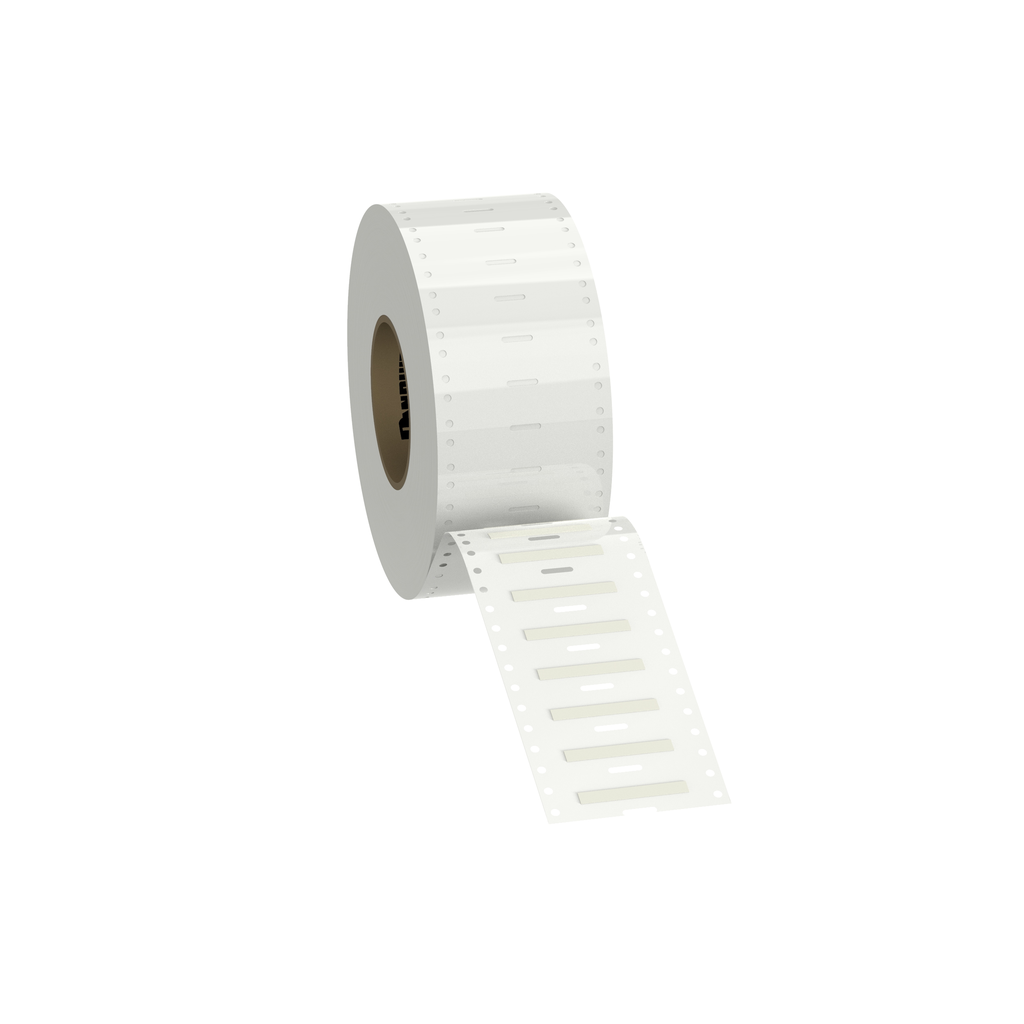

H100X034H1T-B Heatshrink, PO, White, Mil Grade, 5000 Lbls, TT, 0.34"x1"

HS TUBING 3/16 X 1 X 11/32 WHT

PANH100X034H1TB H100X034H1T-B 074983522255
2314.17 / EA
http://schema.org/OutOfStock
Mayer-DDS-H100X034H1T-B Heatshrink, PO, White, Mil Grade, 5000 Lbls, TT, 0.34"x1"-1
  • Height: 0.34 in, 8.6 mm
  • Material: Polyolefin
  • Max. Operating Temperature: 135 °C, 275 °F
  • Min. Operating Temperature: -55 °C, -67 °F
  • Type: Heat Shrink Label
  • Width: 1 in, 25.4 mm
The H100X034H1T-B Military-Grade Polyolefin Heat-Shrink Label is single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Shrink ratio 3:1. 0.34" x 1" (8.6 mm x 25.4 mm). Color White. 5000 labels per roll.
QTY
  • Product Description
  • Features
  • Specifications
The H100X034H1T-B Military-Grade Polyolefin Heat-Shrink Label is single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Shrink ratio 3:1. 0.34" x 1" (8.6 mm x 25.4 mm). Color White. 5000 labels per roll.
  • Standards and Certifications
    • Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
  • Packaging Details
    • UPC : 07498352225
    • GTIN Package : 00074983522255
    • Standard Package Volume Ft3 : 0.3402
    • Standard Package Weight Pounds : 5.3500
    • Std Package Height In : 10.9
    • Std Package Height MM : 276.86
    • Std Package Length In : 11.5
    • Std Package Length MM : 292.1
    • Std Package Width In : 5.1
    • Std Package Width MM : 129.54
    • Std. Pkg. UOM : Roll
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Roll
    • EAN : 00074983522255
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 96
    • Pallet Volume : 0.000000
    • Pallet Weight : 513.6000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : United States
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Minimum Operating Temperature (°F) : -67
    • Color : White
    • Maximum Operating Temperature (°F) : 275
    • Label Application : Cable & Wire Marking
    • Material : Polyolefin
    • Number of Labels : 5000
    • Diameter (In.) : 0.19
    • Printer Type : Thermal Transfer
    • Product Type : Heat Shrink Label
    • Label Property : Flammability, Fluid Resistance, Harsh Environments, Military Grade
    • Flammability Rating : VW-1
    • Number of Labels per Row : 2
    • Maximum Operating Temperature (°C) : 135
    • Overall Width (mm) : 25.4
    • Diameter (mm) : 4.8
    • Minimum Operating Temperature (°C) : -55
    • Overall Height (In.) : 0.34
    • Overall Width (In.) : 1
    • Resistance Properties : Military Grade
    • Number of Sides : 1
    • Overall Height (mm) : 8.6
    • Label Dimensions (In.) : 1W x 0.34H
    • Compatible Wire Gauge : 18-12 AWG
