Dry-Shrink™ HSTT100-48-5 Heatshrink, Black, PO, 4' L, 1" to 0.5" ID, PK5

HS TUBING 1 X 48 BLK

PANHSTT100485 HSTT100-48-5 074983905959
7.36 / EA
http://schema.org/OutOfStock
Mayer-DDS-Dry-Shrink™ HSTT100-48-5 Heatshrink, Black, PO, 4' L, 1" to 0.5" ID, PK5-1
  • Country of Origin: South Korea
  • Material: Polyolefin
  • Max. Operating Temperature: 135 °C, 275 °F
  • Min. Operating Temperature: -55 °C, -67 °F
  • Overall Length: 1.2 m, 1219.2 mm, 4 ft, 48 in
  • Type: Heat Shrink Tubing

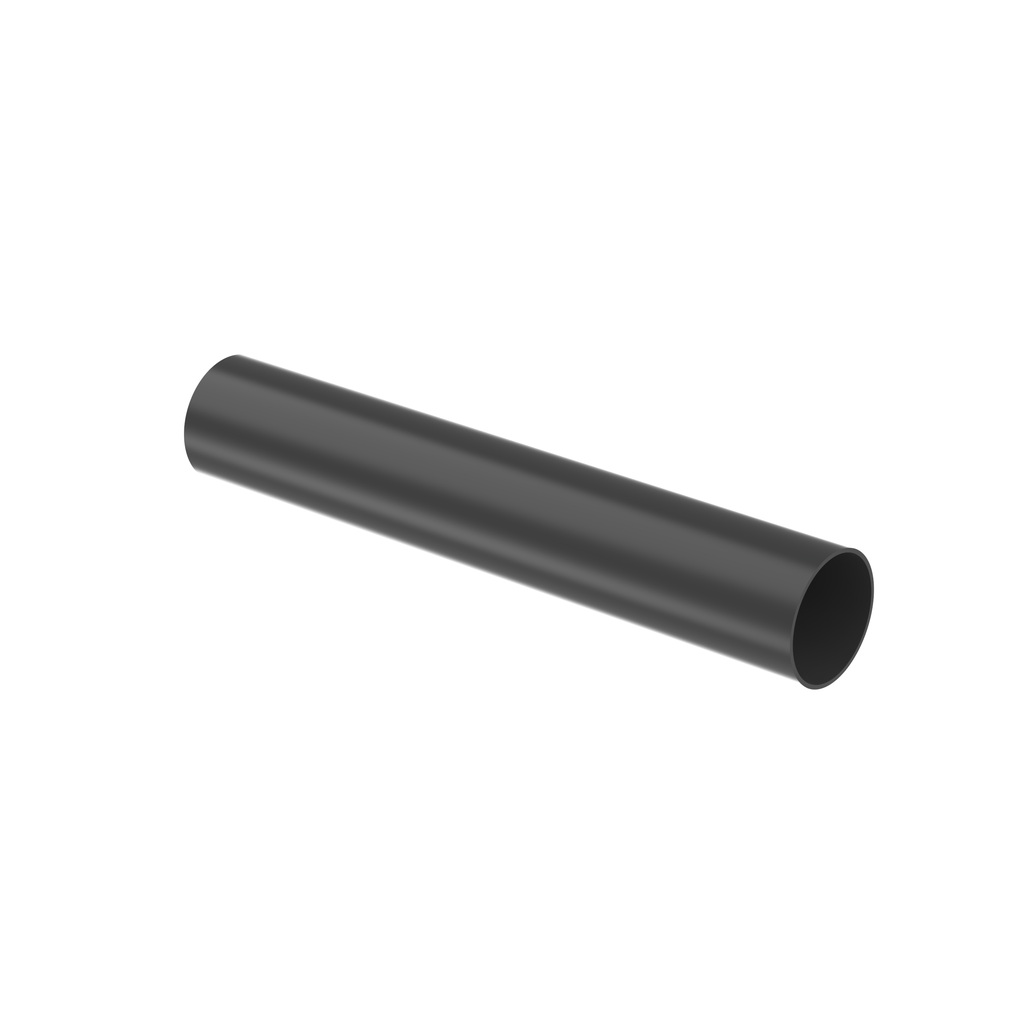

The HSTT100-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 1.00” D x 4’ L (25.4 mm x 1.2 m). Color Black. 5 per package.
QTY
  • Product Description
  • Specifications
The HSTT100-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 1.00” D x 4’ L (25.4 mm x 1.2 m). Color Black. 5 per package.
  • Packaging Details
    • UPC : 07498390595
    • GTIN Package : 00074983905959
    • Standard Package Volume Ft3 : 0.3893
    • Standard Package Weight Pounds : 1.3500
    • Std Package Height In : 3.6
    • Std Package Height MM : 91.44
    • Std Package Length In : 49.5
    • Std Package Length MM : 1257.3
    • Std Package Width In : 3.8
    • Std Package Width MM : 96.52
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 5
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : KR
    • RoHS Compliant : Compliant
    • EAN : 00074983905959
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : N
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 5
    • Pallet Quantity : 770
    • Pallet Weight : 207.9000
  • Specifications
    • Product Segment : IEI
    • Product Type : Heat Shrink Tubing
    • Adhesive Lined : No
    • Color : Black
    • Material : Cross-Linked Polyolefin
    • Maximum Operating Temperature (°C) : 135
    • Maximum Operating Temperature (°F) : 275
    • Minimum Operating Temperature (°C) : -55
    • Minimum Operating Temperature (°F) : -67
    • Nominal Diameter (mm) : 25.4
    • Nominal Diameter (In.) : 1
    • Nominal Recovered Wall Thickness (In.) : 0.035
    • Nominal Recovered Wall Thickness (mm) : 0.9
    • Sub Brand : Dry-Shrink™
    • Overall Length (m) : 1.2
    • Overall Length (In.) : 48
    • Overall Length (mm) : 1219.2
    • Overall Length (ft.) : 4
    • Resistance Properties : Flame-Retardant
    • Standards Met : UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
    • Shrink Ratio : 2:1
    • Shrink Temperature (°C) : 90
    • Shrink Temperature (°F) : 194
    • Maximum Recovered Inside Diameter (mm) : 12.7
    • Maximum Recovered Inside Diameter (In.) : 0.5
    • Minimum Expanded Inside Diameter (mm) : 25.4
    • Minimum Expanded Inside Diameter (In.) : 1
    • Application : For Dry Locations; Insulating and protecting wires and cables
