Fir Tree Push Mount, HS PA6.6, 0.28" Max Panel PK1000

FIR TREE PUSH MOUNT 0.28IN

PANPUM071M30 PUM-071-M30 074983907915
0.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-Fir Tree Push Mount, HS PA6.6, 0.28" Max Panel PK1000-1
  • Environment: Indoor
  • Height: 0.67 in, 16.9 mm
  • Material: Nylon
  • Max. Operating Temperature: 115 °C, 239 °F
  • Min. Operating Temperature: -60 °C, -76 °F
  • Mounting Type: Fir Tree Mount
  • Overall Length: 0.65 in, 16.5 mm
  • Tensile Strength: 222 lb
  • Type: Cable Tie Mount
  • Width: 0.65 in, 16.5 mm

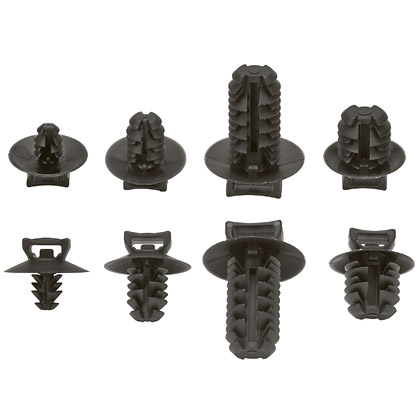

Panduit PUM-071-C30 Fir Tree Push Mounts have a unique alternating barb design that allows it to lock securely into position, providing increased retention and lower insertion force. This mount has a panel hole diameter range of 0.25"-0.28" (6.3mm-7.1mm), and panel thickness up to 0.28" (7mm). For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Heat-Stabilized Nylon 6.6, they are black in color and come in packages of 1000.
QTY
  • Product Description
  • Features
  • Specifications
Panduit PUM-071-C30 Fir Tree Push Mounts have a unique alternating barb design that allows it to lock securely into position, providing increased retention and lower insertion force. This mount has a panel hole diameter range of 0.25"-0.28" (6.3mm-7.1mm), and panel thickness up to 0.28" (7mm). For use in indoor environments and with miniature, intermediate and standard cable ties. Made of Heat-Stabilized Nylon 6.6, they are black in color and come in packages of 1000.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: Chemical Resistance at 21 ° C (70 ° F): Excellent Resistance to Common Transportation Fluids Including: Ethylene Glycol, Gasoline, Jet Fuel, Hydraulic Fluid, Transmission Fluids and 10% Sodium Chloride Solution, Environmental Compliance: Meets 2000/53/Ec
  • Packaging Details
    • UPC : 07498390791
    • GTIN Package : 00074983907915
    • Standard Package Volume Ft3 : 0.1410
    • Standard Package Weight Pounds : 1.4800
    • Std Package Height In : 3.3
    • Std Package Height MM : 83.82
    • Std Package Length In : 9.95
    • Std Package Length MM : 252.73
    • Std Package Width In : 7.15
    • Std Package Width MM : 181.61
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • GTIN Carton : 50074983907910
    • Standard Carton Volume Ft3 : 0.7051
    • Standard Carton Weight Pounds : 7.4000
    • Std Carton Height In : 9.6
    • Std Carton Height MM : 243.84
    • Std Carton Length In : 14.35
    • Std Carton Length MM : 364.49
    • Std Carton Width In : 8.95
    • Std Carton Width MM : 227.33
    • Std Ctn Qty : 5000
    • Min. Order UOM : Piece
    • EAN : 00074983907915
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
    • Pallet Quantity : 300,000
    • Pallet Volume : 42.304688
    • Pallet Weight : 444.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Costa Rica
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Resistance Properties : Heat-Resistant
    • Maximum Operating Temperature (°C) : 115
    • Minimum Loop Tensile Strength (N) : 222
    • Overall Height (In.) : 0.67
    • Overall Length (In.) : 0.65
    • Minimum Operating Temperature (°C) : -60
    • Overall Height (mm) : 16.9
    • Minimum Loop Tensile Strength (lb) : 50
    • Maximum Compatible Panel Thickness (mm) : 7
    • Product Type : Cable Tie Mount
    • Maximum Compatible Panel Thickness (In.) : 0.28
    • Minimum Operating Temperature (°F) : -76
    • Overall Length (mm) : 16.5
    • Environment : Indoor
    • Overall Width (mm) : 16.5
    • For Use With : Miniature, Intermediate, Standard Cross-Section Ties
    • Material : Nylon 6.6
    • Overall Width (In.) : 0.65
    • Mount Method : Fir Tree Mount
    • Color : Black
    • Application : They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets
    • Maximum Operating Temperature (°F) : 239
    • Flammability Rating : UL 94 V-2
    • Material Properties : Heat-Stabilized
    • Material Description : Nylon 6.6 (Heat-Resistant)
