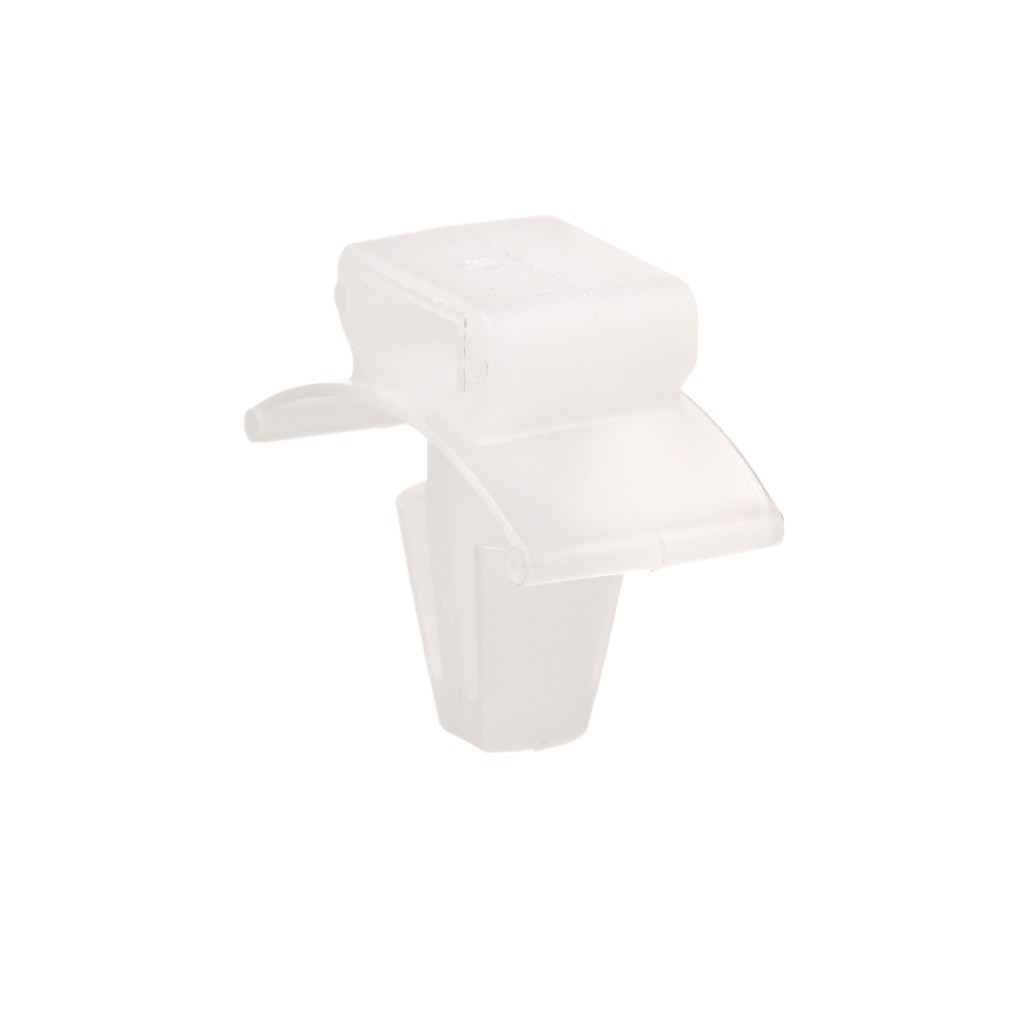

PWMS-H25-M Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.37", PK1000

CABLE TIE MNT WINGED PUSH THRU

PANPWMSH25M PWMS-H25-M 074983583751
0.32 / EA
http://schema.org/OutOfStock
Mayer-DDS-PWMS-H25-M Cable Tie Mount, Natural, PA 6.6, Push Barb, 0.71x0.37", PK1000-2
  • Country of Origin: USA
  • Environment: Indoor
  • Height: 0.62 in, 15.7 mm
  • Material: Nylon
  • Max. Operating Temperature: 185 °F, 85 °C
  • Min. Operating Temperature: -60 °C, -76 °F
  • Mounting Type: Push Barb
  • Overall Length: 0.71 in, 18 mm
  • Type: Cable Tie Mount
  • Width: 0.37 in, 9.3 mm
Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229" to .255" (5.8mm - 6.5mm) and for maximum panel thickness of .105" (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use with miniature, intermediate, and standard cross-section cable ties. They are natural in color and come in packages of 1000.
QTY
  • Product Description
  • Specifications
Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229" to .255" (5.8mm - 6.5mm) and for maximum panel thickness of .105" (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use with miniature, intermediate, and standard cross-section cable ties. They are natural in color and come in packages of 1000.
  • Packaging Details
    • UPC : 07498358375
    • GTIN Package : 00074983583751
    • Standard Package Volume Ft3 : 0.1410
    • Standard Package Weight Pounds : 1.5000
    • Std Package Height In : 3.1
    • Std Package Height MM : 78.74
    • Std Package Length In : 9.6
    • Std Package Length MM : 243.84
    • Std Package Width In : 7.2
    • Std Package Width MM : 182.88
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • GTIN Carton : 50074983583756
    • Standard Carton Volume Ft3 : 0.7051
    • Standard Carton Weight Pounds : 7.5000
    • Std Carton Height In : 9.7
    • Std Carton Height MM : 246.38
    • Std Carton Length In : 14.35
    • Std Carton Length MM : 364.49
    • Std Carton Width In : 9.2
    • Std Carton Width MM : 233.68
    • Std Ctn Qty : 5000
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983583751
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000
    • Pallet Quantity : 260,000
    • Pallet Volume : 36.664063
    • Pallet Weight : 390.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Cable Tie Mount
    • Application : Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
    • Color : Natural
    • Environment : Indoor
    • Material : Nylon 6.6
    • Maximum Compatible Panel Thickness (In.) : 0.11
    • Maximum Compatible Panel Thickness (mm) : 2.8
    • Maximum Operating Temperature (°C) : 85
    • Maximum Operating Temperature (°F) : 185
    • Minimum Operating Temperature (°C) : -60
    • Minimum Operating Temperature (°F) : -76
    • Mount Method : Push Barb
    • Overall Height (mm) : 15.7
    • Overall Height (In.) : 0.62
    • Overall Length (mm) : 18
    • Overall Length (In.) : 0.71
    • Overall Width (In.) : 0.37
    • Overall Width (mm) : 9.3
    • Standards Met : CE Compliant,UL Recognized: E136577, RoHS Compliant
    • For Use With : Miniature, Intermediate, Standard Cross-Section Ties
