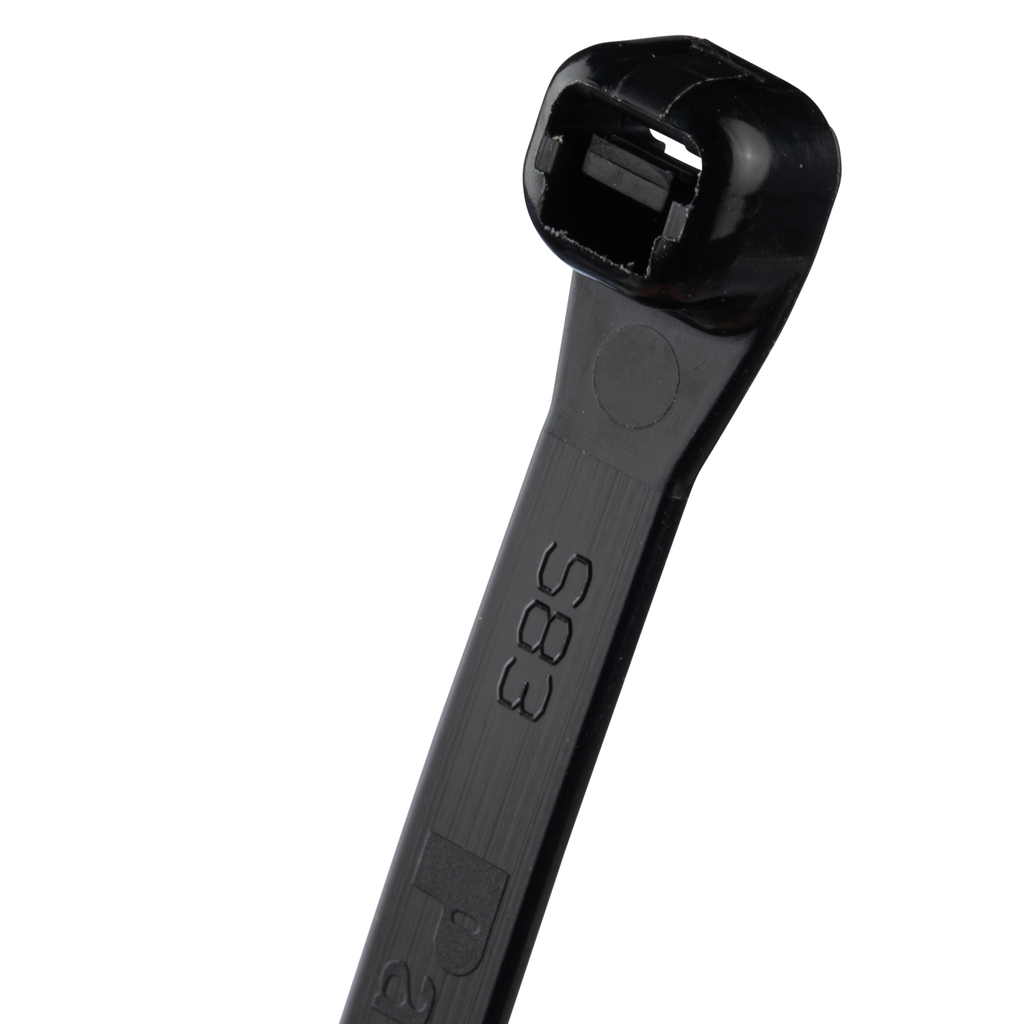

Cable Tie, Black, UV PA6.6, 18.6"L (471mm), 175lb, PK100

SPRGRIPTIE WR NYL H 18.6 TS778

PANSG450HC0 SG450H-C0 074983784219
1.08 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable Tie, Black, UV PA6.6, 18.6"L (471mm), 175lb, PK100-1
  • Body Thickness: 0.068 in, 1.7 mm
  • Body Width: 0.38 in, 9.7 mm
  • Environment: Indoor, Outdoor
  • Material: Nylon
  • Max. Bundle Diameter: 5.2 in
  • Max. Operating Temperature: 185 °F, 85 °C
  • Min. Operating Temperature: -60 °C, -76 °F
  • Overall Length: 18.6 in, 471 mm
  • Tensile Strength: 778 lb
  • Type: Cable Tie
The Super-Grip® SG450H-C0 cable tie provides secure outdoor bundling for routing and organization where UV resistance is required. Heavy style, 18.6 in (471mm) long with 175 lb (778 N) minimum loop tensile strength and a 0.188–5.2 in (4.8–132.1mm) bundle diameter range. It is black Nylon 6.6 (UV-Resistant). Operating range -76 to 185°F (-60 to 85°C). Use with GTH-E, GS4H-E, GS4EH-E, PTH, STH2, and ST3EH tools for installation and tensioning.
QTY
  • Product Description
  • Features
  • Specifications
The Super-Grip® SG450H-C0 cable tie provides secure outdoor bundling for routing and organization where UV resistance is required. Heavy style, 18.6 in (471mm) long with 175 lb (778 N) minimum loop tensile strength and a 0.188–5.2 in (4.8–132.1mm) bundle diameter range. It is black Nylon 6.6 (UV-Resistant). Operating range -76 to 185°F (-60 to 85°C). Use with GTH-E, GS4H-E, GS4EH-E, PTH, STH2, and ST3EH tools for installation and tensioning.
  • Standards and Certifications
    • Standards Met: CSA Certified, UL Listed (File #E56854), RoHS Compliant
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498378421
    • GTIN Package : 00074983784219
    • Standard Package Volume Ft3 : 0.1091
    • Standard Package Weight Pounds : 1.8775
    • Std Package Height In : .1
    • Std Package Height MM : 2.54
    • Std Package Length In : 26
    • Std Package Length MM : 660.4
    • Std Package Width In : 10
    • Std Package Width MM : 254
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983784214
    • Standard Carton Volume Ft3 : 2.1822
    • Standard Carton Weight Pounds : 37.5500
    • Std Carton Height In : 15.91
    • Std Carton Height MM : 404.114
    • Std Carton Length In : 22.96
    • Std Carton Length MM : 583.184
    • Std Carton Width In : 10.46
    • Std Carton Width MM : 265.684
    • Std Ctn Qty : 2000
    • Min. Order UOM : Piece
    • EAN : 00074983784219
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 500.0000
    • Pallet Quantity : 48,000
    • Pallet Volume : 52.372833
    • Pallet Weight : 901.2000
    • RoHS Compliant : Compliant
  • Specifications
    • Country of Origin : Malaysia
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • For Use With : GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
    • Maximum Bundle Diameter (In.) : 5.2
    • Minimum Loop Tensile Strength (N) : 778
    • Environment : Indoor/Outdoor
    • Sub Brand : Super-Grip®
    • Minimum Operating Temperature (°F) : -76
    • Minimum Loop Tensile Strength (lb) : 175
    • Maximum Bundle Diameter (mm) : 132.1
    • Maximum Operating Temperature (°F) : 185
    • Minimum Bundle Diameter (mm) : 4.8
    • Body Width (mm) : 9.7
    • Minimum Operating Temperature (°C) : -60
    • Minimum Installation Temperature (°C) : 70
    • Body Thickness (mm) : 1.7
    • Overall Length (In.) : 18.6
    • Minimum Installation Temperature (°F) : -40
    • Body Width (In.) : 0.38
    • Body Thickness (In.) : 0.068
    • Resistance Properties : UV-Resistant, Weather-Resistant
    • Minimum Bundle Diameter (In.) : 0.19
    • Overall Length (mm) : 471
    • Material : Nylon 6.6
    • Application : General
    • Product Type : Cable Tie
    • Maximum Operating Temperature (°C) : 85
    • Color : Black
    • Material Description : Nylon 6.6 (UV-Resistant, Weather-Resistant)
    • Flammability Rating : UL 94 V-2
