Conductor Type:
Solid
-
Country of Origin:
USA
-
Environment:
Indoor
-
Jacket Material:
PVC
-
Max. Operating Temperature:
194 °F, 90 °C
-
Min. Operating Temperature:
-20 °C, -4 °F
-
Number of Pairs:
4
-
Overall Length:
1000 ft, 305 m
-
Type:
Copper Cable

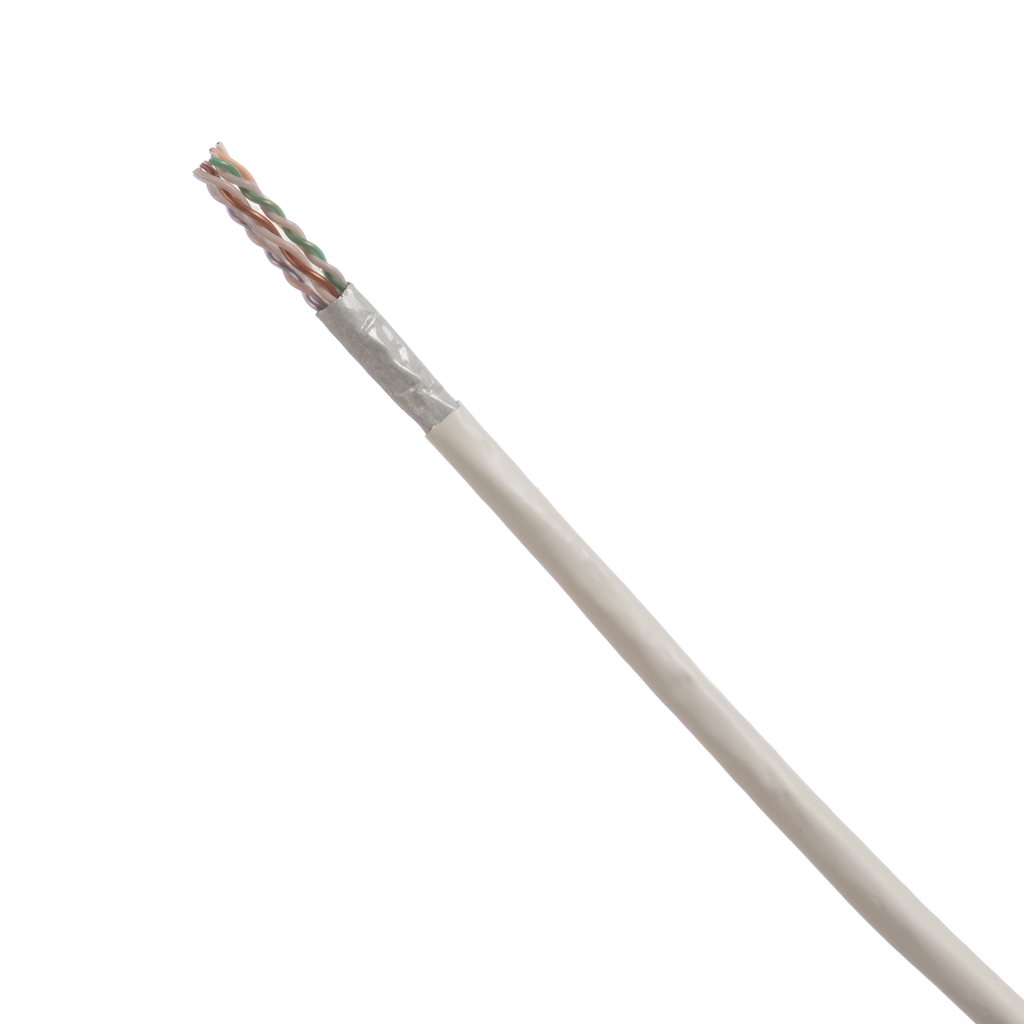

The TX6A™ Cat 6A U/UTP copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a non-conductive foil tape and a flame-retardant PVC jacket. The foil tape suppresses the effects of alien crosstalk. The blue, plenum (CMP) cable is supplied 1,000 feet (305 meters) to a reel.
