Panduit products at Mayer

ABMM-AT-C Cable Tie Mount, White, ABS, Acrylic Adh., 0.75x0.75", PK100

CABLE TIE MNT 0.75X0.75 HT WHT

PANABMMATC ABMM-AT-C 074983584949
1.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-ABMM-AT-C Cable Tie Mount, White, ABS, Acrylic Adh., 0.75x0.75", PK100-1
  • Country of Origin: USA
  • Environment: Indoor
  • Height: 0.18 in, 4.6 mm
  • Material: ABS
  • Max. Operating Temperature: 158 °F, 70 °C
  • Min. Operating Temperature: -20 °F, -29 °C
  • Mounting Type: Adhesive Tape
  • Overall Length: 0.75 in, 19.1 mm
  • Type: Cable Tie Mount
  • Width: 0.75 in, 19.1 mm

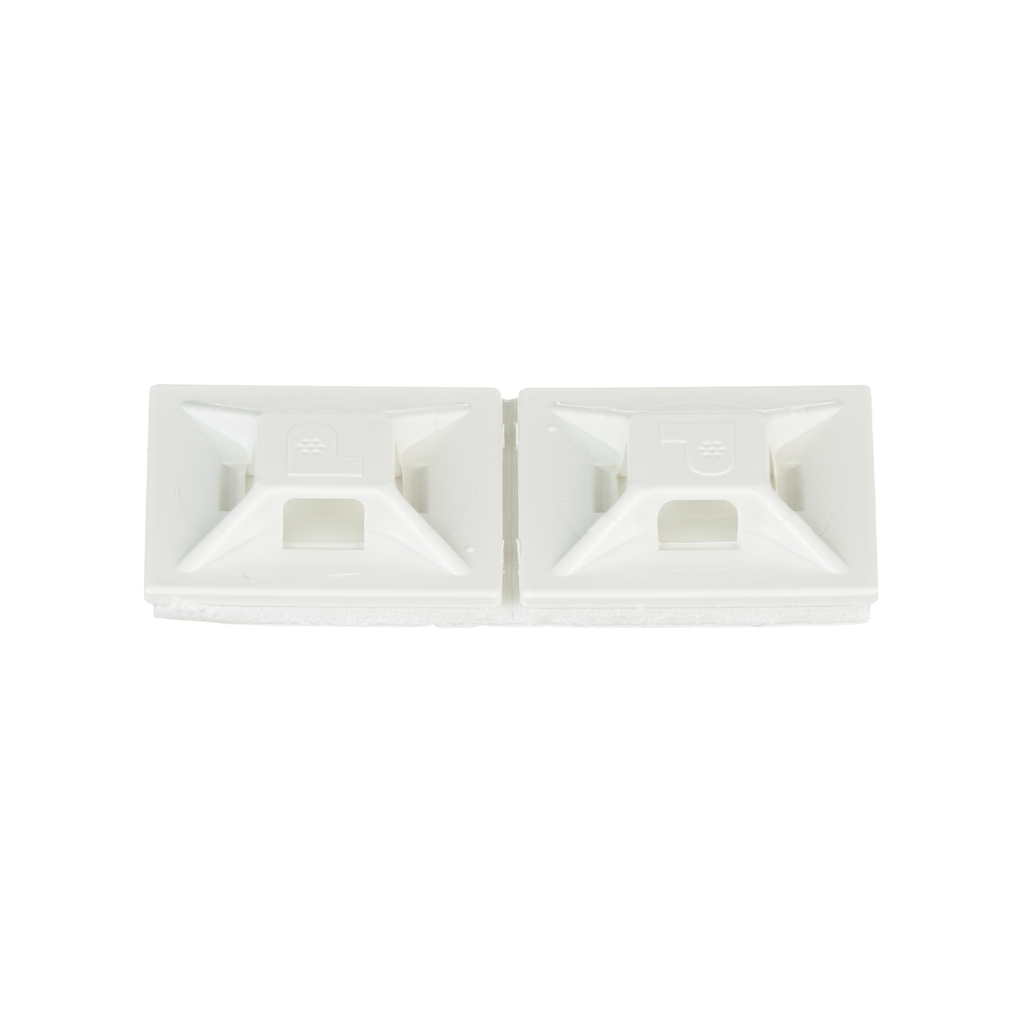

Panduit’s ABMM-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature and intermediate cable ties and are intended for use in indoor, high-temperature environments. The mounts are 0.75” x 0.75” (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 100.
QTY
  • Product Description
  • Specifications
Panduit’s ABMM-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature and intermediate cable ties and are intended for use in indoor, high-temperature environments. The mounts are 0.75” x 0.75” (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 100.
  • Specifications
    • Product Segment : IEI
    • Application : Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties
    • Product Type : Cable Tie Mount
    • Color : White
    • Environment : Indoor
    • Material : ABS
    • Maximum Compatible Panel Thickness (In.) : 0.04
    • Maximum Compatible Panel Thickness (mm) : 1
    • Maximum Operating Temperature (°C) : 70
    • Maximum Operating Temperature (°F) : 158
    • Minimum Operating Temperature (°F) : -20
    • Minimum Operating Temperature (°C) : -29
    • Mount Method : Adhesive Tape
    • Overall Height (In.) : 0.18
    • Overall Height (mm) : 4.6
    • Overall Length (In.) : 0.75
    • Overall Length (mm) : 19.1
    • Overall Width (In.) : 0.75
    • Overall Width (mm) : 19.1
    • Standards Met : CE Compliant, UL Recognized: E136577, RoHS Compliant
    • Static Load Capacity (lb) : 0.3
    • Static Load Capacity (kg) : 0.136
    • For Use With : Miniature, Intermediate Cross-Section Ties
  • Packaging Details
    • UPC : 07498358494
    • GTIN Package : 00074983584949
    • Standard Package Volume Ft3 : 0.0266
    • Standard Package Weight Pounds : 0.1800
    • Std Package Height In : 1.8
    • Std Package Height MM : 45.72
    • Std Package Length In : 6.3
    • Std Package Length MM : 160.02
    • Std Package Width In : 6.15
    • Std Package Width MM : 156.21
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983584944
    • Standard Carton Volume Ft3 : 0.1329
    • Standard Carton Weight Pounds : 0.9000
    • Std Carton Height In : 4.5
    • Std Carton Height MM : 114.3
    • Std Carton Length In : 10.05
    • Std Carton Length MM : 255.27
    • Std Carton Width In : 6.3
    • Std Carton Width MM : 160.02
    • Std Ctn Qty : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983584949
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 500
    • Pallet Quantity : 159,500
    • Pallet Volume : 42.384494
    • Pallet Weight : 287.1000
