T25R-CY Spiral Wrap, Natural, PE, 0.1875" Min Dia., PK1

SPIRAL WRAP 1/4IN 100FT NAT

PANT25RCY T25R-CY 74983396948
121.62 / EA
http://schema.org/OutOfStock
Mayer-DDS-T25R-CY Spiral Wrap, Natural, PE, 0.1875" Min Dia., PK1-1
  • Country of Origin: USA
  • Environment: Indoor
  • Material: Polyethylene
  • Max. Bundle Diameter: 2 in
  • Max. Operating Temperature: 122 °F, 50 °C
  • Min. Operating Temperature: -40 °C, -40 °F
  • Outer Diameter: 0.25 in, 6.4 mm
  • Overall Length: 100 ft, 30.5 m
  • Type: Spiral Wrap

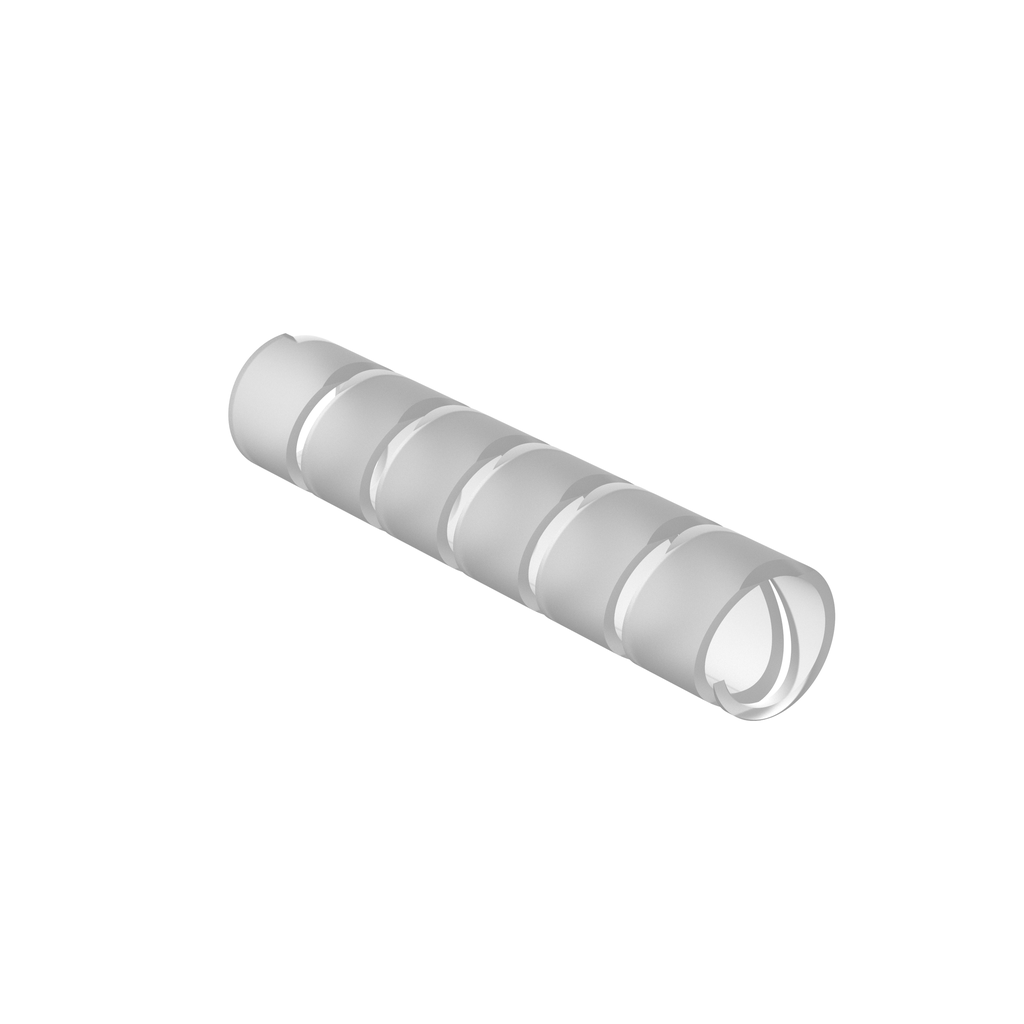

The T25R-CY Fire Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Natural.
QTY
  • Product Description
  • Specifications
The T25R-CY Fire Resistant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Natural.
  • Specifications
    • Product Segment : IEI
    • Product Type : Spiral Wrap
    • Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
    • Color : Natural
    • Environment : Indoor
    • Flammability Rating : UL94V-2
    • Material : Polyethylene
    • Resistance Properties : Abrasion-Resistant, Flame-Resistant
    • Maximum Bundle Diameter (mm) : 50.8
    • Maximum Bundle Diameter (In.) : 2
    • Minimum Bundle Diameter (In.) : 0.1875
    • Minimum Bundle Diameter (mm) : 4.8
    • Maximum Operating Temperature (°C) : 50
    • Maximum Operating Temperature (°F) : 122
    • Minimum Operating Temperature (°C) : -40
    • Minimum Operating Temperature (°F) : -40
    • Outer Diameter (mm) : 6.4
    • Outer Diameter (In.) : 0.25
    • Overall Length (ft.) : 100
    • Overall Length (m) : 30.5
    • Standards Met : UL Recognized - E141152; UL94V-2
    • Wall Thickness (In.) : 0.04
    • Wall Thickness (mm) : 1.02
  • Packaging Details
    • UPC : 07498339694
    • GTIN Package : 00074983396948
    • Standard Package Volume Ft3 : 0.2695
    • Standard Package Weight Pounds : 1.7500
    • Std Package Height In : 4.35
    • Std Package Height MM : 110.49
    • Std Package Length In : 10.5
    • Std Package Length MM : 266.7
    • Std Package Width In : 10.3
    • Std Package Width MM : 261.62
    • Std. Pkg. UOM : Roll
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Min. Order UOM : Roll
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983396948
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 160
    • Pallet Weight : 280.0000
