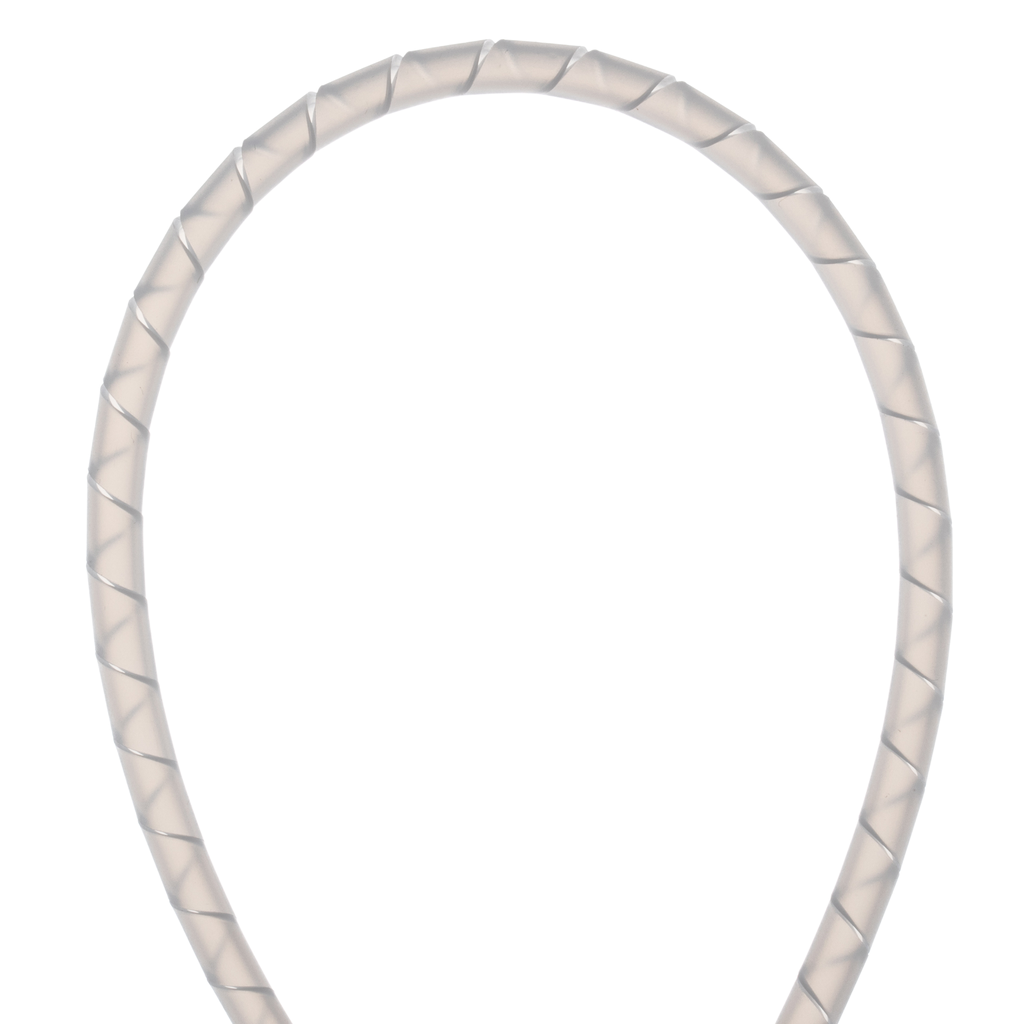

T25F-C Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1

SPIRAL WRAP 1/4IN 100FT NAT

PANT25FC T25F-C 074983705542
83.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-T25F-C Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1-1
  • Country of Origin: USA
  • Environment: Indoor
  • Material: Polyethylene
  • Max. Bundle Diameter: 2 in
  • Max. Operating Temperature: 122 °F, 50 °C
  • Min. Operating Temperature: -40 °C, -40 °F
  • Outer Diameter: 0.25 in, 6.4 mm
  • Overall Length: 100 ft, 30.48 m
  • Type: Spiral Wrap
The T25F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Natural.
QTY
  • Product Description
  • Features
  • Specifications
The T25F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Natural.
  • Standards and Certifications
    • Standards Met: UL Recognized - E141152; UL94HB
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Overall Length (ft.) : 100
    • Minimum Bundle Diameter (In.) : 0.1875
    • Resistance Properties : Abrasion-Resistant
    • Outer Diameter (mm) : 6.4
    • Color : Natural
    • Application : Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
    • Maximum Bundle Diameter (mm) : 50.8
    • Flammability Rating : UL94-HB
    • Wall Thickness (In.) : 0.04
    • Minimum Bundle Diameter (mm) : 4.8
    • Minimum Operating Temperature (°C) : -40
    • Maximum Operating Temperature (°C) : 50
    • Environment : Indoor
    • Product Type : Spiral Wrap
    • Maximum Bundle Diameter (In.) : 2
    • Wall Thickness (mm) : 1
    • Outer Diameter (In.) : 0.25
    • Material : Polyethylene
    • Maximum Operating Temperature (°F) : 122
    • Overall Length (m) : 30.48
    • Minimum Operating Temperature (°F) : -40
  • Packaging Details
    • UPC : 07498370554
    • GTIN Package : 00074983705542
    • Standard Package Volume Ft3 : 0.2695
    • Standard Package Weight Pounds : 1.8000
    • Std Package Height In : 4.35
    • Std Package Height MM : 110.49
    • Std Package Length In : 10.4
    • Std Package Length MM : 264.16
    • Std Package Width In : 10.25
    • Std Package Width MM : 260.35
    • Std. Pkg. UOM : Roll
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Roll
    • Country of Origin 2Digit : US
    • EAN : 00074983705542
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 160
    • Pallet Volume : 0.000000
    • Pallet Weight : 288.0000
    • RoHS Compliant : Compliant
