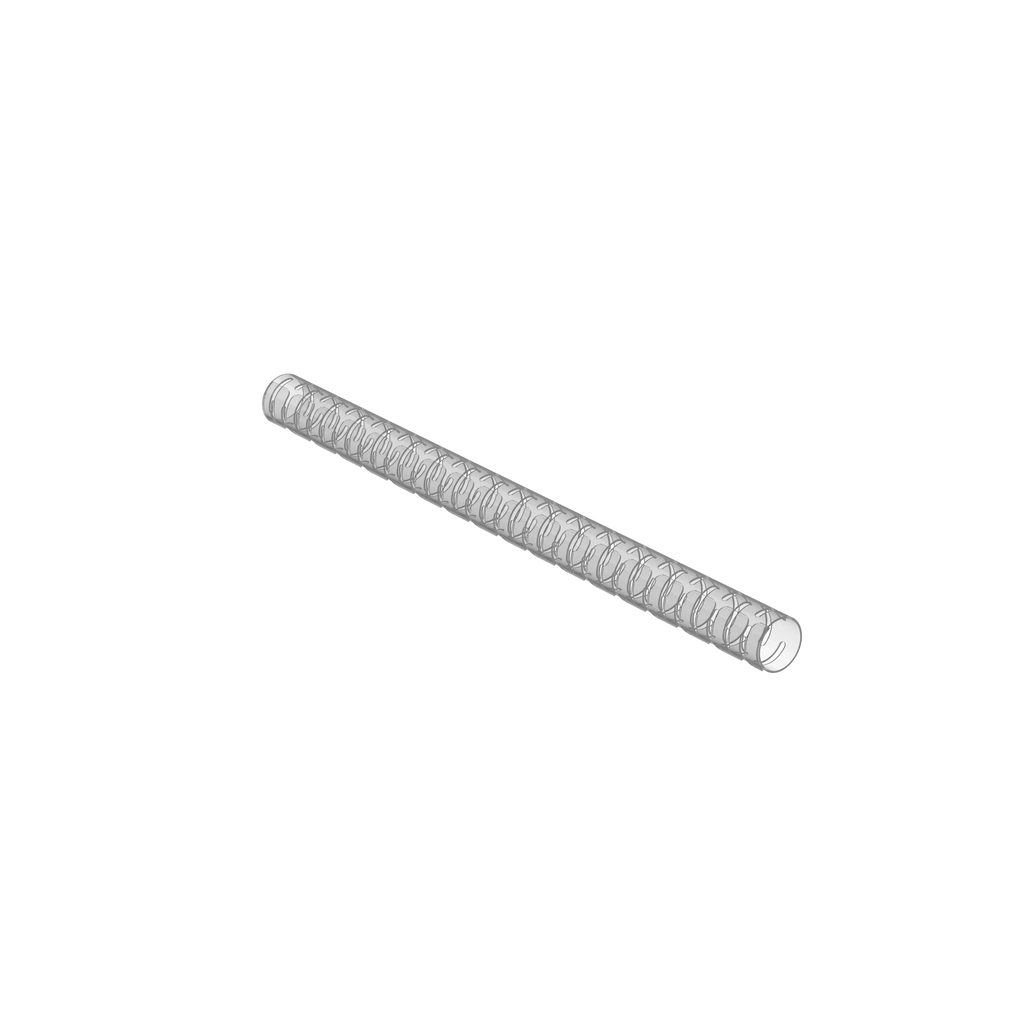

Pan-Wrap™ PW75F-C Split Harness Wrap, Natural, PE, 0.75" Nom Dia., PK1

SPLIT HARNESS WRAP 3/4IN 100FT

PANPW75FC PW75F-C 074983985807
203.12 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Wrap™ PW75F-C Split Harness Wrap, Natural, PE, 0.75" Nom Dia., PK1-1
  • Country of Origin: USA
  • Material: Polyethylene
  • Max. Bundle Diameter: 0.81 in
  • Max. Operating Temperature: 122 °F, 50 °C
  • Min. Operating Temperature: -40 °C, -40 °F
  • Overall Length: 100 ft, 30.48 m
  • Type: Split Harness Wrap
The PW75F-C Pan-Wrap Split Harness Wrap features a patented slot pattern that provides improved flexibility and abrasion protection in any application. The unique wall design is easy for cable breakouts and reduces the installation time. The large overlap accommodates a wide range of bundle diameters. Temperature range: -40°F – 122°F (-40°C – 50°C). Polyethylene. Nominal Diameter: 0.75" (19.1 mm), 100' (30.5 m) long. Color Natural. 1 per package.
QTY
  • Product Description
  • Features
  • Specifications
The PW75F-C Pan-Wrap Split Harness Wrap features a patented slot pattern that provides improved flexibility and abrasion protection in any application. The unique wall design is easy for cable breakouts and reduces the installation time. The large overlap accommodates a wide range of bundle diameters. Temperature range: -40°F – 122°F (-40°C – 50°C). Polyethylene. Nominal Diameter: 0.75" (19.1 mm), 100' (30.5 m) long. Color Natural. 1 per package.
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498398580
    • GTIN Package : 00074983985807
    • Standard Package Volume Ft3 : 2.4780
    • Standard Package Weight Pounds : 6.5000
    • Std Package Height In : 9.7
    • Std Package Height MM : 246.38
    • Std Package Length In : 21.55
    • Std Package Length MM : 547.37
    • Std Package Width In : 21.55
    • Std Package Width MM : 547.37
    • Std. Pkg. UOM : Roll
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Roll
    • Country of Origin 2Digit : US
    • EAN : 00074983985807
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 20
    • Pallet Volume : 0.000000
    • Pallet Weight : 130.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Color : Natural
    • Maximum Operating Temperature (°F) : 122
    • Minimum Bundle Diameter (In.) : 0.55
    • Maximum Bundle Diameter (mm) : 20.6
    • Minimum Operating Temperature (°F) : -40
    • Nominal Diameter (In.) : 0.75
    • Note : Compatible with PWT75 Tool
    • Nominal Diameter (mm) : 19.1
    • Application : Abrasion protection solution engineered for flexibility and maximum protection of wires and cables with considerably reduced installation time
    • Flammability Rating : UL94-HB
    • Overall Length (ft.) : 100
    • Sub Brand : Pan-Wrap™
    • Material : Polyethylene
    • Minimum Bundle Diameter (mm) : 14
    • Product Type : Split Harness Wrap
    • For Use With : PWT75 Tool
    • Minimum Operating Temperature (°C) : -40
    • Overall Length (m) : 30.48
    • Resistance Properties : Abrasion-Resistant
    • Maximum Operating Temperature (°C) : 50
    • Maximum Bundle Diameter (In.) : 0.81
