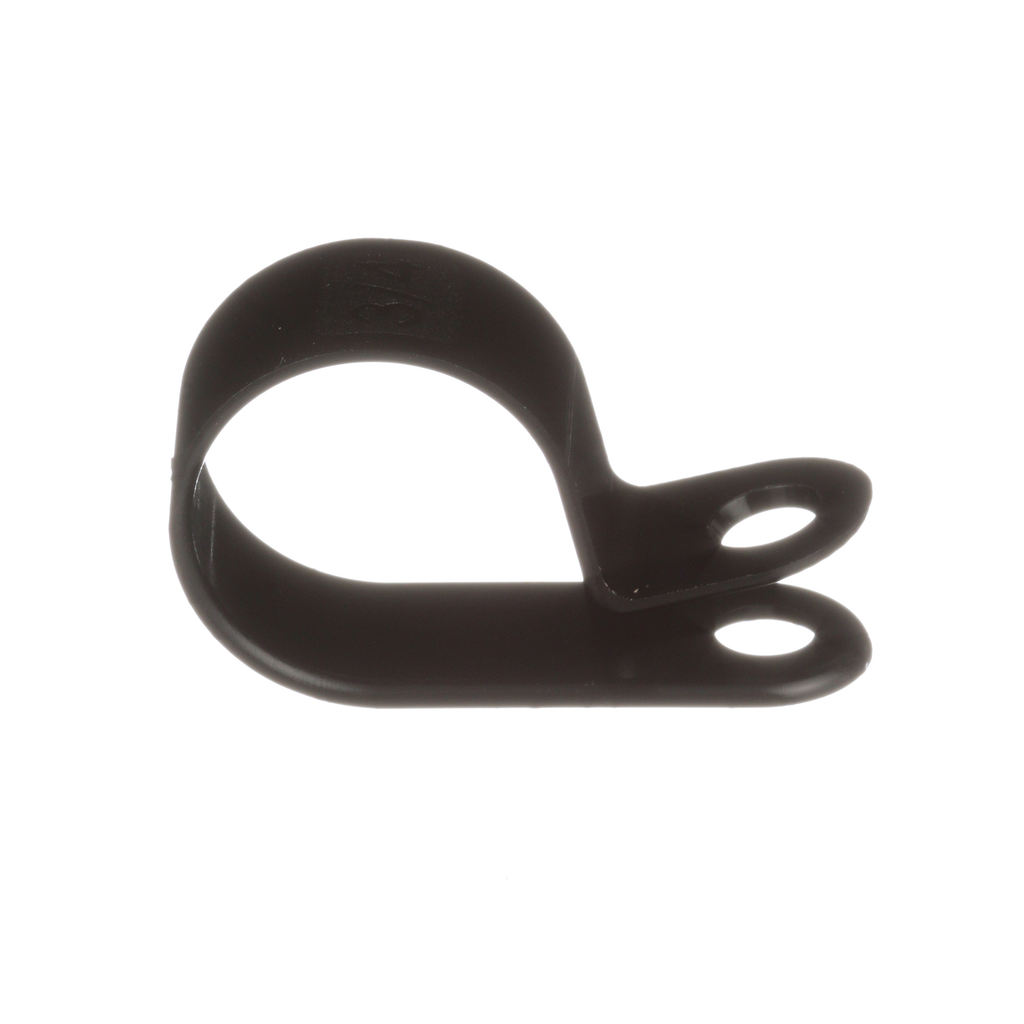

CCH25-S10-C0 Cable Clamp

CABLE CLAMP HD 0.25IN #10SCR

PANCCH25S10C0 CCH25-S10-C0 074983551477

0.34 / EA

http://schema.org/OutOfStock

Mayer-DDS-CCH25-S10-C0 Cable Clamp-1

Country of Origin: USA
Environment: Indoor, Outdoor
Height: 0.35 in, 8.9 mm
Material: Nylon
Max. Bundle Diameter: 0.25 in
Max. Operating Temperature: 185 °F, 85 °C
Min. Operating Temperature: -60 °C, -76 °F
Mounting Type: Screw-On
Overall Length: 0.635 in, 16.15 mm
Type: Cable Clamp
Width: 0.5 in, 12.7 mm

Fixed diameter cable clamp, heavy duty, #10 screw (M5), .25" (6.4mm) bundle, black, standard package.

QTY

Product Description
Specifications

Fixed diameter cable clamp, heavy duty, #10 screw (M5), .25" (6.4mm) bundle, black, standard package.

Packaging Details

UPC : 07498355147
GTIN Package : 00074983551477
Standard Package Volume Ft3 : 0.0332
Standard Package Weight Pounds : 0.2300
Std Package Height In : 1.55
Std Package Height MM : 39.37
Std Package Length In : 5.85
Std Package Length MM : 148.59
Std Package Width In : 5.7
Std Package Width MM : 144.78
Std. Pkg. UOM : Piece
UOM EA PK : PK
Std. Pkg. Qty. : 100
GTIN Carton : 50074983551472
Standard Carton Volume Ft3 : 0.1662
Standard Carton Weight Pounds : 1.1500
Std Carton Height In : 4.4
Std Carton Height MM : 111.76
Std Carton Length In : 10.05
Std Carton Length MM : 255.27
Std Carton Width In : 6.2
Std Carton Width MM : 157.48
Std Ctn Qty : 500
Min. Order UOM : Piece
Country of Origin 2Digit : US
RoHS Compliant : Compliant
EAN : 00074983551477
REACH Status : False
California Pro65 Cancer : No
ARRA Compliant : Y
Mercury Content Indicator : No
Hazardous Material Flag : N
Min Order Qty : 500
Pallet Quantity : 159,500
Pallet Volume : 53.024889
Pallet Weight : 366.8500

Specifications

Product Segment : IEI
Note : Not available in Japan
Product Type : Cable Clamp
Application : For securing wires and cables via fixed diameter clamping
Color : Black
Environment : Indoor/Outdoor
Material : Nylon 6.6
Maximum Bundle Diameter (mm) : 6.4
Maximum Bundle Diameter (In.) : 0.25
Maximum Operating Temperature (°C) : 85
Maximum Operating Temperature (°F) : 185
Minimum Operating Temperature (°F) : -76
Minimum Operating Temperature (°C) : -60
Mount Method : Screw-On
Mounting Hole Diameter (mm) : 5.1
Mounting Hole Diameter (In.) : 0.203
Overall Height (In.) : 0.35
Overall Height (mm) : 8.9
Overall Length (mm) : 16.15
Overall Length (In.) : 0.635
Overall Width (In.) : 0.5
Overall Width (mm) : 12.7
Resistance Properties : Weather-Resistant
Standards Met : UL Recognized E136577, RoHS Compliant
Maximum Flange Thickness (In.) : 0.05
Maximum Flange Thickness (mm) : 1.3
