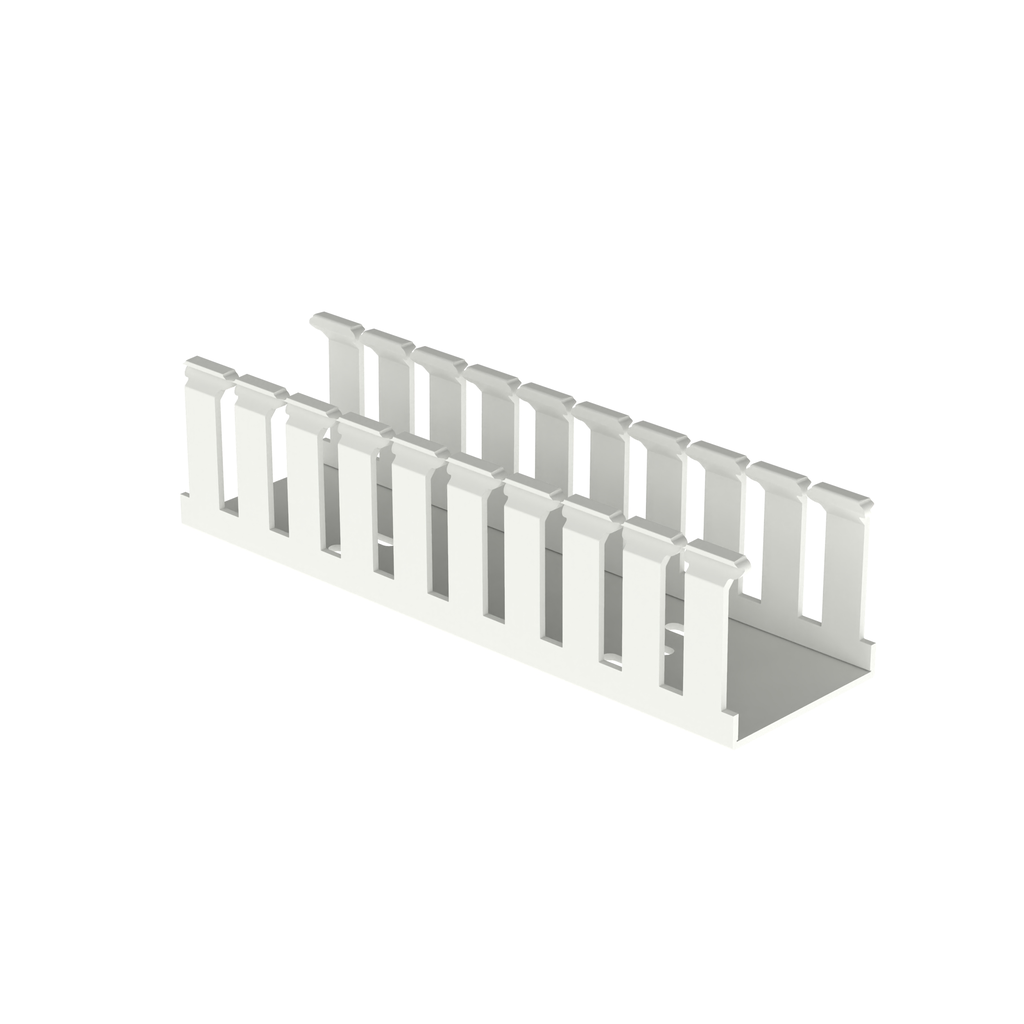

Panduct® G2X2WH6 Base Wiring Duct

WIDE SLOT DUCT 2X2 6FT WHT

PANG2X2WH6 G2X2WH6 074983546220
8.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-Panduct® G2X2WH6 Base Wiring Duct-1
  • Country of Origin: USA
  • Height: 2.12 in, 53.8 mm
  • Material: PVC
  • Mounting Type: Mounting Holes
  • Overall Length: 1.8 m, 6 ft
  • Type: Base Wiring Duct
  • Width: 2.25 in, 57.2 mm
The G2X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 2.0" (50.8 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
QTY
  • Product Description
  • Specifications
The G2X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 2.0" (50.8 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
  • Packaging Details
    • UPC : 07498354622
    • GTIN Package : 00074983546220
    • Standard Package Volume Ft3 : 0.1312
    • Standard Package Weight Pounds : 1.5450
    • Std Package Height In : 2
    • Std Package Height MM : 50.8
    • Std Package Length In : 72
    • Std Package Length MM : 1828.8
    • Std Package Width In : 2
    • Std Package Width MM : 50.8
    • Std. Pkg. UOM : Foot
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • GTIN Carton : 50074983546225
    • Standard Carton Volume Ft3 : 2.6236
    • Standard Carton Weight Pounds : 30.9000
    • Std Carton Height In : 4.7
    • Std Carton Height MM : 119.38
    • Std Carton Length In : 72.9
    • Std Carton Length MM : 1851.66
    • Std Carton Width In : 13.3
    • Std Carton Width MM : 337.82
    • Std Ctn Qty : 120
    • Min. Order UOM : Foot
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983546220
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 120
    • Pallet Quantity : 2,520
    • Pallet Volume : 55.094627
    • Pallet Weight : 648.9000
  • Specifications
    • Product Segment : IEI
    • Application : Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
    • Product Type : Base Wiring Duct
    • Color : White
    • Cover Part Number : C2WH6
    • Flammability Rating : UL94V-0
    • Standards Met : RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
    • Includes : Base Only
    • Material : PVC
    • Material Properties : Lead-Free
    • Mount Method : Mounting Holes
    • Measurement System : Metric
    • Wiring Duct Style : Wide Slot Wiring Duct
    • Wiring Duct Type : G
    • Overall Height (mm) : 53.8
    • Overall Height (In.) : 2.12
    • Overall Length (ft.) : 6
    • Overall Length (m) : 1.8
    • Overall Width (mm) : 57.2
    • Overall Width (In.) : 2.25
    • Slot Width (mm) : 7.9
    • Slot Width (In.) : 0.31
    • Sub Brand : Panduct®
