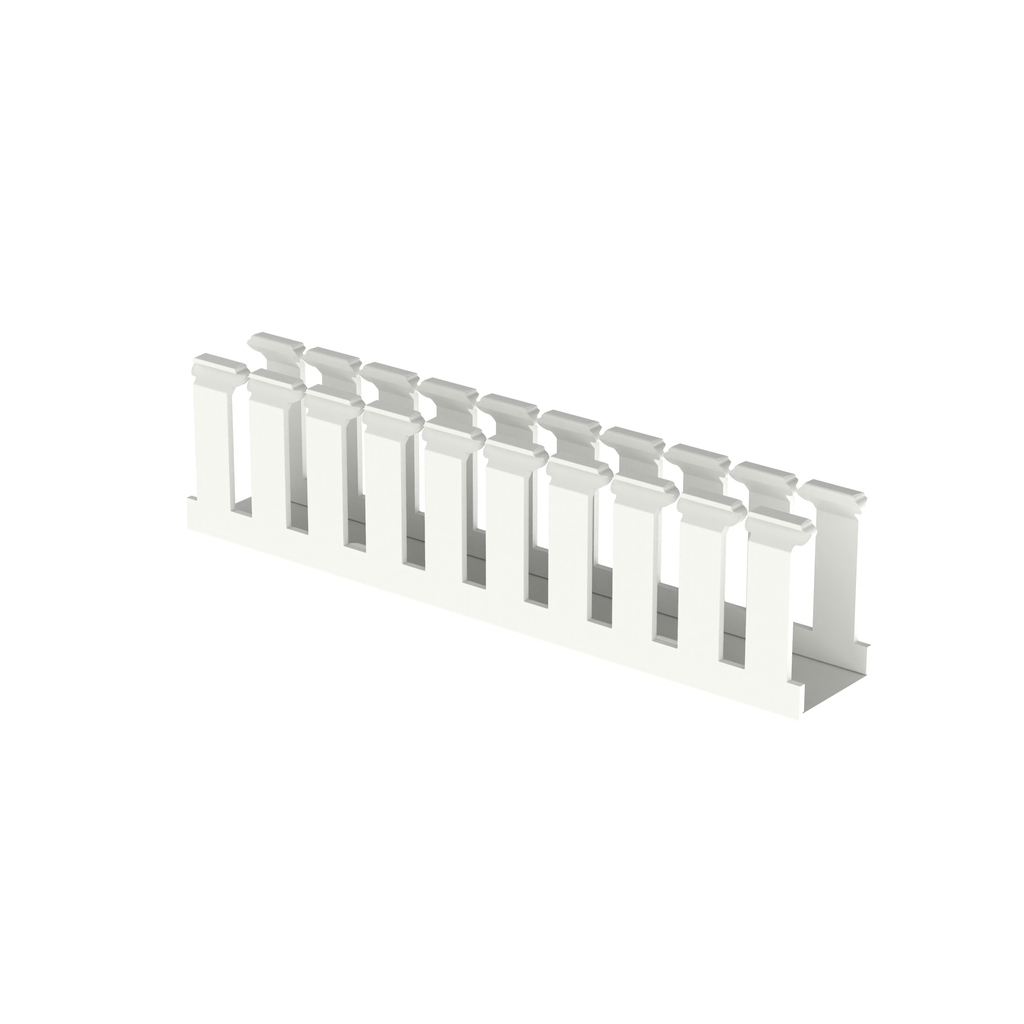

Panduct® G1X2WH6 Base Wiring Duct

WIDE SLOT DUCT 1X2 6FT WHT

PANG1X2WH6 G1X2WH6 074983545964
7.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-Panduct® G1X2WH6 Base Wiring Duct-1
  • Country of Origin: USA
  • Height: 2.12 in, 53.8 mm
  • Material: PVC
  • Mounting Type: Mounting Holes
  • Overall Length: 1.8 m, 6 ft
  • Type: Base Wiring Duct
  • Width: 1.25 in, 32 mm
The G1X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0" x 2.0" (25.4 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
QTY
  • Product Description
  • Specifications
The G1X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0" x 2.0" (25.4 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
  • Packaging Details
    • UPC : 07498354596
    • GTIN Package : 00074983545964
    • Standard Package Volume Ft3 : 0.0868
    • Standard Package Weight Pounds : 1.2750
    • Std Package Height In : 2
    • Std Package Height MM : 50.8
    • Std Package Length In : 72
    • Std Package Length MM : 1828.8
    • Std Package Width In : 1
    • Std Package Width MM : 25.4
    • Std. Pkg. UOM : Foot
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • GTIN Carton : 50074983545969
    • Standard Carton Volume Ft3 : 1.7364
    • Standard Carton Weight Pounds : 25.5000
    • Std Carton Height In : 4.9
    • Std Carton Height MM : 124.46
    • Std Carton Length In : 72.9
    • Std Carton Length MM : 1851.66
    • Std Carton Width In : 9.5
    • Std Carton Width MM : 241.3
    • Std Ctn Qty : 120
    • Min. Order UOM : Foot
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983545964
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 120
    • Pallet Quantity : 2,880
    • Pallet Volume : 41.674500
    • Pallet Weight : 612.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Base Wiring Duct
    • Application : Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
    • Color : White
    • Cover Part Number : C1WH6
    • Flammability Rating : UL94V-0
    • Includes : Base Only
    • Standards Met : RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
    • Material : PVC
    • Material Properties : Lead-Free
    • Mount Method : Mounting Holes
    • Measurement System : Metric
    • Wiring Duct Style : Wide Slot Wiring Duct
    • Wiring Duct Type : G
    • Overall Height (In.) : 2.12
    • Overall Height (mm) : 53.8
    • Overall Length (ft.) : 6
    • Overall Length (m) : 1.8
    • Overall Width (In.) : 1.25
    • Overall Width (mm) : 32
    • Slot Width (mm) : 7.9
    • Slot Width (In.) : 0.31
    • Sub Brand : Panduct®
