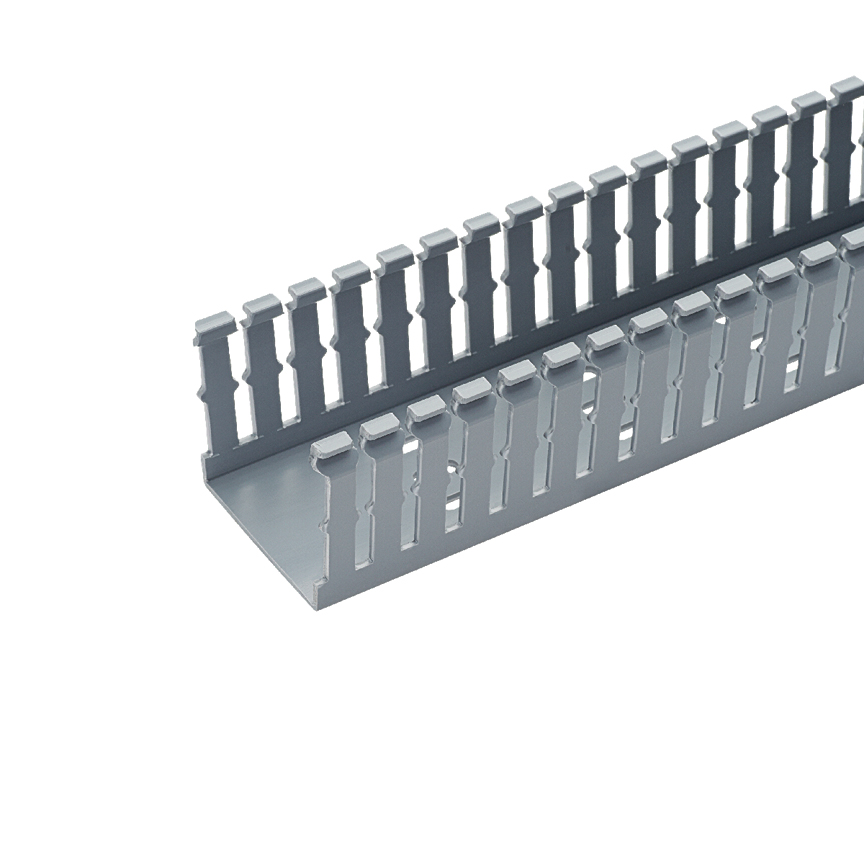

Panduct® F3X2LG6 Base Wiring Duct

NARROW SLOT DUCT 3X2 6FT GRY

PANF3X2LG6 F3X2LG6 074983375738
9.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Panduct® F3X2LG6 Base Wiring Duct-1
  • Country of Origin: USA
  • Height: 2.12 in, 53.8 mm
  • Material: PVC
  • Mounting Type: Mounting Holes
  • Overall Length: 1.8 m, 6 ft
  • Type: Base Wiring Duct
  • Width: 3.25 in, 82.6 mm
The F3X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 2" (76.2 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
QTY
  • Product Description
  • Specifications
The F3X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 2" (76.2 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
  • Specifications
    • Product Segment : IEI
    • Application : Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
    • Product Type : Base Wiring Duct
    • Color : Light Gray
    • Cover Part Number : C3LG6
    • Flammability Rating : UL94V-0
    • Includes : Base Only
    • Standards Met : RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
    • Material : PVC
    • Material Properties : Lead-Free
    • Mount Method : Mounting Holes
    • Measurement System : Imperial
    • Wiring Duct Style : Narrow Slot Wiring Duct
    • Wiring Duct Type : F
    • Overall Height (In.) : 2.12
    • Overall Height (mm) : 53.8
    • Overall Length (ft.) : 6
    • Overall Length (m) : 1.8
    • Overall Width (In.) : 3.25
    • Overall Width (mm) : 82.6
    • Slot Width (mm) : 5
    • Slot Width (In.) : 0.2
    • Sub Brand : Panduct®
  • Packaging Details
    • UPC : 07498337573
    • GTIN Package : 00074983375738
    • Standard Package Volume Ft3 : 0.1766
    • Standard Package Weight Pounds : 1.9275
    • Std Package Height In : 2
    • Std Package Height MM : 50.8
    • Std Package Length In : 72
    • Std Package Length MM : 1828.8
    • Std Package Width In : 3
    • Std Package Width MM : 76.2
    • Std. Pkg. UOM : Foot
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 6
    • GTIN Carton : 50074983375733
    • Standard Carton Volume Ft3 : 3.5311
    • Standard Carton Weight Pounds : 38.5500
    • Std Carton Height In : 4.5
    • Std Carton Height MM : 114.3
    • Std Carton Length In : 72.9
    • Std Carton Length MM : 1851.66
    • Std Carton Width In : 18.6
    • Std Carton Width MM : 472.44
    • Std Ctn Qty : 120
    • Min. Order UOM : Foot
    • Country of Origin 2Digit : US
    • RoHS Compliant : Compliant
    • EAN : 00074983375738
    • REACH Status : False
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Hazardous Material Flag : N
    • Min Order Qty : 120
    • Pallet Quantity : 1,680
    • Pallet Volume : 49.435313
    • Pallet Weight : 539.7000
