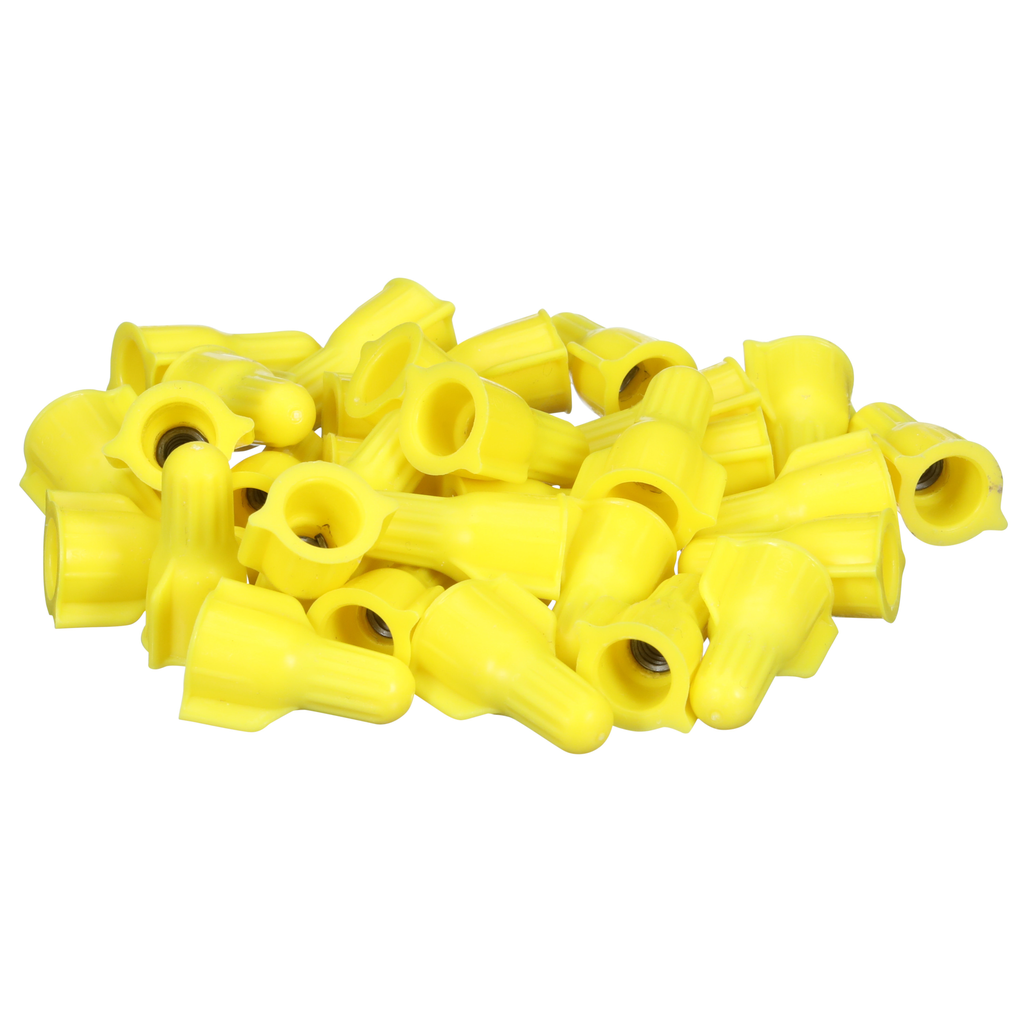

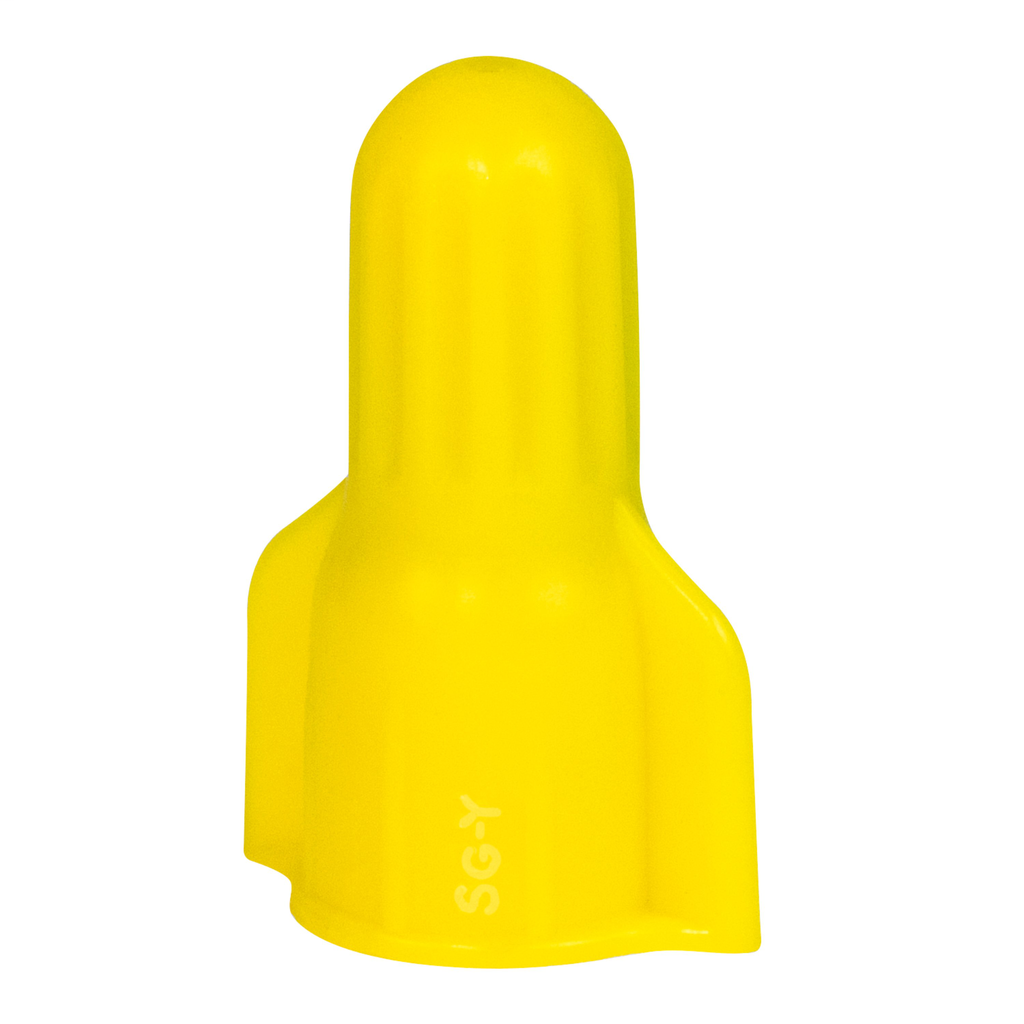

3M™ Secure Grip Wire Connector SG-Y POUCH, Yellow, 100 per pouch, 1000/Case

SECURE GRIP YELLOW WIRE CONNEC

MMMSGYPOUCH SG-Y POUCH 76308926113
0.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Secure Grip Wire Connector SG-Y POUCH, Yellow, 100 per pouch, 1000/Case-1
  • Country of Origin: China
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
3M™ Secure Grip Wire Connectors are designed to give you dependable performance for a wide range of residential and commercial wiring jobs. An internal, insulated spring delivers a powerful grip for secure, solid connections that are made to last. The slip resistant ridges and straight wing design make installation fast, simple and easy on fingers.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Secure Grip Wire Connectors are designed to give you dependable performance for a wide range of residential and commercial wiring jobs. An internal, insulated spring delivers a powerful grip for secure, solid connections that are made to last. The slip resistant ridges and straight wing design make installation fast, simple and easy on fingers.
  • Features
    • HOLDING POWER: Robust steel spring design for high performance holding power.
    • SECURE AND COMFORTABLE GRIP: Straight wings and slip-resistant ridges.
    • UL LISTED as a Wire Connector and tested per UL Standard 486C, UL File No. E23438.
    • RELIABLE CONNECTIONS: electrically connect and insulate copper conductors in a pigtail application.
    • AWG RANGE: Copper conductors only, No. 18AWG through 10AWG solid and/or stranded.
    • METRIC RANGE: Copper conductors only, 1.0mm2 thru 4.0mm2 (solid or stranded).
  • Specifications
    • Country of Origin : China
    • RDS URL (Regulatory Data Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xmYteMYtSlv70k17zHvu9lxtD7xt1evSSSSSS-
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xmYteMYtSlv70k17zHvu9lxtD7xtBevSSSSSS-
    • ETIM Class 8.0 : EC000306
    • Maximum Conductor Size (Imperial) : 12 AWG
    • Maximum Conductor Size (Metric) : 4
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Minimum Conductor Size (Imperial) : 18 AWG
    • Minimum Conductor Size (Metric) : 1 mm²
    • Product Color : Yellow
    • Voltage Rating : 600 Volt
    • Wire Connector Type : Twist-on Wire Connectors
