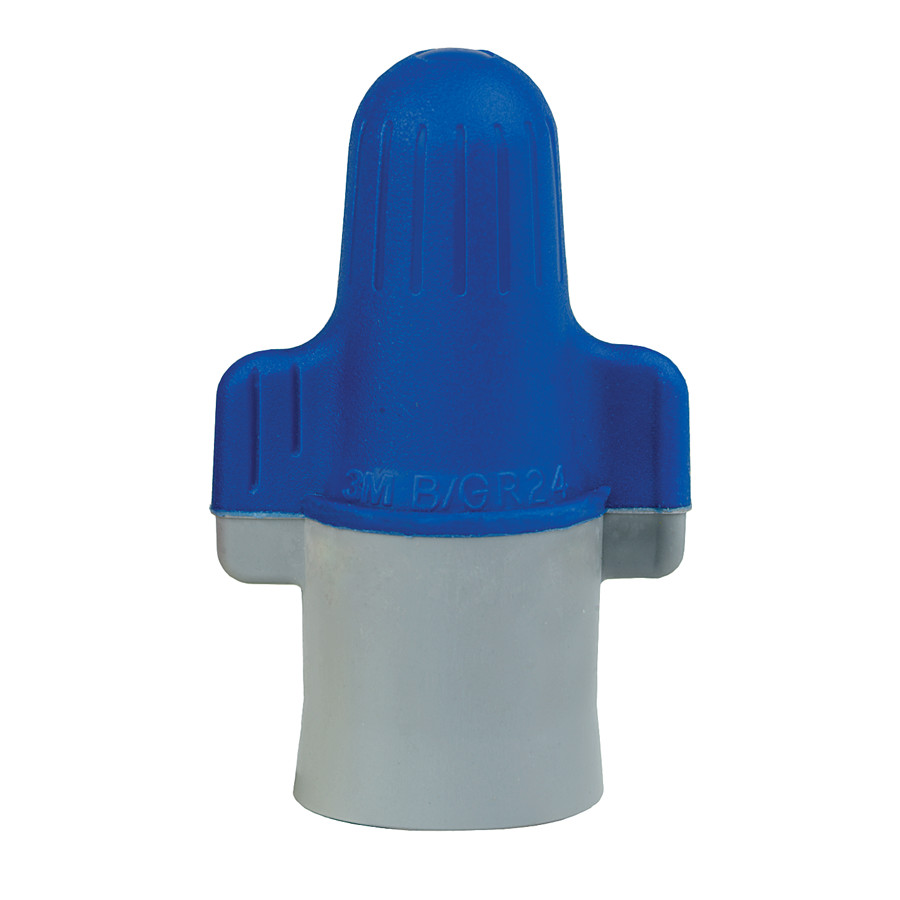

3M™ Performance Plus™ Wire Connector B/G+POUCH, 50 per Pouch, 500/Case

3M™ Performance Plus™ Wire Connector B/G+POUCH, 50 per Pouch, 500/Case

MMMBG+POUCH B/G+POUCH 054007431503
0.87 / EA
http://schema.org/OutOfStock
Mayer-DDS-3M™ Performance Plus™ Wire Connector B/G+POUCH, 50 per Pouch, 500/Case-1
  • Country of Origin: USA
  • Material: Plastic
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Product Type: Connector
  • Voltage: 750 V
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.
  • Features
    • Strong bite for a secure, reliable connection
    • Flexible spring expands for greater wire range and reuse
    • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
    • UL Listed
  • Specifications
    • Country of Origin : United States
    • Maximum Conductor Size (Imperial) : 6 AWG
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/uSWFHpinOxE=
    • Maximum Conductor Size (Metric) : 16
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xNx_9MYt9Ov70k17zHvu9lxtD7xtBevSSSSSS-
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • ETIM Class 7.0 : EC000306
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • ETIM Class 8.0 : EC000306
    • Minimum Conductor Size (Imperial) : 14 AWG
    • Minimum Conductor Size (Metric) : 2.5 mm²
    • Product Color : Blue
    • Voltage Rating : 600 Volt
    • Boxes per Case : 10.0
    • Connection Type : Wire
    • Connector Style : Twist On
    • Flame Retardant : Yes
    • Grease Filling Against Corrosion : No
    • Insulation Color : Blue/Gray
    • Insulation Material : Polypropylene & Thermoplastic Elastomer
    • Interrupt Free Shifting : No
    • Manufacturing Origin : USA
    • Material : Plastic
    • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
    • Maximum Insulation Outside Diameter : 0.145 in
    • Maximum Recommended Voltage Rating : 600.0 V
    • Maximum Voltage Rating : 600 V (1000 V in signs, lighting fixtures and luminaries)
    • Packaging : Box
    • Product Category : Electrical Connectors
    • Product Type : Connector
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Specifications Met : CSA, UL Listed
    • Voltage : 750 V
    • Wire Connector Type : Twist-on Wire Connectors
