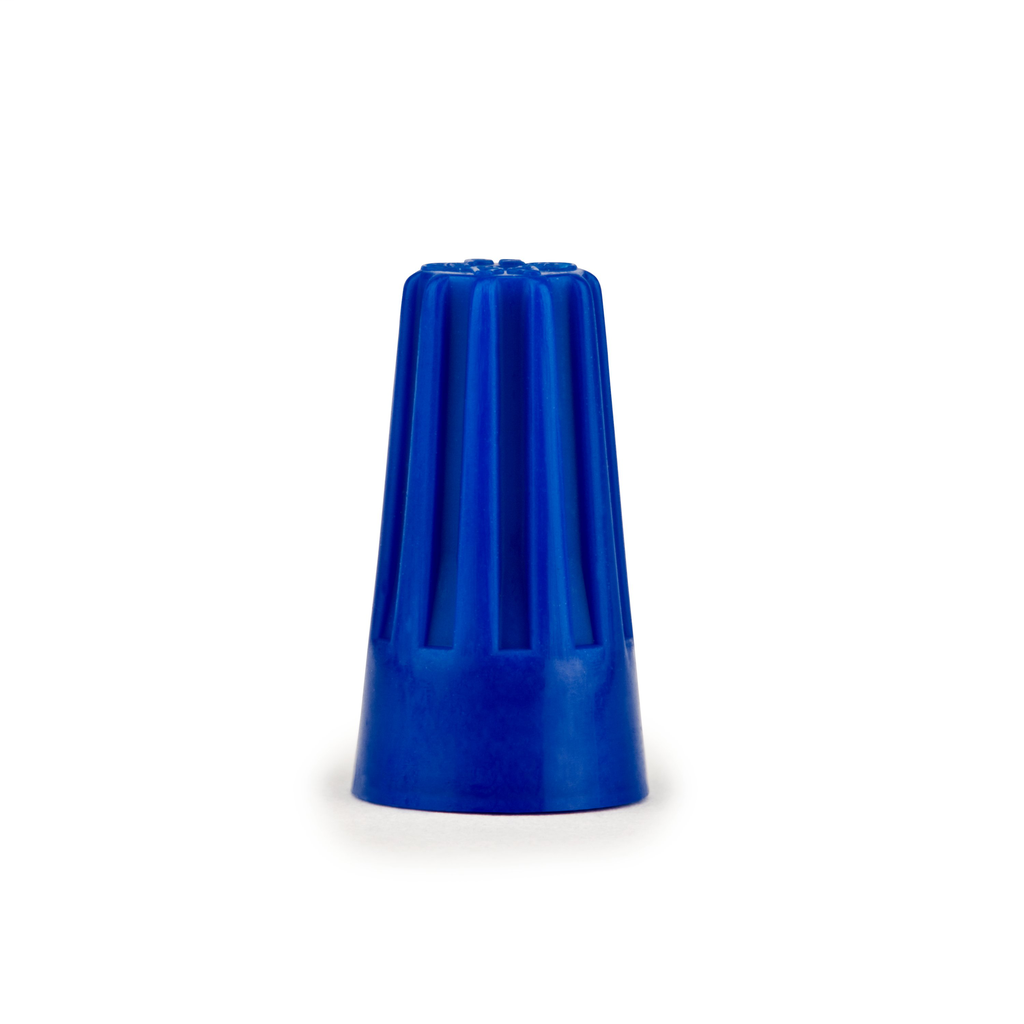

3M™ Highland™ Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221°F (105°C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.

• Features
• Used for connecting and insulating wire connections in a pigtail application
• Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
• Available in hand driver or power driver options

• Specifications
• Country of Origin : China
• ETIM Class 8.0 : EC000306
• Maximum Conductor Size (Imperial) : 16 AWG
• Maximum Conductor Size (Metric) : 1.5
• Maximum Operating Temperature (Celsius) : 105.0 Degree
• Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
• Minimum Conductor Size (Imperial) : 22 AWG
• Minimum Conductor Size (Metric) : .34 mm²
• Product Color : Blue
• Connection Type : Wire
• Connector Style : Twist On
• Flame Retardant : No
• Maximum Recommended Voltage Rating : 300.0 V
• Packaging : Pouch
• Product Type : Connector
• RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
• Wire Connector Type : Twist-on Wire Connectors
