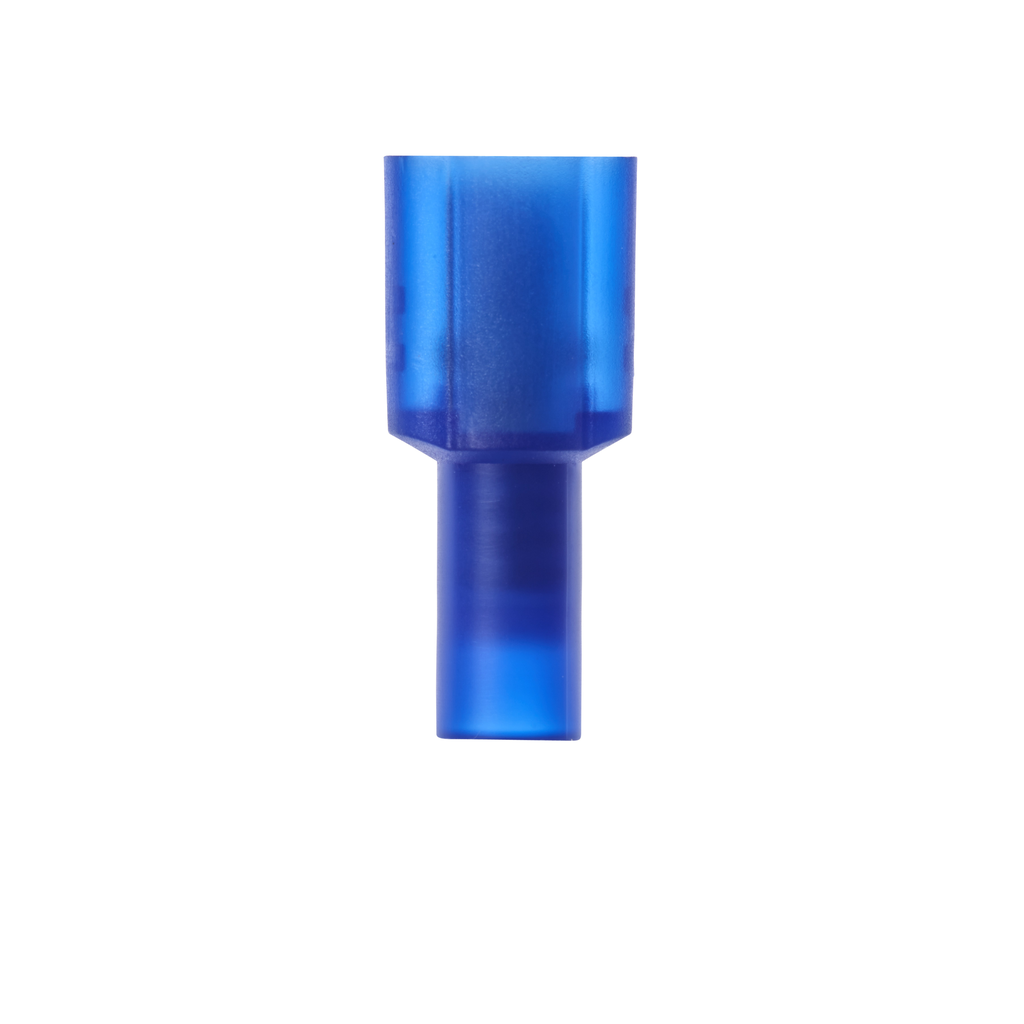

3M™ Highland™ Nylon Fully Insulated Male Disconnect Terminal MTI14-250Q, AWG 16-14, 25/bag, 10 Bags/Case

MALE DISC NYLON INS 25/BAG

MMMMTI14250Q MTI14-250Q 051128600245
12.31 / Bag
http://schema.org/OutOfStock

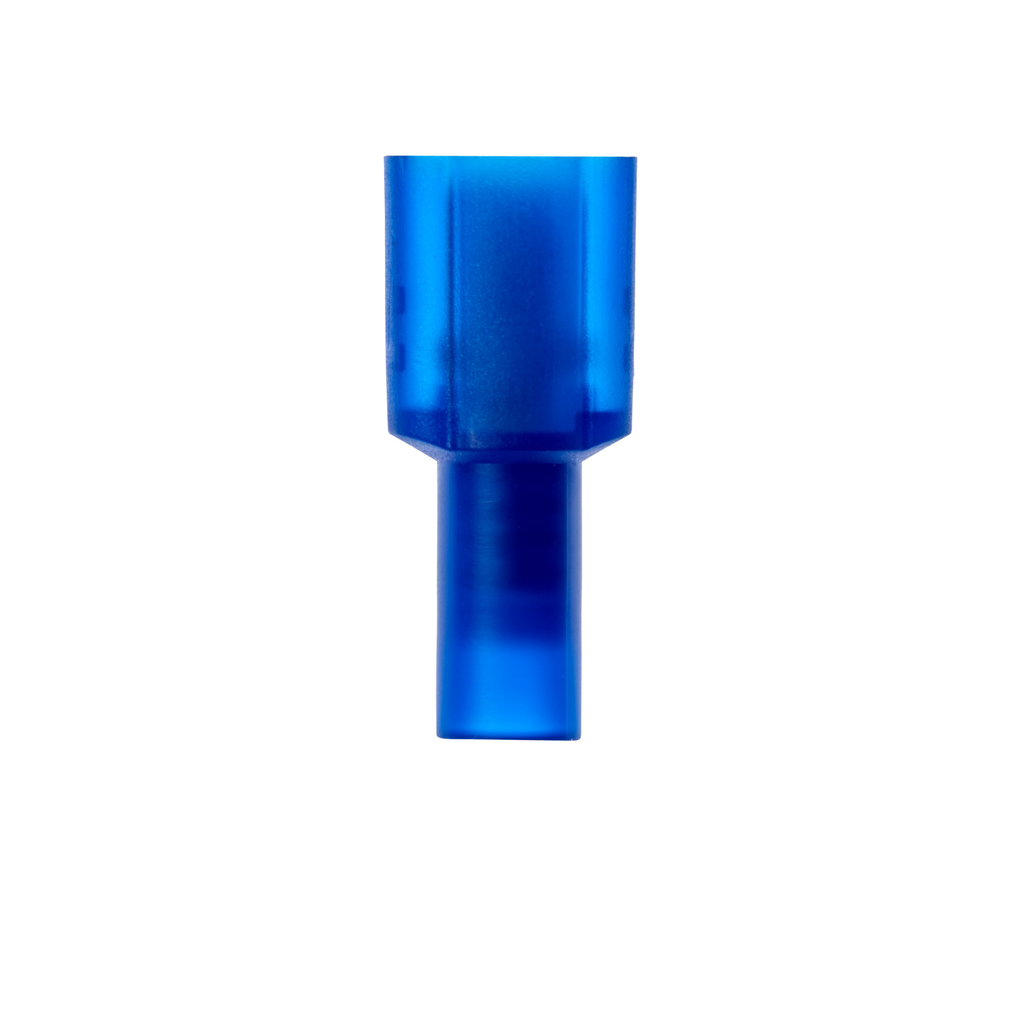

Mayer-DDS-3M™ Highland™ Nylon Fully Insulated Male Disconnect Terminal MTI14-250Q, AWG 16-14, 25/bag, 10 Bags/Case-1
  • Country of Origin: USA
  • Diameter: 0.3 in, 7.62 mm
  • Material: Plastic
  • Overall Length: 0.95 in, 24.13 mm
  • Width: 0.44 in, 11.176 mm
3M™ Highland™ Nylon Fully Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Highland™ Nylon Fully Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Features
    • Nylon-insulated, butted-seam barrel allows for easy insertion of wires
    • This male disconnect terminal offers excellent holding force
    • Allows for quick and easy disconnect of wires
  • Specifications
    • Country of Origin : United States
    • RDS URL (Regulatory Data Sheet) : https://cdmsweb.3m.com/ingredientcommunication/file/Media/SS81W50L7RI=
    • AIS URL (Article Information Sheet) : https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm8_UNx2xPv70k17zHvu9lxtD7xtBevSSSSSS-
    • Disconnect Type : Male
    • Maximum Conductor Size (Imperial) : 14 AWG
    • Maximum Conductor Size (Metric) : 2.5 mm²
    • Minimum Conductor Size (Imperial) : 16 AWG
    • Minimum Conductor Size (Metric) : 1.5 mm²
    • Terminal Type : Disconnect
    • Connection Width (Imperial) : 0.25 in
    • Connection Width (Metric) : 6.35 mm
    • Barrel Inside Diameter : 0.085 Inch
    • Barrel Length (Imperial) : 0.25 Inch
    • Barrel Length (Metric) : 6.35 mm
    • Barrel Style : Butted
    • Conductor Sizes (Imperial) : 16 - 14 AWG
    • Diameter (D) : 0.3 Inch
    • Fastener Orientation : Male
    • Insulation Material : Nylon
    • Manufacturing Origin : USA
    • Material : Plastic
    • Mates with Female Width : 0.25 Inch
    • Mates with Male Tab Width (W') : 0.25 Inch
    • Max. Number of Cores : 423.0
    • Maximum Insulation Outer Diameter (Imperial) : 0.17 in
    • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
    • Maximum Insulation Outside Diameter : 0.145 in
    • Maximum Recommended Voltage Rating : 600.0 V
    • Maximum Voltage Rating : 600 to 1000 V
    • Overall Diameter (Imperial) : 0.3 in
    • Overall Diameter (Metric) : 7.62 mm
    • Overall Length (Imperial) : 0.95 in
    • Overall Length (Metric) : 24.13 mm
    • Overall Width (Imperial) : 0.44 in
    • Overall Width (Metric) : 11.176 mm
    • Packaging : 25 per bag
    • Pad Width : 0.25
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Solution for : Wireless Network: Infrastructure Accessories
    • Tab Width : 0.250
    • Terminal Style : Fully Insulated
    • UL File Number : E70512
    • Units per Case : 10.0
    • Units per bag : 25
