StrongHold™ EDV10-250-Q Disconnect, Yellow, Vinyl 0.13"x1.03"x0.3", 12-10 AWG

FEM DISC #12-10 STRONGHOLD

PANEDV10250Q EDV10-250-Q 074983279807
0.40 / EA
http://schema.org/OutOfStock

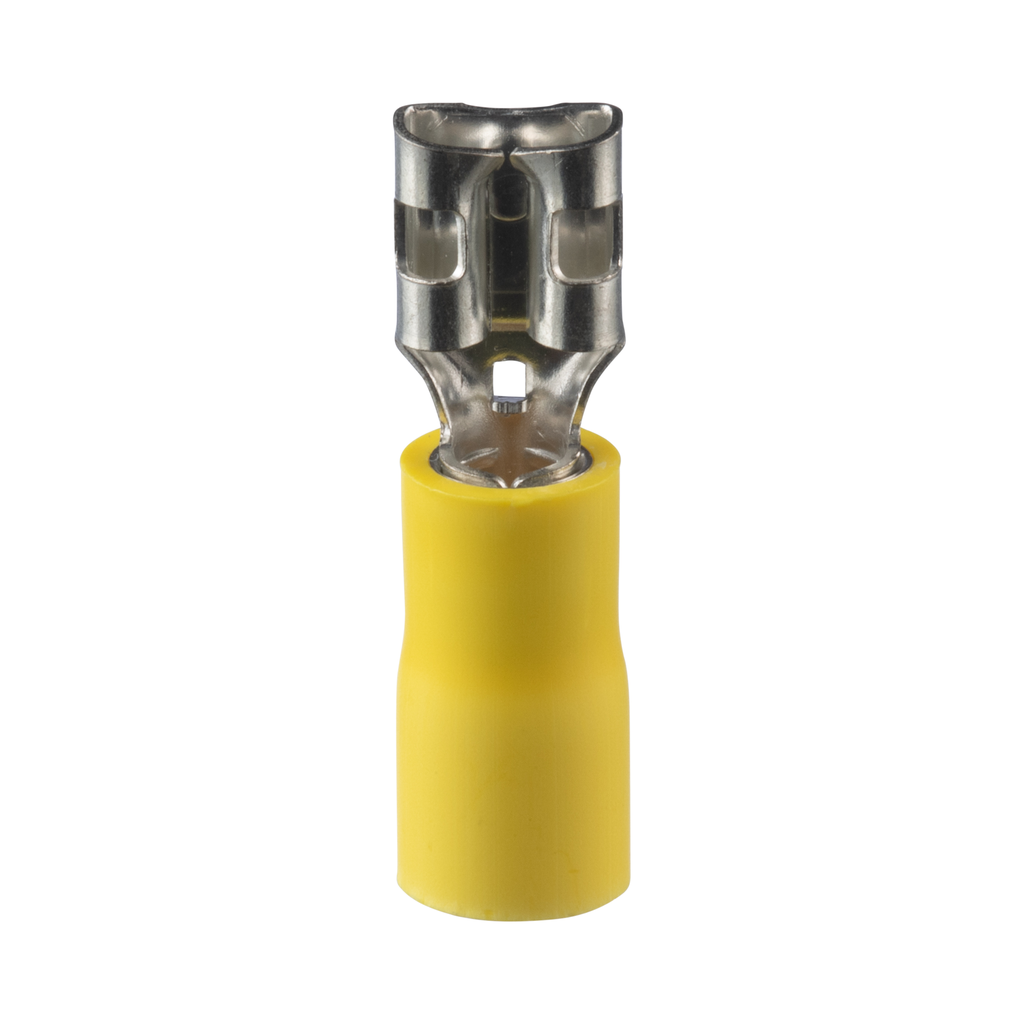

Mayer-DDS-StrongHold™ EDV10-250-Q Disconnect, Yellow, Vinyl 0.13"x1.03"x0.3", 12-10 AWG-1
  • Country of Origin: Mexico
  • Material: Brass
  • Max. Operating Temperature: 194 °F, 90 °C
  • Overall Length: 1.03 in, 26.2 mm
  • Type: Disconnect
  • Width: 0.3 in, 7.6 mm
StrongHold EDV10-250M-Q Contractor Grade Vinyl Insulated Female Disconnects are a reliable and economical option that withstand a wide range of general-purpose applications. They can be easily inserted and removed from the male disconnect without the use of tools. Accommodates 12-10 AWG, 250 x .032 tab size, are yellow in color, and come in packages of 25.
QTY
  • Product Description
  • Specifications
StrongHold EDV10-250M-Q Contractor Grade Vinyl Insulated Female Disconnects are a reliable and economical option that withstand a wide range of general-purpose applications. They can be easily inserted and removed from the male disconnect without the use of tools. Accommodates 12-10 AWG, 250 x .032 tab size, are yellow in color, and come in packages of 25.
  • Specifications
    • Product Segment : IEI
    • Disconnect Type : Female Disconnect
    • Insulation Material : Vinyl - Barrel Insulated
    • Insulation Type : Vinyl - Barrel Insulated
    • Maximum Copper Conductor Size (AWG) : #10
    • Minimum Copper Conductor Size (AWG) : #12
    • Maximum Wire Size (AWG) : 10
    • Minimum Wire Size (AWG) : #12
    • Wire Strip Length (mm) : 7.1
    • Wire Strip Length (In.) : 0.28
    • Tab Size (In.) : 0.25
    • Tab Size (mm) : 6.3
    • Standards Met : UL Recognized, CSA, cULus, E78522, LR31212
    • Maximum Voltage (V) : 600
    • Base Material : Brass
    • Finish/Coating : Tin-Plated
    • Color Code : Yellow
    • Barrel Type : Grip Sleeve
    • Maximum Operating Temperature (°F) : 194
    • Maximum Operating Temperature (°C) : 90
    • Sub Brand : StrongHold™
    • Maximum Metric Conductor Size (mm²) : 6
    • Minimum Metric Conductor Size (mm²) : 4
    • Maximum Wire Insulation Diameter (In.) : 0.23
    • Maximum Wire Insulation Diameter (mm) : 5.8
    • Overall Length (In.) : 1.03
    • Overall Length (mm) : 26.2
    • Overall Width (In.) : 0.3
    • Overall Width (mm) : 7.6
    • Seam Type : Butted
    • Packaging Type : Loose Piece
    • Product Type : Disconnect
    • For Use With : CT-600-A, CT-1550, CT-1551, CT-2300/ST, CT-2500/L
    • Maximum Voltage (kV) : 0.6
  • Packaging Details
    • UPC : 07498327980
    • GTIN Package : 00074983279807
    • Standard Package Volume Ft3 : 0.0103
    • Standard Package Weight Pounds : 0.0500
    • Std Package Height In : .8
    • Std Package Height MM : 20.32
    • Std Package Length In : 4.6
    • Std Package Length MM : 116.84
    • Std Package Width In : 3
    • Std Package Width MM : 76.2
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 25
    • GTIN Carton : 50074983279802
    • Standard Carton Volume Ft3 : 0.1031
    • Standard Carton Weight Pounds : 0.5000
    • Std Carton Height In : 4.35
    • Std Carton Height MM : 110.49
    • Std Carton Length In : 9.05
    • Std Carton Length MM : 229.87
    • Std Carton Width In : 4.35
    • Std Carton Width MM : 110.49
    • Std Ctn Qty : 250
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983279807
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 250.0000
