3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 50/bottle, MVI10-250DFX, 500/Case

3M MVI10-250DFX VINYL INS BUTT

MMMMVI10250DFX MVI10-250DFX 051128589366
1.61 / Each
http://schema.org/OutOfStock
Mayer-DDS-3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 50/bottle, MVI10-250DFX, 500/Case-1
  • Country of Origin: USA
  • Diameter: 0.23 in
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Overall Length: 0.95 in, 24.13 mm
  • Width: 0.37 in

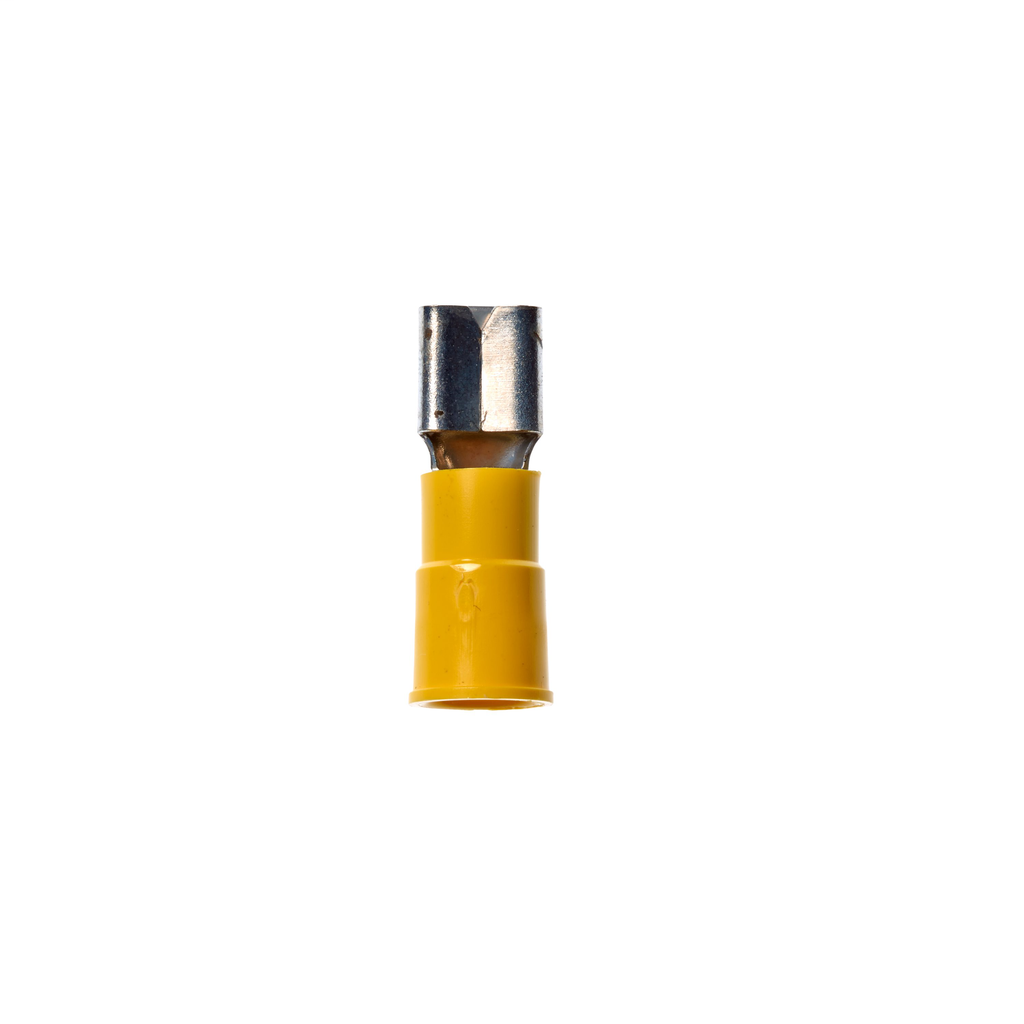

If you're looking for a disconnect terminal you can count on, try the 3M Scotchlok Color-Coded Standard Female Disconnect Terminal. This rugged brass terminal features dents and rolled edges for excellent strength, and a tin-plated, corrosion-resistant finish. The yellow terminal also offers great conductivity and can withstand temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
QTY
  • Product Description
  • Features
  • Specifications
If you're looking for a disconnect terminal you can count on, try the 3M Scotchlok Color-Coded Standard Female Disconnect Terminal. This rugged brass terminal features dents and rolled edges for excellent strength, and a tin-plated, corrosion-resistant finish. The yellow terminal also offers great conductivity and can withstand temperatures of -40 to 221 degrees F (-40 to 105 degrees C).
  • Features
    • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Dents and rolled edges of this female disconnect terminal offer excellent holding force
    • Allows for quick and easy disconnect of wires
    • Mates with 0.25-in wide male tab
    • Made of durable brass for good conductivity and has corrosion-resistant tin plating
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Specifications
    • Country of Origin : United States
    • Disconnect Type : Female
    • Maximum Conductor Size (Imperial) : 10 AWG
    • Maximum Conductor Size (Metric) : 6 mm²
    • Minimum Conductor Size (Imperial) : 12 AWG
    • Minimum Conductor Size (Metric) : 4 mm²
    • Terminal Type : Disconnect
    • Connection Width (Imperial) : 0.25 in
    • Connection Width (Metric) : 6.35 mm
    • Barrel Inside Diameter : 0.128 Inch
    • Barrel Length (Imperial) : 0.25 Inch
    • Barrel Style : Interlocking Barrel
    • Conductor Sizes (Imperial) : 12 - 10 AWG
    • Connection Type : Wire
    • Connector / Connector Tool : Connector
    • Connector Style : Insulation Displacement
    • Diameter (D) : 0.23 Inch
    • Fastener Orientation : Female
    • Flame Retardant : No
    • Fork Type : Standard Fork
    • Grease Filling Against Corrosion : No
    • Insulation Color : Yellow
    • Insulation Material : Vinyl
    • Interrupt Free Shifting : No
    • Manufacturing Origin : USA
    • Material : ETP Copper
    • Mates with Female Width : 0.250 Inch
    • Mates with Male Tab Width (W') : 0.25 Inch
    • Maximum Insulation Outer Diameter (Imperial) : 0.25 in
    • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
    • Maximum Insulation Outside Diameter : 0.145 in
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Maximum Recommended Voltage Rating : 600.0 V
    • Overall Diameter (Imperial) : 0.23 in
    • Overall Length (Imperial) : 0.95 in
    • Overall Length (Metric) : 24.13 mm
    • Overall Width (Imperial) : 0.37 in
    • Packaging : 50 per bottle
    • Pad Width : 0.25
    • Product Color : Yellow
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Solution for : Wireless Network: Infrastructure Accessories
    • Terminal Style : Standard
    • UL File Number : E70512
    • Units per Case : 500.0
