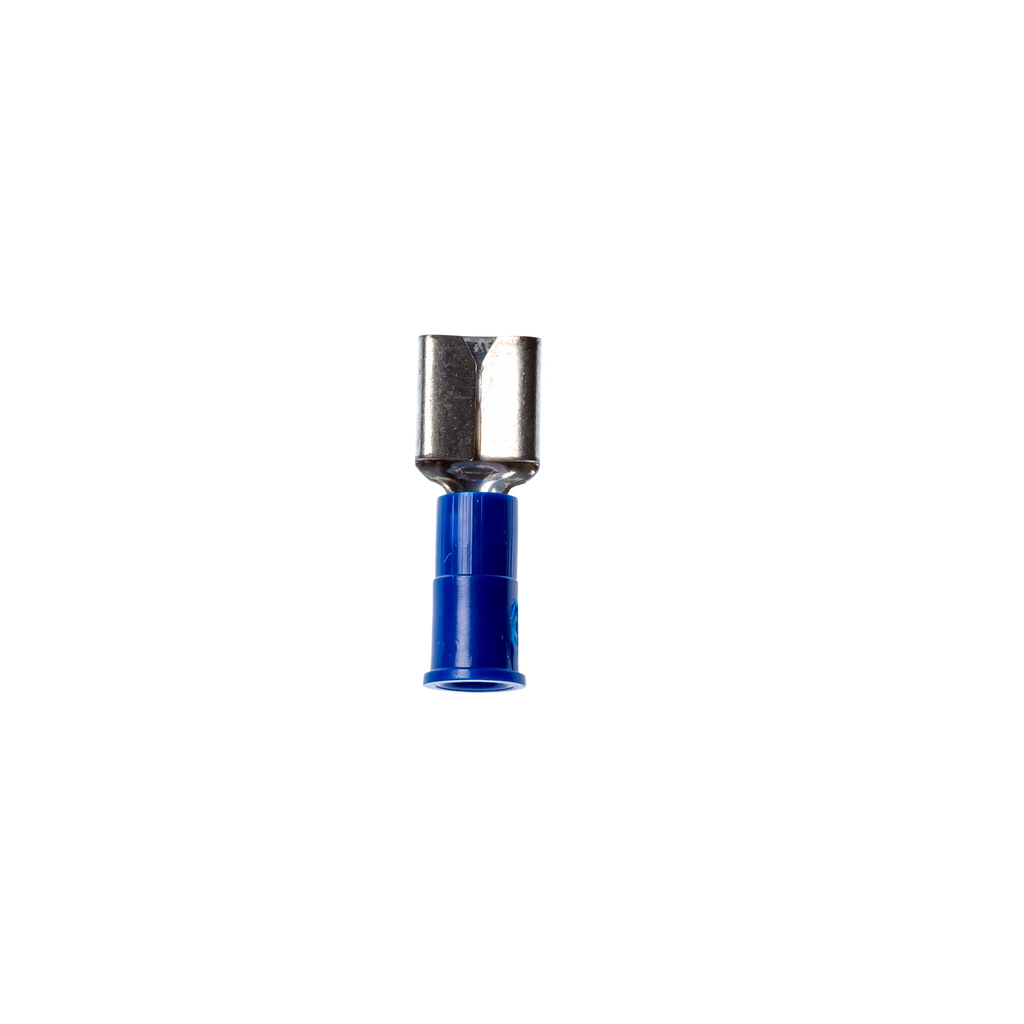

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case

3M MVU14-250DFX VINYL INSULATE

MMMMVU14250DFX MVU14-250DFX 051128586716
1.23 / Each
http://schema.org/OutOfStock
Mayer-DDS-3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case-2
  • Country of Origin: USA
  • Diameter: 0.23 in
  • Max. Operating Temperature: 105.0 °C, 221.0 °F
  • Overall Length: 0.87 in, 22.09 mm
  • Width: 0.37 in
3M™ Scotchlok™ Female Disconnect Vinyl Insulated is used for electrical and mechanical use. The disconnects meet Underwriters Laboratories Standard No. UL 486C (3M File No. E70512) and Canadian Standards Association Standard NO. 22.2 NO. 0, 65 (3M File No. LR22190). The female disconnects are also UL Listed and CSA Certified for use on stranded copper (AWG) wire only. They’re used for factory installation on steel or brass tabs (UL and CSA), and they’re used for field application on brass tabs (UL only), though strain relief is required. The female disconnects connect permanently to the pre-stripped ends of stranded copper wires. The vinyl-insulated disconnects are used for field and factory wiring applications (UL recognized strain relief is required). For field or factory wiring applications, you can depend on the 3M™ Scotchlok™ Female Disconnect Insulated.
QTY
  • Product Description
  • Features
  • Specifications
3M™ Scotchlok™ Female Disconnect Vinyl Insulated is used for electrical and mechanical use. The disconnects meet Underwriters Laboratories Standard No. UL 486C (3M File No. E70512) and Canadian Standards Association Standard NO. 22.2 NO. 0, 65 (3M File No. LR22190). The female disconnects are also UL Listed and CSA Certified for use on stranded copper (AWG) wire only. They’re used for factory installation on steel or brass tabs (UL and CSA), and they’re used for field application on brass tabs (UL only), though strain relief is required. The female disconnects connect permanently to the pre-stripped ends of stranded copper wires. The vinyl-insulated disconnects are used for field and factory wiring applications (UL recognized strain relief is required). For field or factory wiring applications, you can depend on the 3M™ Scotchlok™ Female Disconnect Insulated.
  • Features
    • CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
    • STEEL OR BRASS: Used for factory installations on steel or brass tabs
    • FIELD APPLICATION: Used for field application on brass tabs, strain relief is required (UL only)
    • ELECTRICAL AND MECHANICAL USE: Built for electrical and mechanical use
    • RELIABLE CONNECTION: Connects permanently to a pre-stripped end of stranded copper wire
    • COMPATIBLE: Used for field or factory wiring, with a UL recognized strain relief required
  • Specifications
    • Country of Origin : United States
    • Disconnect Type : Female
    • Maximum Conductor Size (Imperial) : 16 AWG
    • Maximum Conductor Size (Metric) : 1.5 mm²
    • Minimum Conductor Size (Imperial) : 14 AWG
    • Minimum Conductor Size (Metric) : 2.5 mm²
    • Terminal Type : Disconnect
    • Connection Width (Imperial) : 0.25 in
    • Connection Width (Metric) : 6.35 mm
    • Barrel Inside Diameter : 0.080 Inch
    • Barrel Length (Imperial) : 0.25 Inch
    • Barrel Style : Butted
    • Conductor Sizes (Imperial) : 16 - 14 AWG
    • Connection Type : Wire
    • Connector / Connector Tool : Connector
    • Connector Style : Insulation Displacement
    • Diameter (D) : 0.23 Inch
    • Fastener Orientation : Female
    • Flame Retardant : No
    • Grease Filling Against Corrosion : No
    • Insulation Color : Blue
    • Insulation Material : Vinyl
    • Interrupt Free Shifting : No
    • Manufacturing Origin : USA
    • Material : ETP Copper
    • Mates with Female Width : 0.250 Inch
    • Mates with Male Tab Width (W') : 0.25 Inch
    • Maximum Insulation Outer Diameter (Imperial) : 0.145 in
    • Maximum Insulation Outer Diameter (Metric) : 3.7 mm
    • Maximum Insulation Outside Diameter : 0.145 in
    • Maximum Operating Temperature (Celsius) : 105.0 Degree
    • Maximum Operating Temperature (Fahrenheit) : 221.0 Degree
    • Maximum Recommended Voltage Rating : 600.0 V
    • Overall Diameter (Imperial) : 0.23 in
    • Overall Length (Imperial) : 0.87 in
    • Overall Length (Metric) : 22.09 mm
    • Overall Width (Imperial) : 0.37 in
    • Packaging : 100 per bottle
    • Pad Width : 0.25
    • Product Color : Blue
    • RoHS EU Comments : RoHS 2011/65/EU compliant without exemption
    • Solution for : Wireless Network: Infrastructure Accessories
    • Tab Width : 0.250
    • Terminal Style : Standard
    • UL File Number : E70512
    • Units per Case : 500.0
