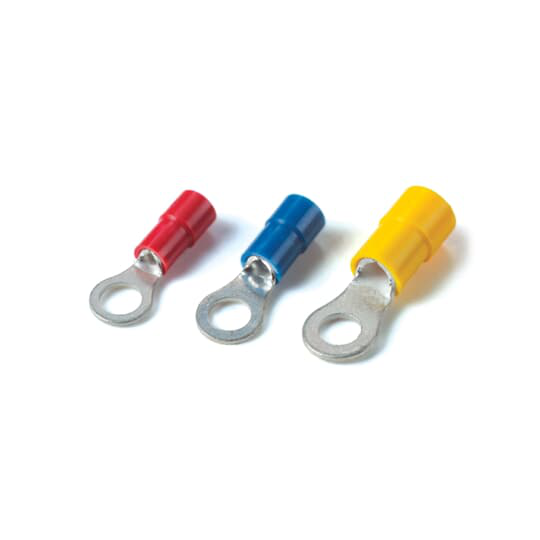

VINYL INSULATED RING TERMINALS

RING TERM #12-10 1/4STUD

TNBTV1014RXV TV10-14R-XV 728494144146
0.50 / CASE
http://schema.org/OutOfStock
Mayer-DDS-VINYL INSULATED RING TERMINALS-1
Vinyl Insulated Ring Terminal, Length 1.088 Inches, Width .500 Inches, Maximum Insulation .210, Bolt Size 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
QTY
  • Product Description
  • Specifications
Vinyl Insulated Ring Terminal, Length 1.088 Inches, Width .500 Inches, Maximum Insulation .210, Bolt Size 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
  • Additional Information
    • Brand / Label : Sta-Kon
    • Color : Yellow
    • Effective Date : 20090209
    • Material : Copper
    • Product Name : ELECTRICAL TERMINAL,<1000V
    • Product Type : Vinyl Insulated Ring Terminal
    • Special Functions : Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations.
    • Standards : UL E9809
    • Sub Brand / Label : Catamount
    • Voltage Rating : 600 V
    • Wire Size : 12-10 AWG
  • Classifications
    • WEEE Category : Product Not in WEEE Scope
    • IDEA Granular Category Code (IGCC) : 4603 >> Electrical terminals
  • Ordering
    • Country of Origin : Taiwan, Province Of China (TW)
    • Selling Unit of Measure : each
