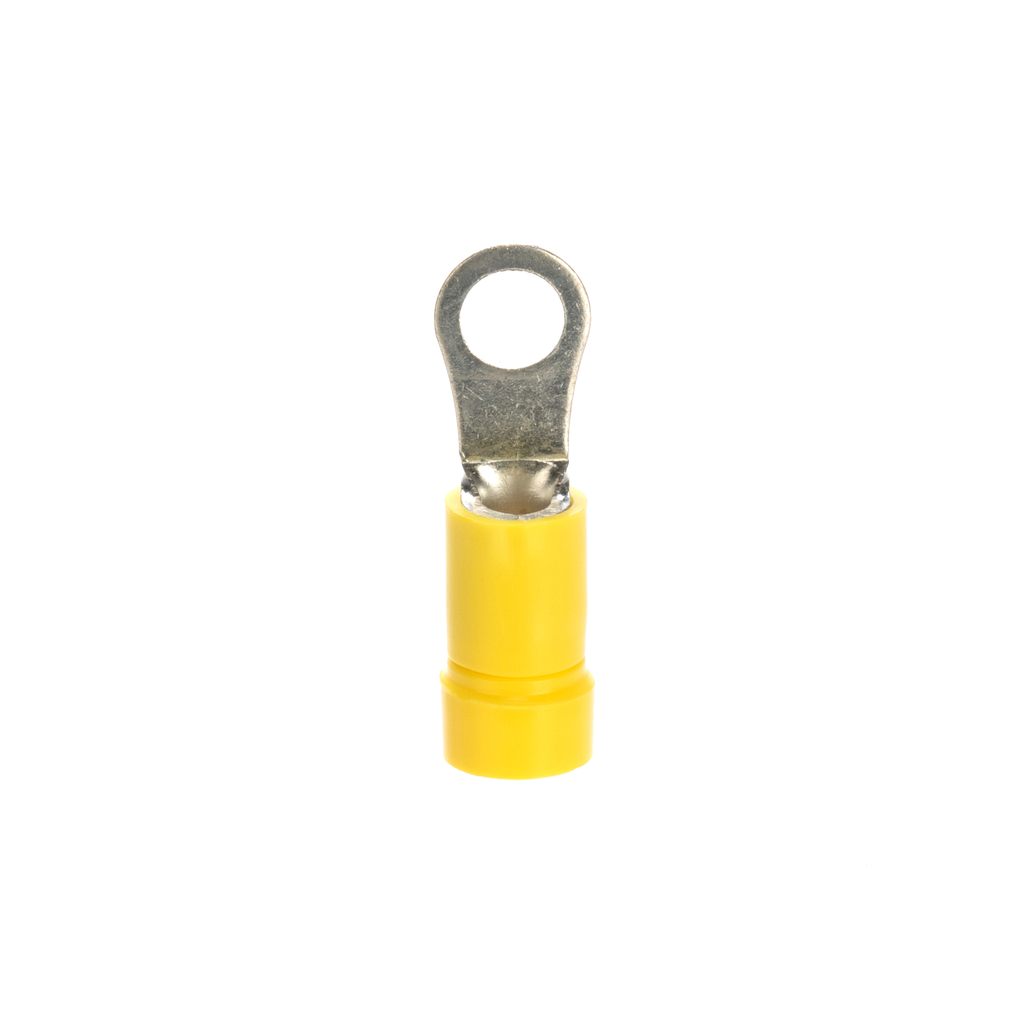

Pan-Term® PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50

RING TERM #12-10 #10STUD

PANPV1010RL PV10-10R-L 74983801329
1.37 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 1.05 in, 26.7 mm
  • Tongue Thickness: 0.04 in, 1 mm
  • Tongue Width: 0.31 in, 7.9 mm
  • Type: Ring Terminal
  • Width: 0.31 in, 7.9 mm
The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
QTY
  • Product Description
  • Features
  • Specifications
The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
  • Prop 65
    • No
  • Packaging Details
    • UPC : 07498380132
    • GTIN Package : 00074983801329
    • Standard Package Volume Ft3 : 0.0037
    • Standard Package Weight Pounds : 0.2400
    • Std Package Height In : 1.75
    • Std Package Height MM : 44.45
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.8
    • Std Package Width MM : 45.72
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 50
    • GTIN Carton : 50074983801324
    • Standard Carton Volume Ft3 : 0.0368
    • Standard Carton Weight Pounds : 2.4000
    • Std Carton Height In : 3.65
    • Std Carton Height MM : 92.71
    • Std Carton Length In : 9.55
    • Std Carton Length MM : 242.57
    • Std Carton Width In : 3.85
    • Std Carton Width MM : 97.79
    • Std Ctn Qty : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983801329
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 250.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Maximum Voltage (V) : 600
    • Wire Strip Length (mm) : 7.9
    • Maximum Metric Conductor Size (mm²) : 6
    • Maximum Operating Temperature (°F) : 221
    • Maximum Voltage (kV) : 0.6
    • Tongue Thickness (mm) : 1
    • Stud Size : #10
    • Wire Strip Length (In.) : 5/16
    • Seam Type : Brazed
    • Finish/Coating : Tin-Plated
    • Stud Hole Size (In.) : #10
    • Sub Brand : Pan-Term®
    • Tongue Width (In.) : 0.31
    • Maximum Copper Conductor Size (AWG) : 10
    • Stud Hole Size (mm) : 5
    • Minimum Metric Conductor Size (mm²) : 4
    • Overall Width (mm) : 7.9
    • Maximum Wire Size (AWG) : 10
    • Packaging Type : Bottle
    • Flammability Rating : UL94V-0
    • Overall Length (mm) : 26.7
    • Color Code : Yellow
    • Tongue Thickness (In.) : 0.04
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Base Material : Copper
    • Barrel Type : Funnel Entry
    • Maximum Wire Insulation Diameter (In.) : 0.23
    • Maximum Wire Insulation Diameter (mm) : 5.8
    • Overall Width (In.) : 0.31
    • Minimum Wire Size (AWG) : #12
    • Insulation Material : Vinyl
    • Tongue Width (mm) : 7.9
    • Product Type : Ring Terminal
    • Minimum Copper Conductor Size (AWG) : #12
    • Maximum Operating Temperature (°C) : 105
    • Overall Length (In.) : 1.05
