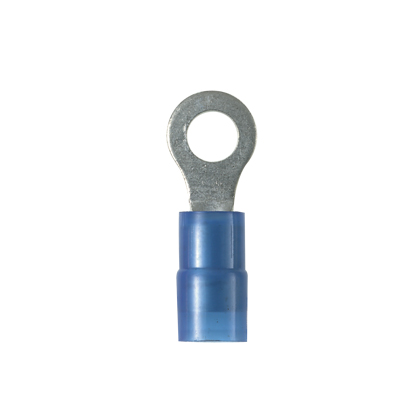

Pan-Term® PN14-6R-C Ring Terminal, Blue, Nylon, 14-18 AWG, #6 Stud, PK100

RING TERM #18-14 #6STUD

PANPN146RC PN14-6R-C 074983800162
1.58 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PN14-6R-C Ring Terminal, Blue, Nylon, 14-18 AWG, #6 Stud, PK100-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.85 in, 21.6 mm
  • Tongue Thickness: 0.03 in, 0.8 mm
  • Tongue Width: 0.31 in, 7.9 mm
  • Type: Ring Terminal
  • Width: 0.31 in, 7.9 mm
The PN14-6R-C Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PN14-6R-C Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-107)
  • Packaging Details
    • UPC : 07498380016
    • GTIN Package : 00074983800162
    • Standard Package Volume Ft3 : 0.0074
    • Standard Package Weight Pounds : 0.3000
    • Std Package Height In : 1.8
    • Std Package Height MM : 45.72
    • Std Package Length In : 3.6
    • Std Package Length MM : 91.44
    • Std Package Width In : 1.8
    • Std Package Width MM : 45.72
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 100
    • GTIN Carton : 50074983800167
    • Standard Carton Volume Ft3 : 0.0368
    • Standard Carton Weight Pounds : 1.5000
    • Std Carton Height In : 3.6
    • Std Carton Height MM : 91.44
    • Std Carton Length In : 9.3
    • Std Carton Length MM : 236.22
    • Std Carton Width In : 1.95
    • Std Carton Width MM : 49.53
    • Std Ctn Qty : 500
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983800162
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 100.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Minimum Copper Conductor Size (AWG) : #18
    • Tongue Thickness (mm) : 0.8
    • Product Type : Ring Terminal
    • Maximum Metric Conductor Size (mm²) : 2.5
    • Overall Width (mm) : 7.9
    • Maximum Operating Temperature (°F) : 221
    • Maximum Copper Conductor Size (AWG) : 14
    • Tongue Thickness (In.) : 0.03
    • Maximum Wire Insulation Diameter (In.) : 0.16
    • Maximum Wire Size (AWG) : 14
    • Packaging Type : Bottle
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Maximum Voltage (V) : 600
    • Base Material : Copper
    • Maximum Wire Insulation Diameter (mm) : 4.1
    • Sub Brand : Pan-Term®
    • Wire Strip Length (mm) : 5.6
    • Barrel Type : Grip Sleeve
    • Flammability Rating : UL94-HB
    • Insulation Material : Nylon
    • Wire Strip Length (In.) : 7/32
    • Maximum Operating Temperature (°C) : 105
    • Stud Hole Size (In.) : #6
    • Color Code : Blue
    • Minimum Wire Size (AWG) : #18
    • Overall Length (In.) : 0.85
    • Stud Size : #6
    • Overall Width (In.) : 0.31
    • Overall Length (mm) : 21.6
    • Maximum Voltage (kV) : 0.6
    • Tongue Width (In.) : 0.31
    • Minimum Metric Conductor Size (mm²) : 1
    • Stud Hole Size (mm) : 3.5
    • Finish/Coating : Tin-Plated
    • Tongue Width (mm) : 7.9
