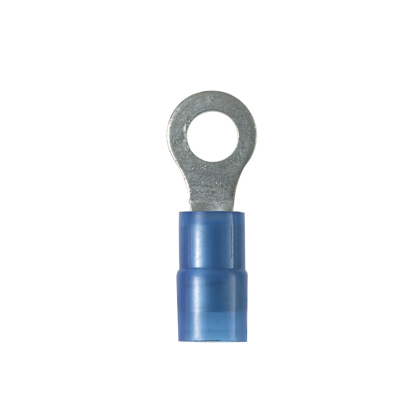

Pan-Term® PN14-10R-M Ring Terminal, Blue, Nylon, 14-18 AWG, #10 Stud, PK1000

RING TERM #18-14 #10STUD

PANPN1410RM PN14-10R-M 074983800216
0.46 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Term® PN14-10R-M Ring Terminal, Blue, Nylon, 14-18 AWG, #10 Stud, PK1000-1
  • Country of Origin: Mexico
  • Material: Copper
  • Max. Operating Temperature: 105 °C, 221 °F
  • Overall Length: 0.85 in, 21.6 mm
  • Tongue Thickness: 0.03 in, 0.8 mm
  • Tongue Width: 0.31 in, 7.9 mm
  • Type: Ring Terminal
  • Width: 0.31 in, 7.9 mm
The PN14-10R-M Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
QTY
  • Product Description
  • Features
  • Specifications
The PN14-10R-M Pan-Term® Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
  • Standards and Certifications
    • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-108)
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Maximum Metric Conductor Size (mm²) : 2.5
    • Maximum Operating Temperature (°C) : 105
    • Flammability Rating : UL94-HB
    • Maximum Voltage (kV) : 0.6
    • Maximum Wire Insulation Diameter (mm) : 4.1
    • Stud Hole Size (mm) : 5
    • Overall Length (mm) : 21.6
    • Minimum Wire Size (AWG) : #18
    • Maximum Operating Temperature (°F) : 221
    • Stud Size : #10
    • Barrel Type : Grip Sleeve
    • Wire Strip Length (In.) : 7/32
    • For Use With : CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
    • Finish/Coating : Tin-Plated
    • Tongue Thickness (In.) : 0.03
    • Insulation Material : Nylon
    • Maximum Voltage (V) : 600
    • Maximum Wire Insulation Diameter (In.) : 0.16
    • Tongue Thickness (mm) : 0.8
    • Minimum Copper Conductor Size (AWG) : #18
    • Overall Width (mm) : 7.9
    • Wire Strip Length (mm) : 5.6
    • Overall Length (In.) : 0.85
    • Maximum Wire Size (AWG) : 14
    • Color Code : Blue
    • Maximum Copper Conductor Size (AWG) : 14
    • Base Material : Copper
    • Product Type : Ring Terminal
    • Sub Brand : Pan-Term®
    • Packaging Type : Box
    • Tongue Width (In.) : 0.31
    • Overall Width (In.) : 0.31
    • Minimum Metric Conductor Size (mm²) : 1
    • Stud Hole Size (In.) : #10
    • Tongue Width (mm) : 7.9
  • Packaging Details
    • UPC : 07498380021
    • GTIN Package : 00074983800216
    • Standard Package Volume Ft3 : 0.1514
    • Standard Package Weight Pounds : 2.3000
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 7.15
    • Std Package Length MM : 181.61
    • Std Package Width In : 3.4
    • Std Package Width MM : 86.36
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 1000
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983800216
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1,000.0000
    • Pallet Quantity : 441,000
    • Pallet Volume : 0.000000
    • Pallet Weight : 1,014.3000
    • RoHS Compliant : Compliant
